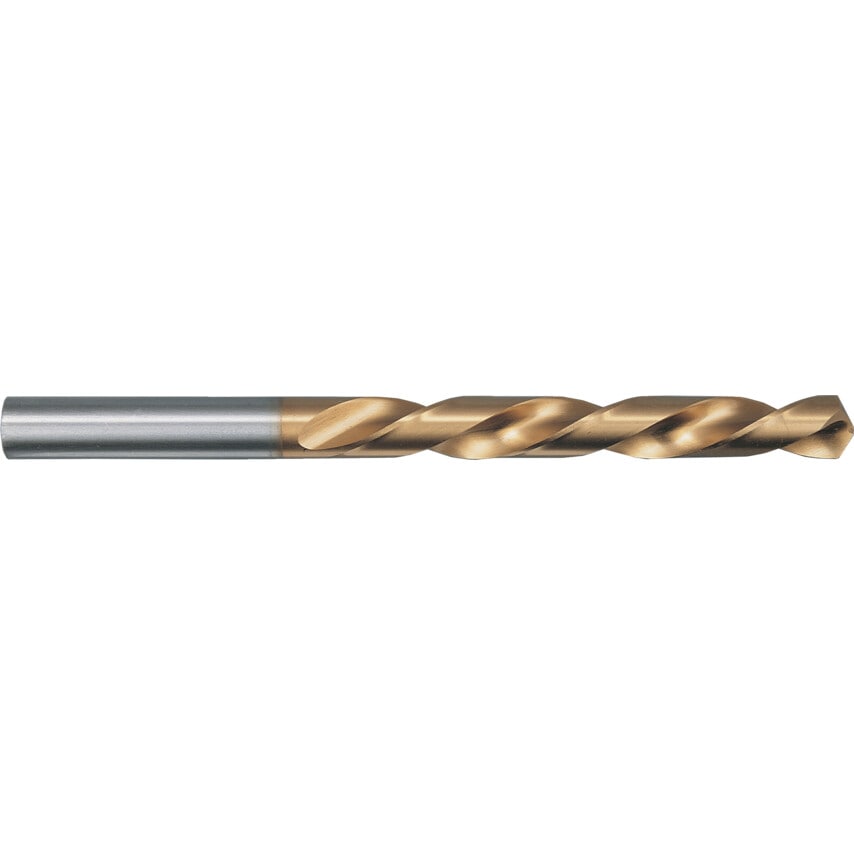

Series 651 HSS straight shank jobber drills metric TiN coated drills. For drilling steel and cast steel, alloyed and unalloyed grey cast iron, spheroidal iron, sintered powder metal, German silver and graphite.
Features and Benefits
High speed steel for improved rigidity
TiN coating for improved heat and wear resistance
Standards
Manufactured to BS 328, DIN338RN
| Shank Type | Straight |
| Finish/Coating | TiN |
| Flute Construction | Ground flutes |
| Drill Diameter | 8.3mm |
| Material | HSS |
| Flute Length | 75mm |
| Helix Type | Low Helix |
| Number of Flutes | 2 |
| Coolant Delivery | External |
| Point Angle | 118\u00b0 |
| Size | 8.3mm |
| Overall Length | 117mm |
| Standards Met | DIN 338 |
| Drill Diameter Metric | 8.3mm |
| Product Type | Jobber Drills |
| Drill Diameter Tolerance | H8 |
| Series | 651 |
| Flute Type | Spiral |
| Point Type | Conventional |
| Cutting Direction | Right Hand |
| MFR Part No. | 00651 008.300 |
