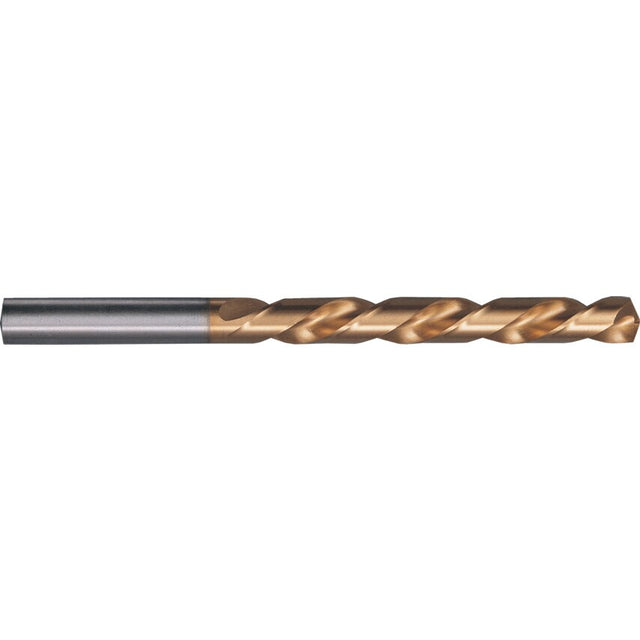

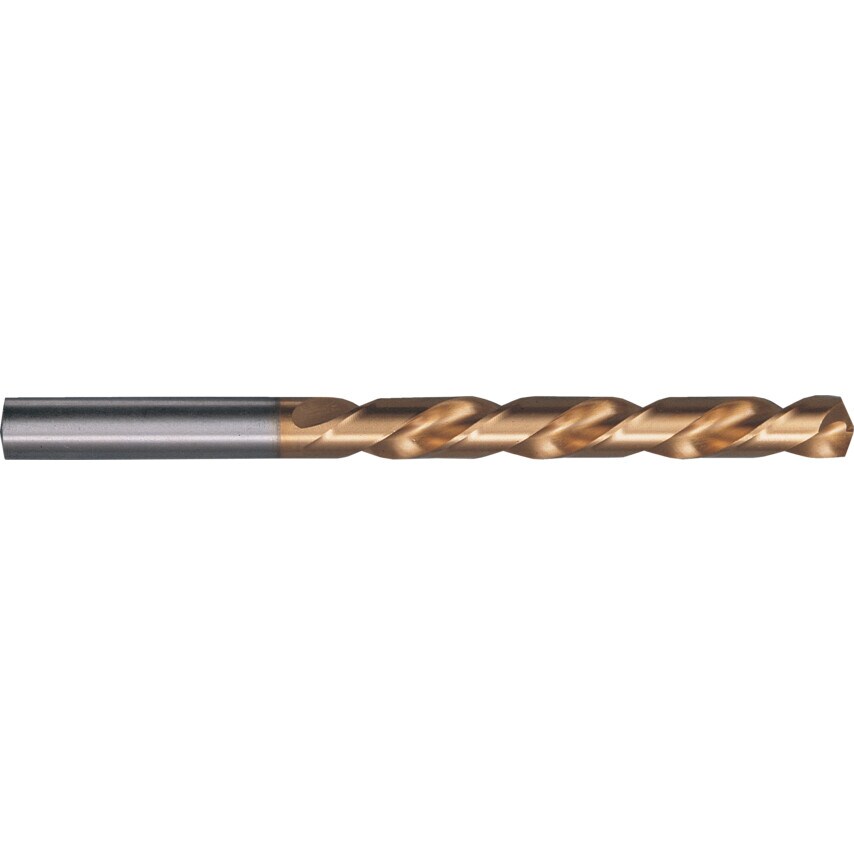

Series 657 HSS-Co Straight Shank Jobber Drills
TiN Coated - Metric
Rigid, high heat resistant drill with large helix angle of 35. Suited for titanium and titanium alloys, stainless steels and heat resisting austenitic steels. TiN coated gives greater wear resistance and longer tool life. Limited suitability for special alloys such as Hastelloy, Inconel, Nimonic etc. Manufactured to DIN338.
| Finish/Coating | TiN |
| Flute Length | 18mm |
| Number of Flutes | 2 |
| Coolant Delivery | External |
| Drill Diameter Metric | 1.4mm |
| MFR Part No. | 00657 001.400 |
| Cutting Direction | Right Hand |
| Product Type | Jobber Drills |
| Flute Construction | Ground flutes |
| Standards Met | DIN338 |
| Helix Type | Normal Helix |
| Drill Diameter | 1.4mm |
| Type | HSS-Co (TYPE-Ti) |
| Point Angle | 130\u00b0 |
| Shank Type | Straight |
| Series | 657 |
| Diameter | 1.4mm |
| Point Type | Split Point |
| Overall Length | 40mm |
| Material | Cobalt High Speed Steel |
