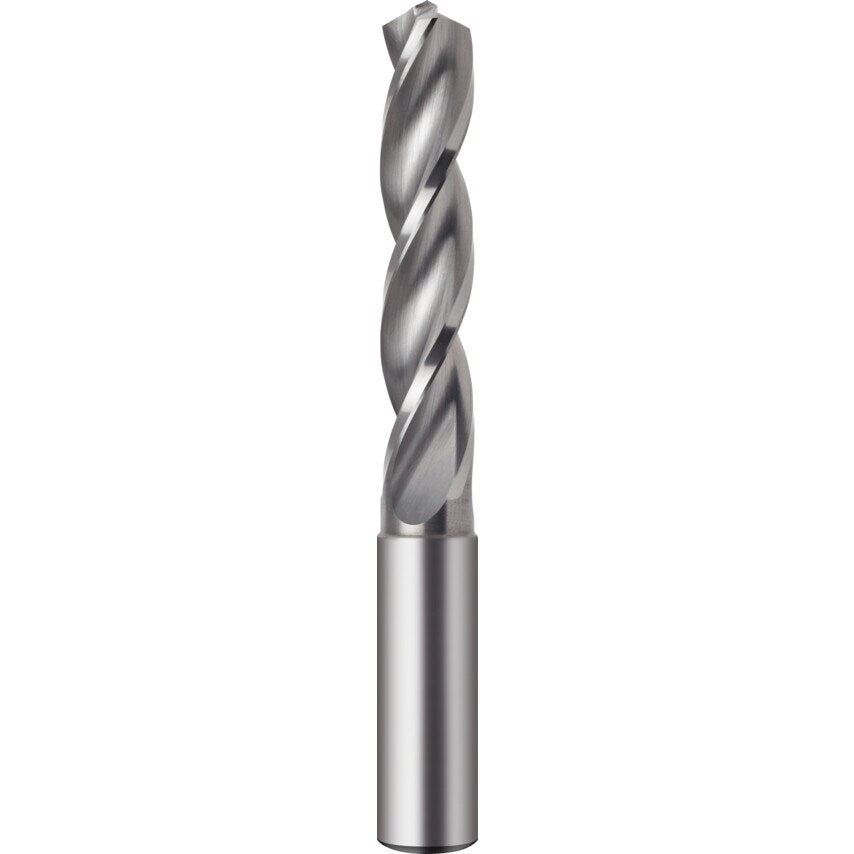

Series 5518 Carbide 3 Flute High Precision Straight Shank Drill
For use on general steels/brass,cast iron,aluminium and alloys. Suitable for interrupted cutting
Features
Metric sizes 3.00mm to 20.00mm
Bright finish
5xD
130 point
Self-centering
Reinforced straight shank
Web thinning >3.00mm
Optimal centering
| Size | 8.5mm |
| Series | 5518 |
| Flute Length | 61mm |
| Number of Flutes | 3 |
| Coolant Delivery | External |
| Flute Type | Spiral |
| Helix Type | Normal Helix |
| Drill Diameter Metric | 8.5mm |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Drill Diameter | 8.5mm |
| Overall Length | 103mm |
| MFR Part No. | 05518 008.500 |
| Drill Diameter Tolerance | M7 |
| Shank Type | Straight |
| Point Angle | 130\u00b0 |
| Finish/Coating | Bright |
| Standards Met | DIN 6537L |
| Product Type | Straight Shank Drill |
