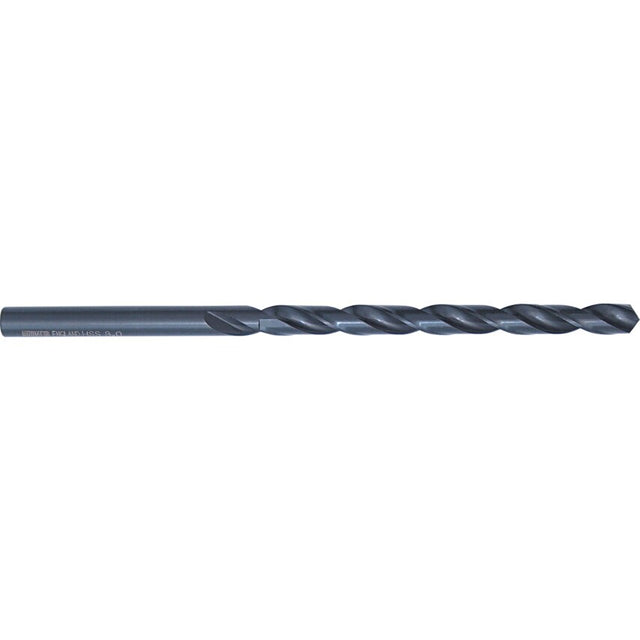

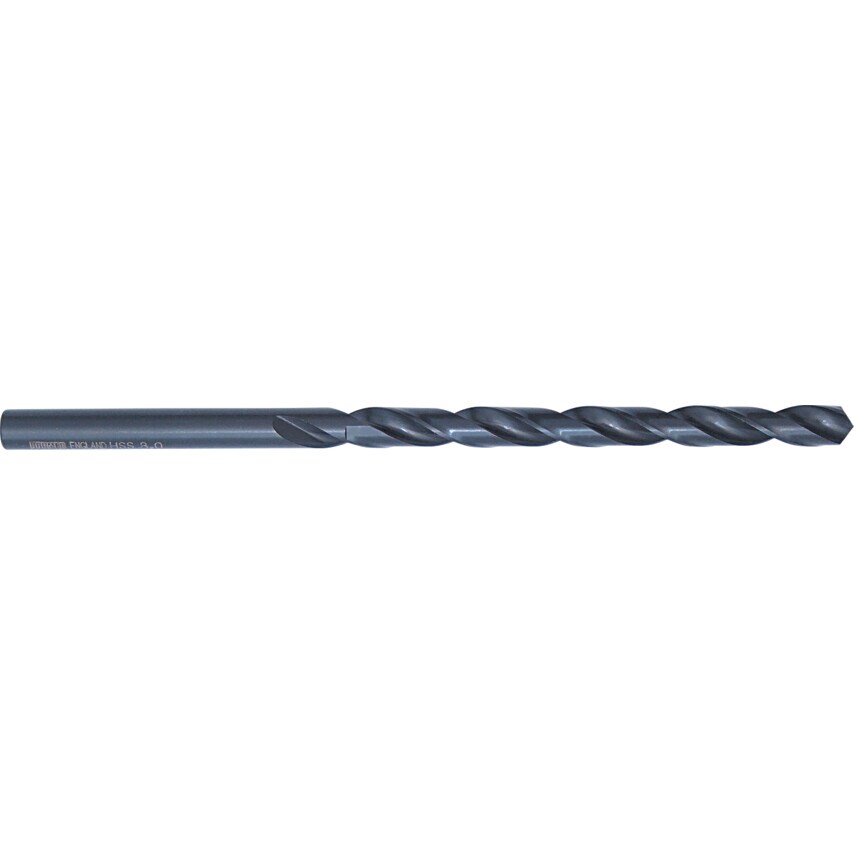

Series 502 HSSHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| Flute Construction | Ground flutes |
| Cutting Direction | Right Hand |
| Product Type | Drills |
| Helix Type | High Helix |
| Shank Diameter Tolerance | H8 |
| Type | Drill |
| Flute Length | 135mm |
| System of Measurement | Metric |
| Drill Length Type | Extra Length |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Series | 502 |
| Material | HSS |
| Drill Diameter Tolerance | H8 |
| Coolant Delivery | External |
| Size | 4.8mm |
| Overall Length | 195mm |
| MFR Part No. | 00502 004.800 |
| Drill Diameter | 4.8mm |
| Flute Type | Parabolic |
| Point Angle | 130\u00b0 |
| Finish/Coating | Uncoated |
| Web Thickness | Form A |
| Shank Type | Straight |
| Standards Met | DIN 1869 |
