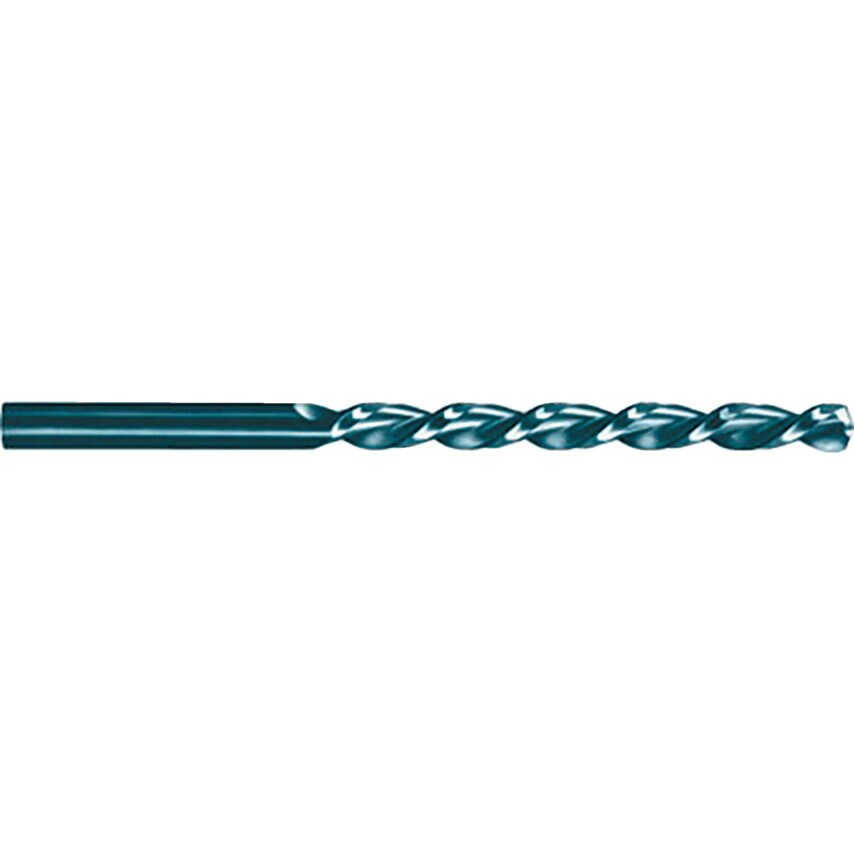

Series 336 HSS-Co High Helix (Parabolic Flute) Straight Shank Long Series Drills
Inch
Flute type GT100 - Guhring's parabolic flute design is suitable for a wide range of materials and the most universal - can be used to successfully drill ferrous and non-ferrous materials. Standard GT100 drills incorporate a 130 point angle with a Type A web thin for maximum efficiency.
Manufactured to DIN340. Right hand cutting.
Series 336: <2.36mm: Steam tempered finish; >2.36mm / <12mm : nitrided lands.
| Overall Length | 126mm |
| Flute Length | 82mm |
| Point Angle | 130\u00b0 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Material | Cobalt High Speed Steel |
| Flute Type | Parabolic |
| MFR Part No. | 00336 004.370 |
| System of Measurement | Inch |
| Drill Diameter Tolerance | H8 |
| Product Type | Drills |
| Cutting Direction | Right Hand |
| Series | 336 |
| Flute Construction | Ground flutes |
| Coolant Delivery | External |
| Helix Type | High Helix |
| Web Thickness | Form A |
| Standards Met | DIN 340 |
