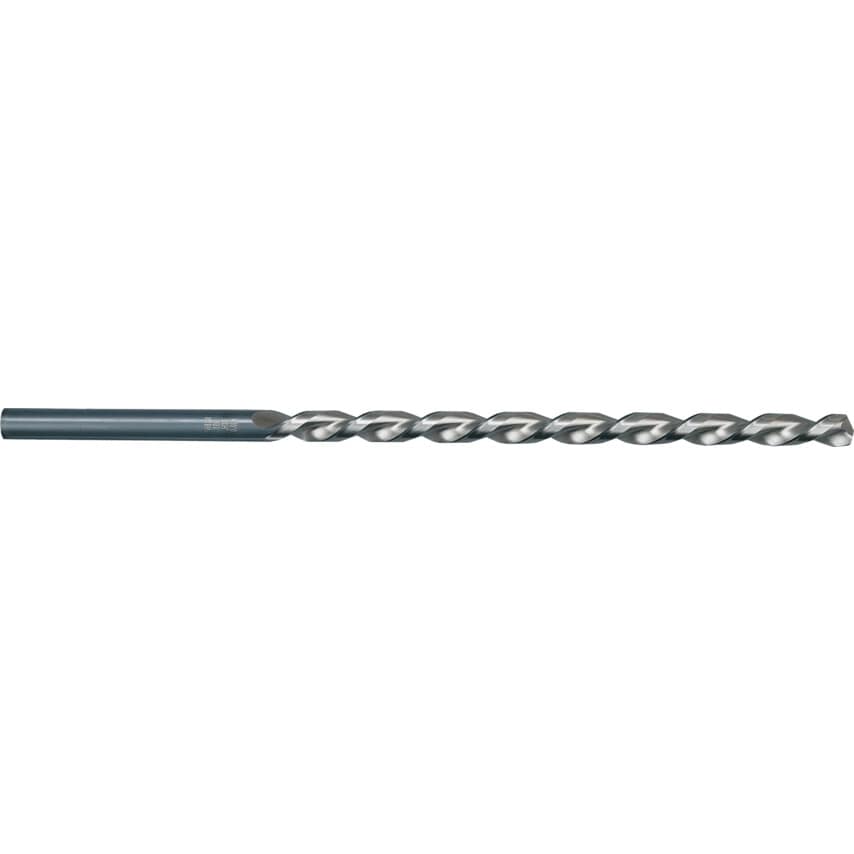

Series 502 HSSHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| Material | HSS |
| Finish/Coating | Nitride |
| Flute Length | 200mm |
| Point Angle | 130\u00b0 |
| Drill Length Type | Extra Length |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Drill Diameter | 6.8mm |
| Type | Drill |
| Shank Type | Straight |
| System of Measurement | Metric |
| Series | 503 |
| Coolant Delivery | External |
| Web Thickness | Form A Web-thinned |
| Number of Pieces | 1 |
| Standards Met | DIN 1869 |
| Overall Length | 290mm |
