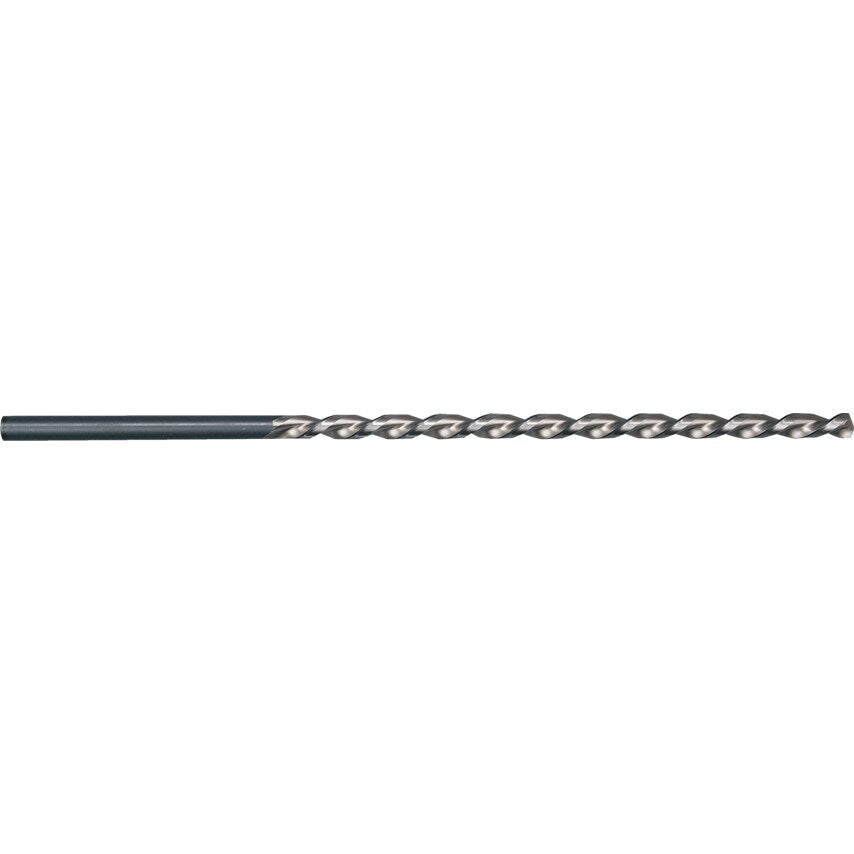

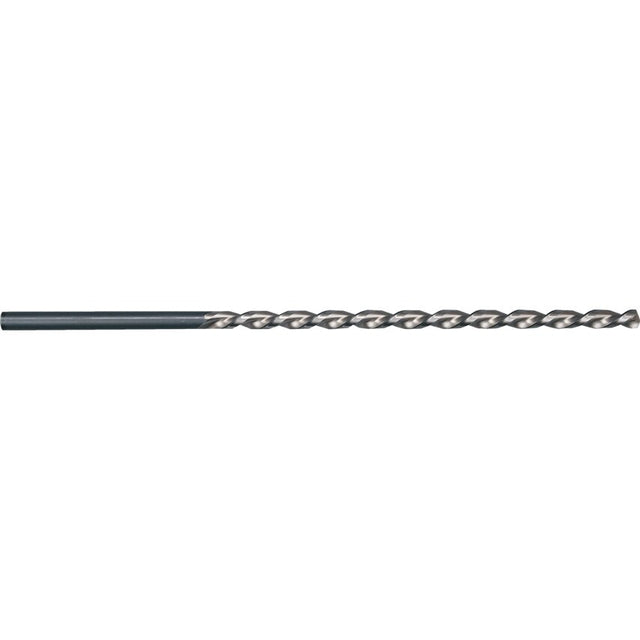

Series 504 HSS High Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| Coolant Delivery | External |
| Product Type | Drills |
| Cutting Direction | Right Hand |
| System of Measurement | Metric |
| Standards Met | DIN 1869 |
| Series | 504 |
| Flute Type | Parabolic |
| Number of Pieces | 1 |
| MFR Part No. | 00504 013.000 |
| Helix Type | High Helix |
| Flute Length | 330mm |
| Overall Length | 480mm |
| Drill Diameter Tolerance | H8 |
| Flute Construction | Ground flutes |
| Material | HSS |
| Point Angle | 130\u00b0 |
| Shank Type | Straight |
| Web Thickness | Form A |
| Drill Diameter | 13.0mm |
| Number of Flutes | 2 |
| Drill Length Type | Extra Length |
