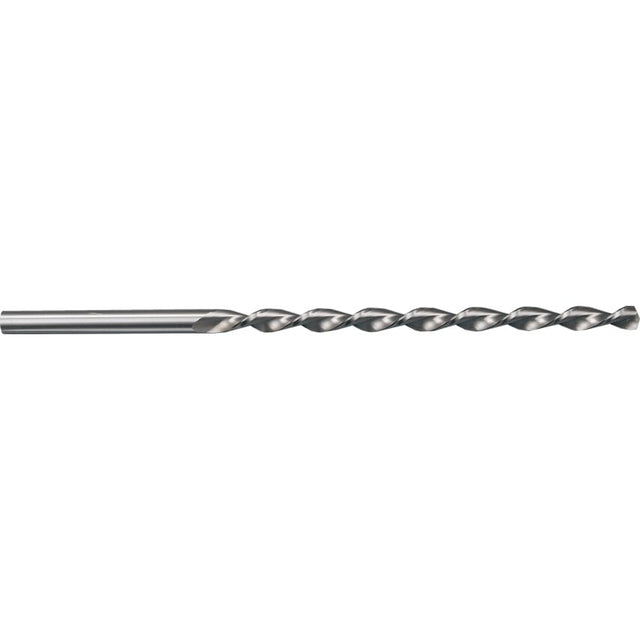

High heat resistant drill with wide chip space for very deep holes in difficult conditions, such as when swarf congestion hinders the flow of coolant to the drill point or when tool overheating arises from other causes. For use in steels and cast steels of high tensile strength (not suitable for lubrication holes in crankshafts).
Features
Manufactured to DIN 1869
Shank tolerance h8
130 Point angle
Web thinning >2.70
15xD
Straight shank , Extra length
Increased wear resistance
Sizes 1/8" to 3/8"
| Point Type | Thinned Point |
| Drill Diameter Tolerance | H8 |
| Number of Flutes | 2 |
| Material | Cobalt High Speed Steel |
| Flute Length | 165mm |
| System of Measurement | Inch |
| Cutting Direction | Right Hand |
| Point Angle | 130\u00b0 |
| Flute Type | Parabolic |
| Web Thickness | Form A |
| Shank Type | Straight |
| Overall Length | 240mm |
| Number of Pieces | 1 |
| Flute Construction | Ground flutes |
| MFR Part No. | 00618 007.940 |
| Standards Met | DIN 1869 |
| Series | 618 |
| Coolant Delivery | External |
