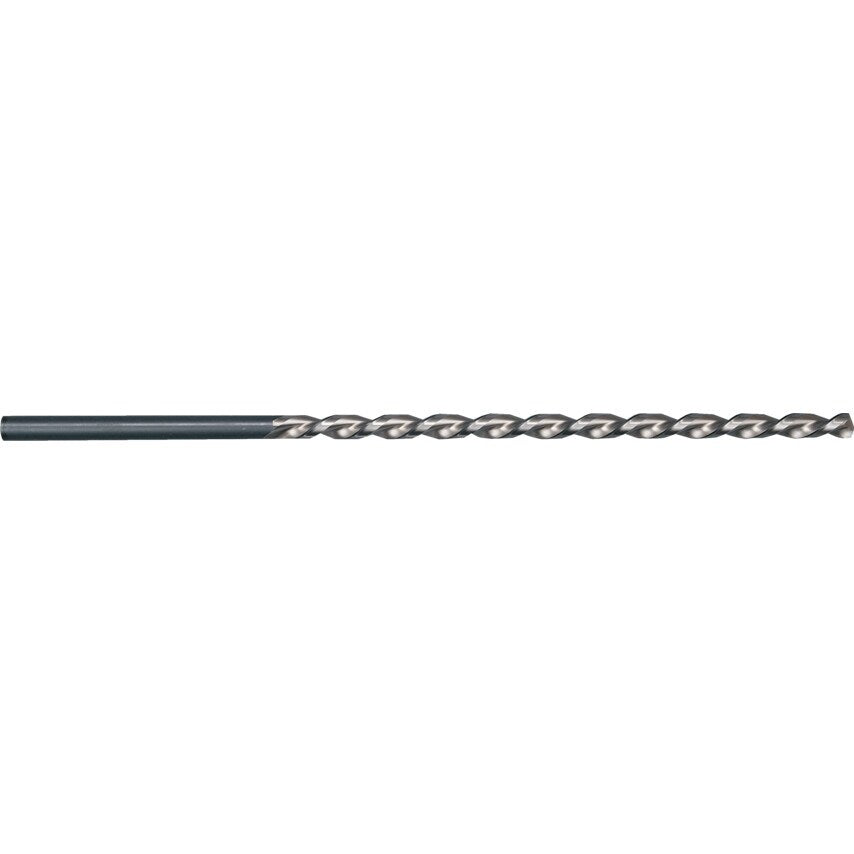

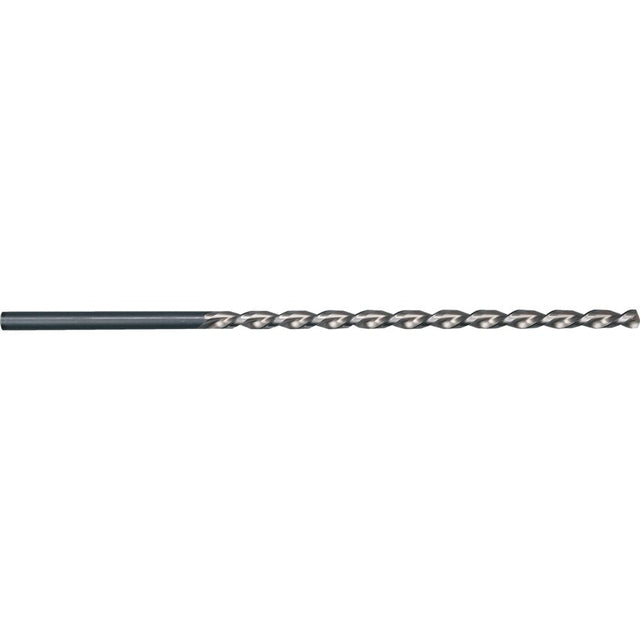

Series 504 HSS High Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| System of Measurement | Metric |
| Cutting Direction | Right Hand |
| Material | HSS |
| Helix Type | High Helix |
| Product Type | Drills |
| Flute Length | 295mm |
| Overall Length | 430mm |
| Drill Diameter Tolerance | H8 |
| Flute Construction | Ground flutes |
| Series | 504 |
| Web Thickness | Form A |
| Flute Type | Parabolic |
| Coolant Delivery | External |
| Drill Length Type | Extra Length |
| Shank Type | Straight |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Point Angle | 130\u00b0 |
| MFR Part No. | 00504 010.000 |
| Standards Met | DIN 1869 |
| Drill Diameter | 10.0mm |
