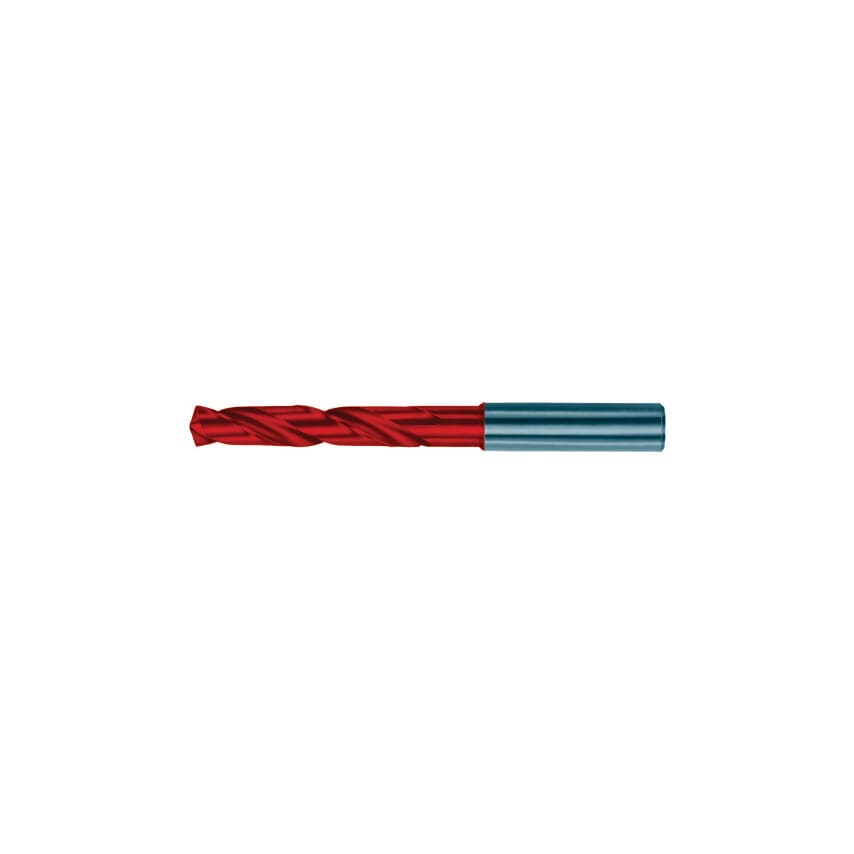

5614 10.0mm Carbide Weldon Shank Ratio Drills - FIREX Coating

For drilling into general steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous heavy and light metal, and abrasive plastic. Features 3xD Self-centering Point angle: 140 Diameter tolerance m7 Shank tolerance h6 Manufactured to DIN 6537 Sizes 3.00mm to 20.00mm Fire Coating: Applied in Guhring's own coating plants using the PVD process. All round coating can achieve two to three times the performance of TiN, and considerably better than TiALn. Has excellent heat resistance as well as high toughness, therefore it is well-suited for interrupted cutting.

Drill Diameter	10.2mm
Series	5614
Point Angle	140
Material	Carbide
Standards Met	DIN 6537
MFR Part No.	05614 010.200
Carbide Drill Type	Carbide High Performance
Shank Diameter	10mm
