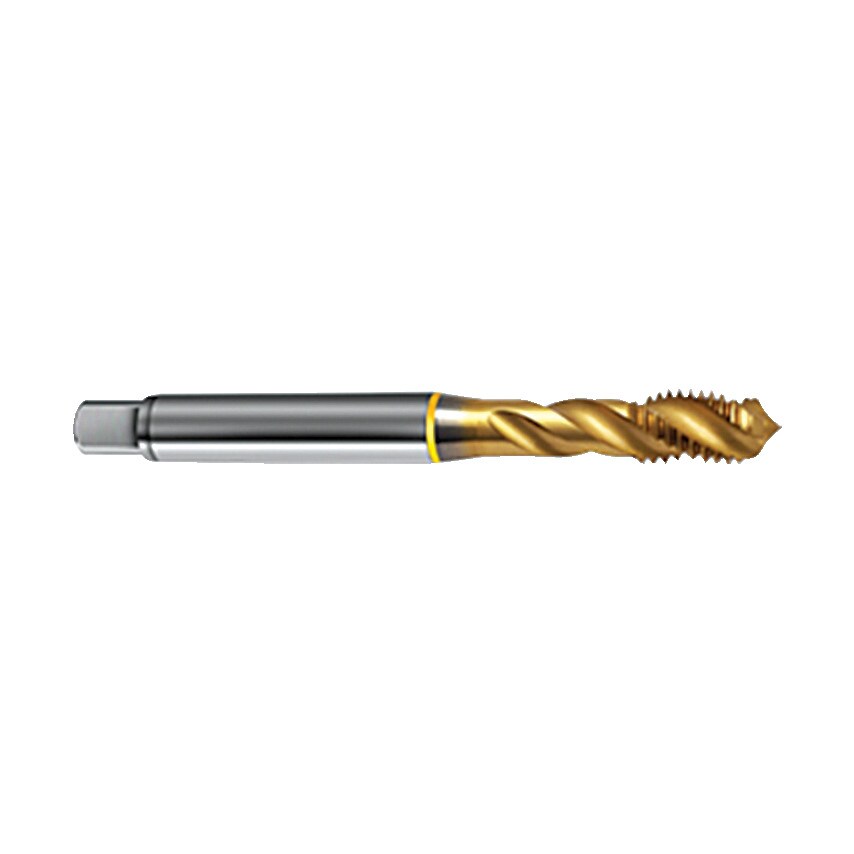

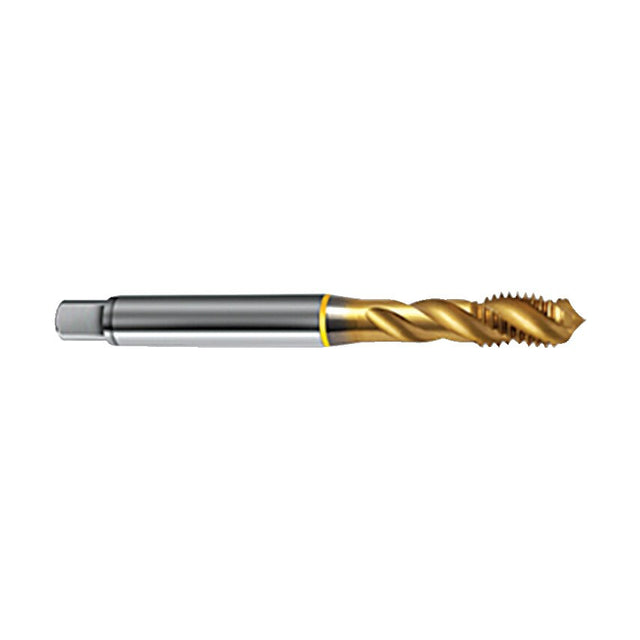

Guhring 'GoldRing' PowerTaps are the universal tap for general purpose steels, tool steels, alloyed steels, stainless steels and aluminium.
Features
Diameter manufactured to DIN 2184-1
Shank diameter manufactured to DIN 371
Form C
TiN coated
Tolerance ISO 2/6H
Spiral flute for blind holes
Sizes M2 to M10
| Overall Length | 56mm |
| Class of Fit | 6H |
| Thread Size | M3 |
| Pitch | 0.5mm |
| Material | Cobalt High Speed Steel |
| Series | 5737 |
| Finish/Coating | TiN |
| Dimensions Standard | DIN 371 |
| Thread Direction | Right Hnd |
| Thread Standard | Metric Coarse |
| MFR Part No. | 05737 003.000 |
| Tap Type | Spiral Flute |
| Number of Flutes | 3 |
| Coolant Delivery | External |
| Material Grade | M35 |
| Tapping Depth | 18mm |
| Square Width | 2.7mm |
| Thread Length | 6mm |
| Shank Diameter | 3.5mm |
