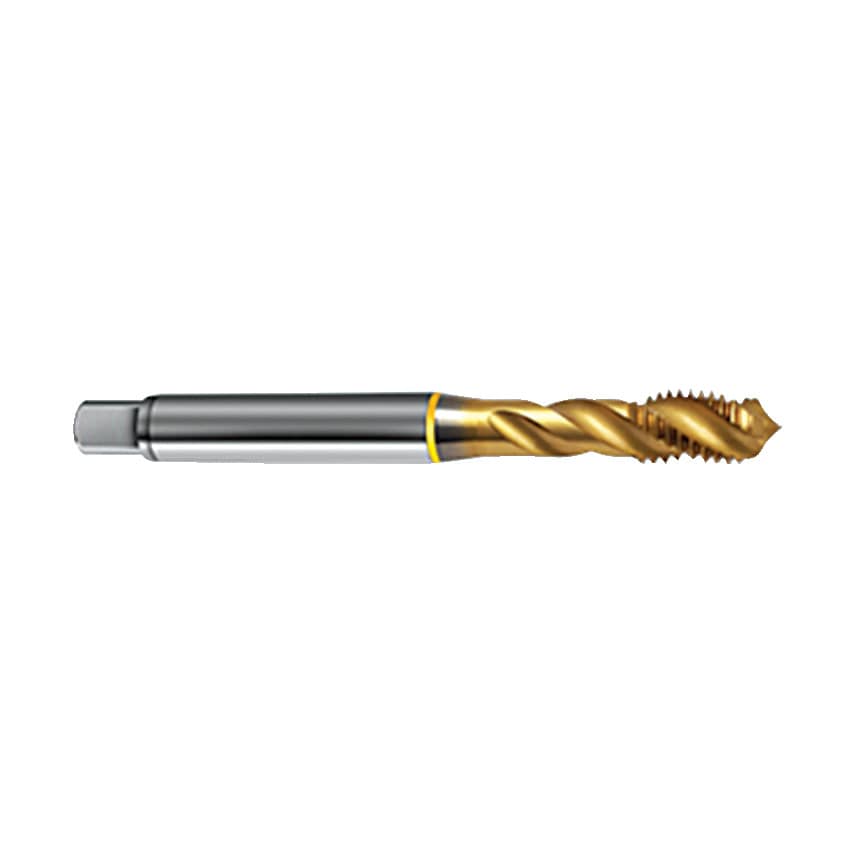

Guhring 'GoldRing' PowerTaps are the universal tap for general purpose steels, tool steels, alloyed steels, stainless steels and aluminium.
Features
Diameter manufactured to DIN 2184-1
Shank diameter manufactured to DIN 371
Form C
TiN coated
Tolerance ISO 2/6H
Spiral flute for blind holes
Sizes M2 to M10
| MFR Part No. | 05737 010.000 |
| Overall Length | 100mm |
| Shank Diameter | 10mm |
| Square Width | 8mm |
| Pitch | 1.5mm |
| Thread Size | M10 |
| Tapping Depth | 39mm |
| Thread Standard | Metric Coarse |
| Thread Direction | Right Hnd |
| Material | Cobalt High Speed Steel |
| Dimensions Standard | DIN 371 |
| Coolant Delivery | External |
| Material Grade | M35 |
| Series | 5737 |
| Tap Type | Spiral Flute |
| Finish/Coating | TiN |
| Thread Length | 16mm |
| Number of Flutes | 3 |
| Class of Fit | 6H |
