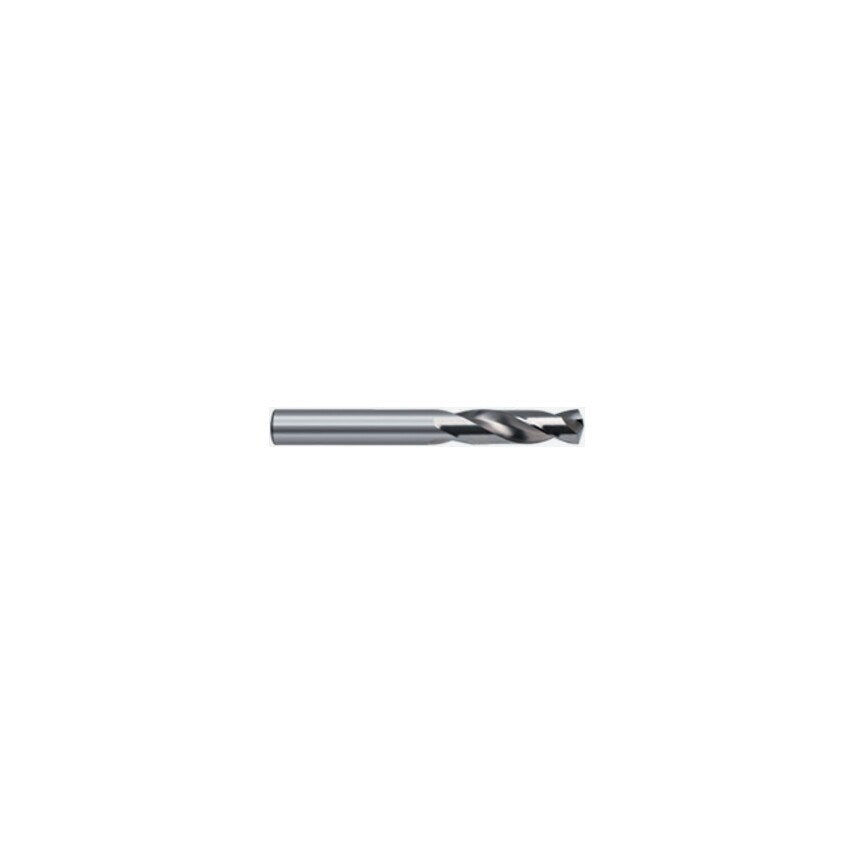

Series 5524 HSs-Co GT500 Straight Shank Stub Drill
Metric
Bright Surface Finish.
Type GU 500 DZ.
Range - 1.0 - 14.0mm.
Materials - Al Si cast alloys Al wrought alloys Alloyed case hardened steels Alloyed heat-treatable steels Aluminium and Al-alloys Brass. long-chipping Brass. short-chipping Bronze. long-chipping Bronze. short-chipping Cast iron Common structural steels Copper. low-alloyed
| Number of Flutes | 2 |
| Flute Type | Spiral |
| Point Angle | 118\u00b0 |
| Drill Diameter | 4.5mm |
| Shank Type | Straight |
| Shank Diameter Tolerance | F11 |
| Series | 5524 |
| Product Type | Stub Drills |
| Number of Pieces | 1 |
| Web Thickness | Similar to Form C |
| Standards Met | DIN 1897 |
| Overall Length | 58mm |
| Flute Construction | Ground flutes |
| Helix Type | High Helix |
| Material | Cobalt High Speed Steel |
| Coolant Delivery | External |
| Drill Diameter Tolerance | H8 |
| Finish/Coating | Bright |
| Point Type | Four Facet |
| Cutting Direction | Right Hand |
| Flute Length | 24mm |
