No. 496

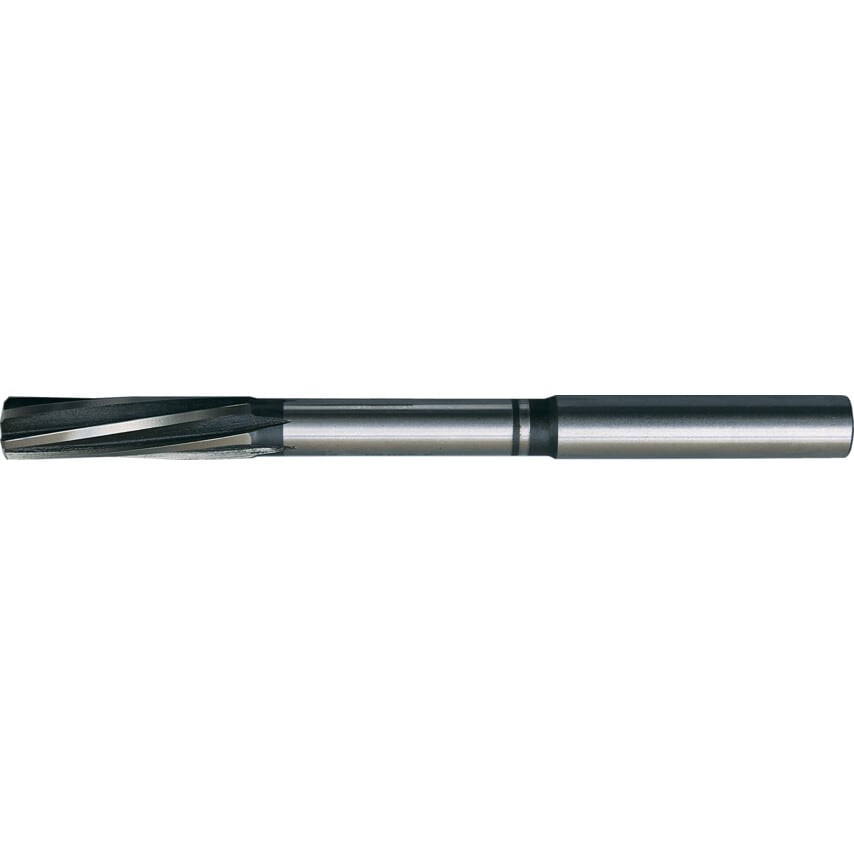

Available in diameters ranging from 2mm to 12mm in increments of 0.01mm. Made from HSS-E steel with a bright finish, left hand spiral flute.
For all ferrous and non-ferrous metals and hard and soft plastics.
For use on CNC machines, producing high quality reamed holes.
Manufactured to DIN 212 & DIN 2172 section 1.
Shank diameter = cutting diameter - 0.025mm.
2.00 ~ 2.65/2.66 ~ 10.00 H9.
Diameter Tolerances (to H7)
Up to 5.5mm: + 0.004mm - 0.000mm
Above 5.5mm: + 0.005mm - 0.000mm.
Code numbers are determined by the nominal diameter. Delete the decimal point; create a four figure number by preceding the figures with a zero, if required. All codes finish with the letter A, i.e. 3.60 becomes 0360A.
| Shank Diameter | 1.85mm |
| MFR Part No. | 00496 001.850 |
| Flute Length | 10mm |
| Shank Type | Straight Chucking |
| Number of Flutes | 4 |
| Length Type | Standard Length |
| Cutting Direction | Right Hand |
| Material | Cobalt High Speed Steel |
| Diameter Tolerance | 0.004 - 0.000 |
| Reamer Type | Fixed |
| Material Grade | M35 |
| Finish/Coating | Bright |
| Standards Met | DIN 212 | DIN 2172 Section 1 |
| Reamer Diameter | 1.85mm |
| Flute Type | Left Hand Spiral |
| Overall Length | 38mm |
