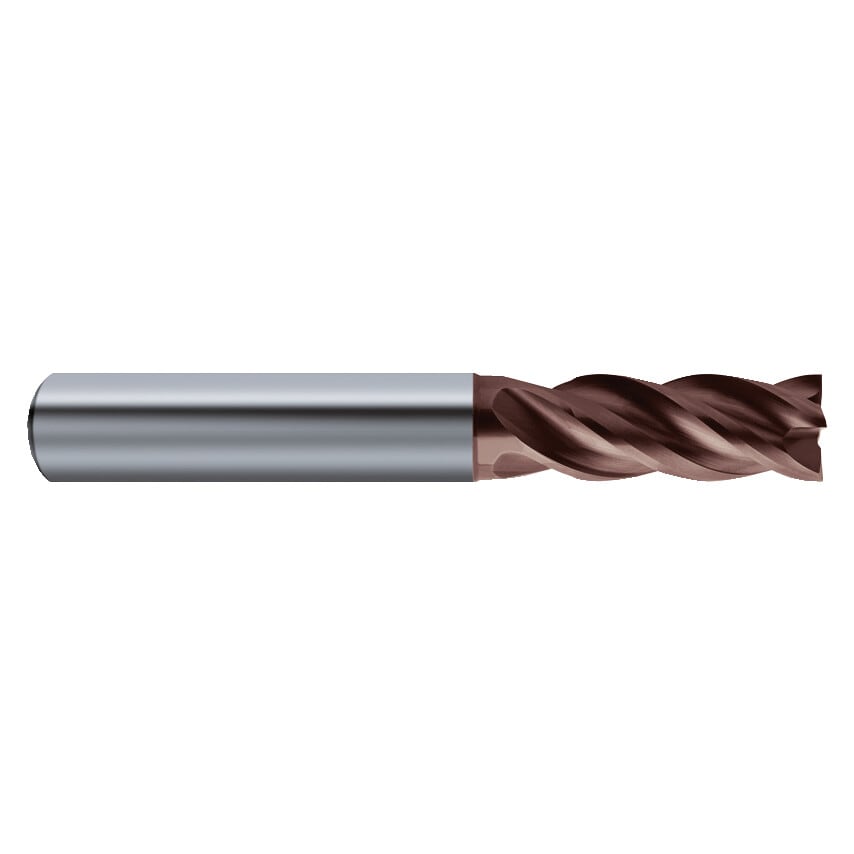

Where drilling tools rely on axial coolant ducts and milling tools on radial coolant ducts, RF 100 Diver offers both, in order to optimally cool and protect the face as well as the circumference geometry when drilling and plunging. Guhring's decades of know-how in the production of carbide as well as FEM optimisation ensure maximum efficiency in cooling lubrication, chip evacuation and tool stability.
Features and Benefits
nano-Si Coating - PVD Coated (TiAl/TiAlSiMoCr) for excellent heat and wear resistance
Cutting edge preparation for
Optimal chip space for greater chip flow and control
High metal removal rate for optimal cutting efficiency
Up to 100% increased cutting speed in steel
End geometry allows plunging and ramping for greater versatility
Typical Applications
Slotting
Roughing
Ramping
Plunging
Finishing
Aluminum
Alloyed steels
Free cutting steels
Tool steels
Stainless steels
Ti and Ti-alloys
Cast iron
Special alloys
Standards
DIN 6527 L

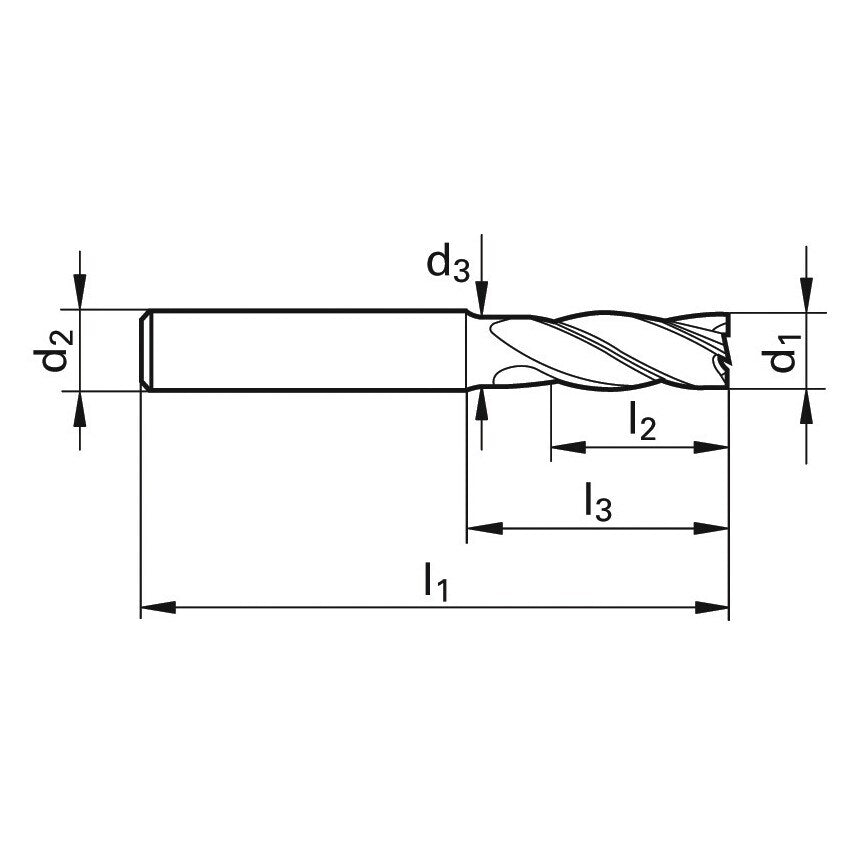

| End Mill Type | End Mill |
| Series | 6737 |
| Material | Carbide |
| Shank Type | Plain Round |
| Flute Type | Helical |
| Helix Angle | 36/38/37\u00b0 |
| Number of Flutes | 4 |
| Standards Met | DIN 6527 |
| Plunge Type | Centre Cutting |
| Finish/Coating | Nano-Si \u00ae |
| Cutter Diameter Tolerance | H10 |
| Overall Length | 63.0mm |
| Flute Length | 19mm |
| Milling Cutter Type | End Mills |
| Shank Diameter | 8mm |
| Coolant Delivery | External |
| Cutter Diameter | 8mm |
| Length Type | Regular |
| Shank Diameter Tolerance | H6 |
| Cutting Direction | Right Hand |
| MFR Part No. | 06737 008.800 |
