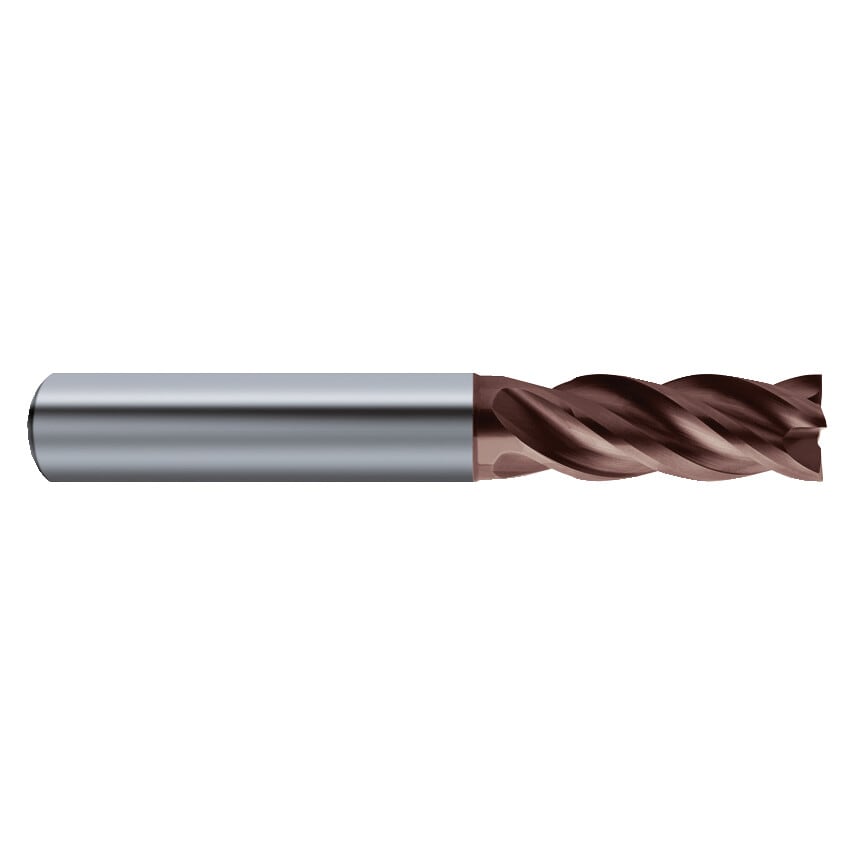

Where drilling tools rely on axial coolant ducts and milling tools on radial coolant ducts, RF 100 Diver offers both, in order to optimally cool and protect the face as well as the circumference geometry when drilling and plunging. Guhring's decades of know-how in the production of carbide as well as FEM optimisation ensure maximum efficiency in cooling lubrication, chip evacuation and tool stability.
Features and Benefits
nano-Si Coating - PVD Coated (TiAl/TiAlSiMoCr) for excellent heat and wear resistance
Cutting edge preparation for
Optimal chip space for greater chip flow and control
High metal removal rate for optimal cutting efficiency
Up to 100% increased cutting speed in steel
End geometry allows plunging and ramping for greater versatility
Typical Applications
Slotting
Roughing
Ramping
Plunging
Finishing
Aluminum
Alloyed steels
Free cutting steels
Tool steels
Stainless steels
Ti and Ti-alloys
Cast iron
Special alloys
Standards
DIN 6527 L

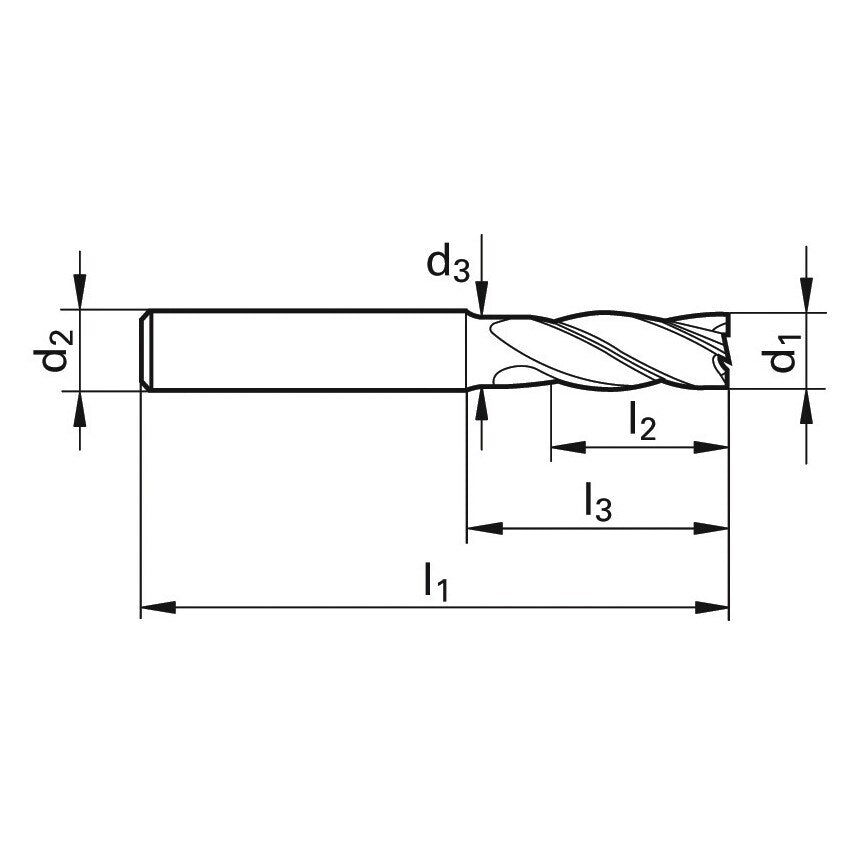

| Flute Length | 26mm |
| Coolant Delivery | External |
| Helix Angle | 36/38/37\u00b0 |
| Finish/Coating | Nano-Si \u00ae |
| Cutter Diameter Tolerance | H10 |
| Flute Type | Helical |
| Length Type | Regular |
| Material | Carbide |
| Series | 6737 |
| Number of Flutes | 4 |
| Shank Diameter | 14mm |
| Cutting Direction | Right Hand |
| Cutter Diameter | 13.7mm |
| Standards Met | DIN 6527 |
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
| MFR Part No. | 06737 013.700 |
| Overall Length | 83mm |
| Milling Cutter Type | End Mills |
| Shank Type | Plain Round |
