Surface finish: bright.
Cutting direction: right hand.
Diameter to within 4.0mm with highly unequal flute spacing.
Left hand spiral flutes.
Diameter Tolerances:
from 0.98 to 5.03mm: 0.000/plus 0.004.
from 5.97 to 12.05mm: 0.000/plus 0.005.

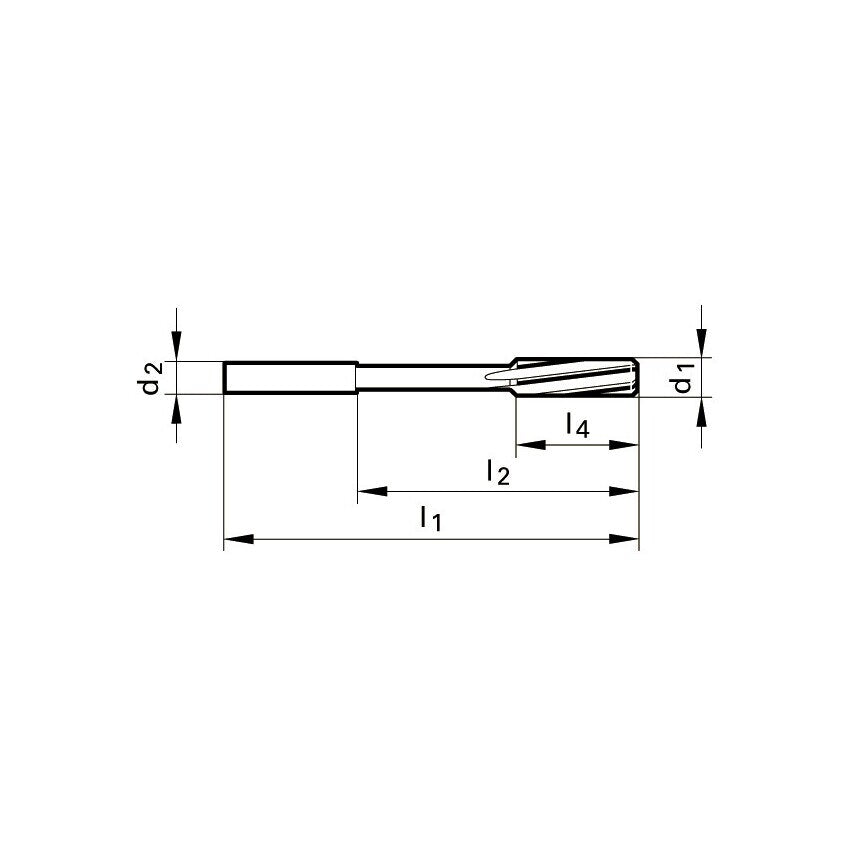

For all dimensional specification please refer to our catalogue.
| Shank Type | Straight |
| Finish/Coating | Bright |
| Number of Flutes | 6 |
| Material | Carbide |
| Reamer Type | Fixed |
| MFR Part No. | 8.04 |
| Length Type | Standard Length |
| Reamer Diameter | 8.04mm |
| Flute Type | Left Hand Spiral |
| Cutting Direction | Right Hand |
| Material Grade | K10 |
| Overall Length | 50mm |
| Flute Length | 33mm |
| Diameter Tolerance | 0.000 - +0.004 |
