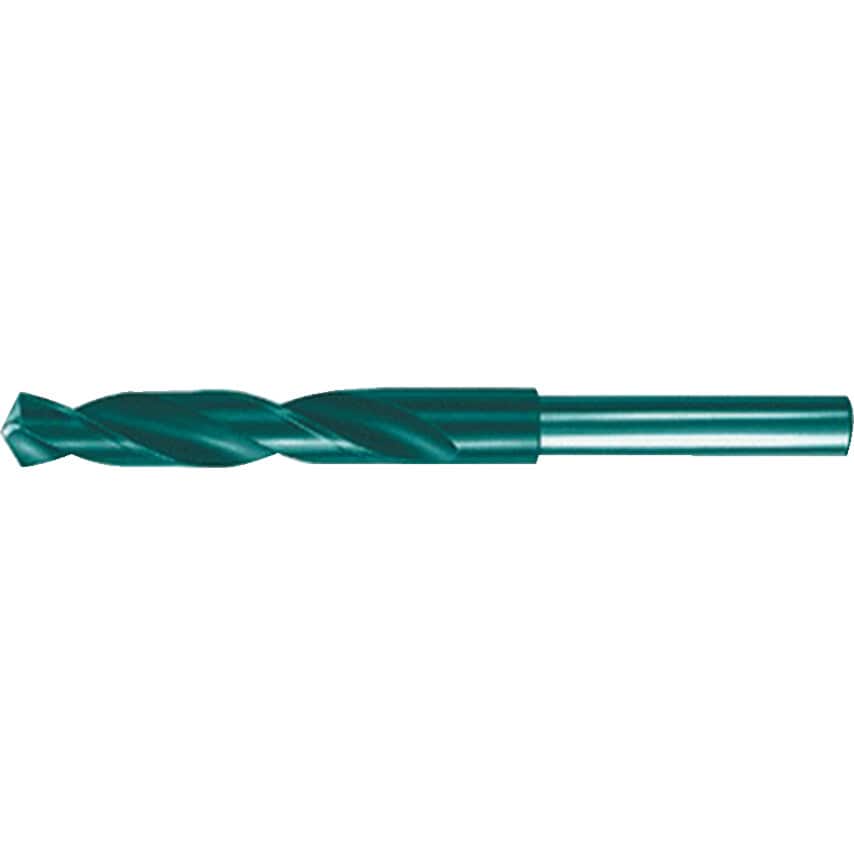

Series 268 HSS 1/2" Parallel Shank Blacksmiths Drills - Metric
A standard drill for drilling steels, cast irons, sintered powder metal, German silver and graphite. Reduced parallel shank 1/2?. Point angle: 118, helix angle: standard, web thickness: standard, tolerance of diameter: h8. Manufactured to DIN 1414.
| Overall Length | 157mm |
| Series | 268 |
| Number of Flutes | 2 |
| Web Thickness | Standard |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Drill Diameter Metric | 14.5 |
| Drill Diameter Tolerance | H8 |
| Shank Type | Parallel |
| Standards Met | DIN 1414 |
| Point Angle | 118\u00b0 |
| Material | HSS |
| Finish/Coating | Steam Tempered |
| Number of Pieces | 1 |
| Flute Construction | Ground flutes |
| Coolant Delivery | External |
| Flute Length | 83mm |
| Shank Diameter | 1/2in |
| Helix Type | Normal Helix |
