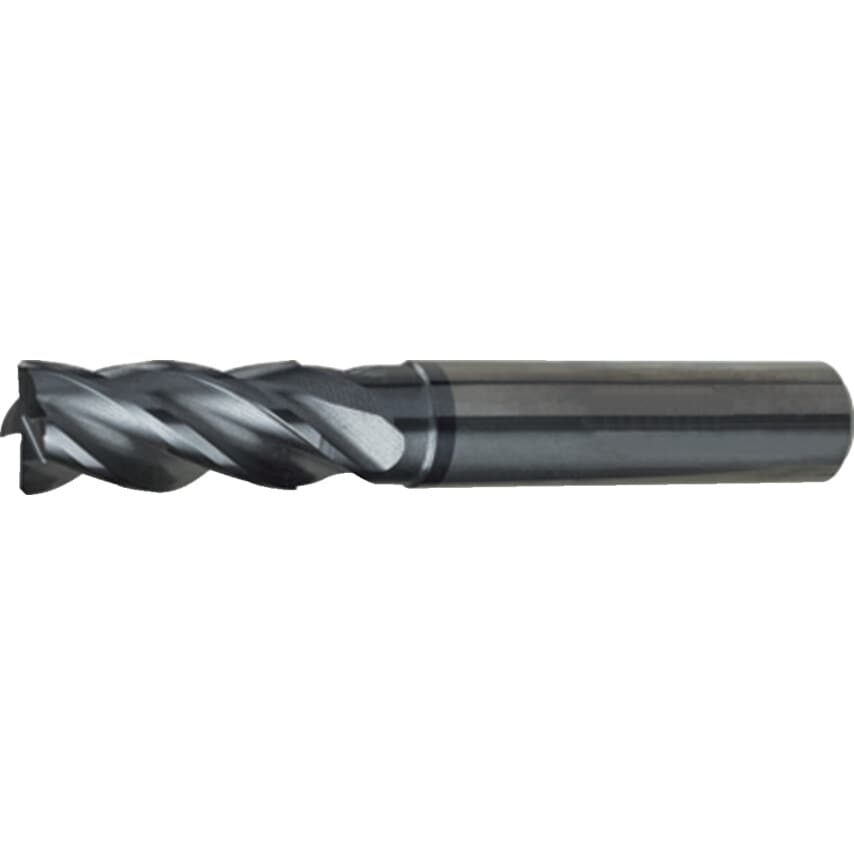

Series 3800 cabide plain shank end mills feature a nano-A coated - AlTiN-coating (Al-content between TiAlN and SuperA) multilayer with nanostructured areas. This allows the tool to offer excellent resistance against blue-violet, high heat- and wear. The carbide construction allows for a harder cutting edge with greater efficiency and the 4 flute design offers a precision cut for greater surface finishing.
Features and Benefits
nano-A coated for excellent resistance against blue-violet, high heat- and wear
Carbide construction for a harder cutting edge and greater efficiency
4 flute design offers a precision cut for greater surface finishing
Typical Applications
Milling
| Overall Length | 57.0mm |
| Cutting Direction | Right Hand |
| Length Type | Regular |
| Cutter Diameter Tolerance | H10 |
| Standards Met | DIN 6527L |
| Material | Carbide |
| Finish/Coating | Nano-A |
| Flute Length | 11mm |
| Cutter Diameter | 4mm |
| Shank Type | Plain Round |
| Plunge Type | Centre Cutting |
| MFR Part No. | 03800 004.000 |
| Number of Flutes | 4 |
| Series | 3800 |
| Helix Angle | 36/38\u00b0 |
| Milling Cutter Type | End Mills |
| End Mill Type | End Mill |
| Shank Diameter | 6mm |
| Flute Type | Helical |
| Shank Diameter Tolerance | H6 |
| Coolant Delivery | External |
