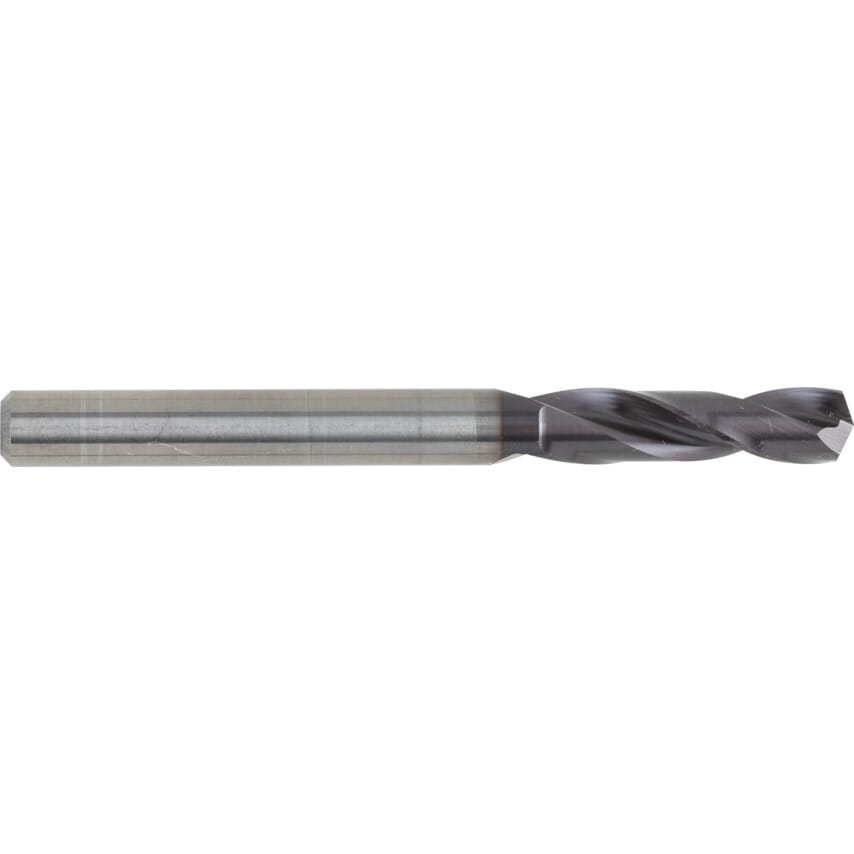

5514 12.20mm Carbide SL Ratiodrill

For the drilling of long and short-chipping materials such as structural and case hardened steels, cast steels, heat-treatable steels and alloyed steels with a tensile strength of up to app. 1200N/mm2, including carbon steels, bronze, cast iron and high alloyed AISi-alloys. Features and Benefits High alignment accuracy with small diameter tolerance and excellent surface finish FIREX coating for increased heat and wear resistance Self-centring qualities for greater precision Short chip production due to a concave cutting point geometry and web thinning Standards Manufactured to DIN 6537 Notes Sizes 3.00mm to 20.00mm

Flute Length	60mm
MFR Part No.	05514 012.200
Coolant Delivery	External
Shank Diameter	14mm
Series	5514
Number of Flutes	2
Finish/Coating	Nano-FIREX
Standards Met	DIN 6537
Drill Diameter Tolerance	M7
Flute Type	Spiral
Shank Diameter Tolerance	H6
ISO Category	K | P
Carbide Drill Type	Carbide High Performance
Drill Diameter	12.2mm
Material	Carbide
Overall Length	107mm
Helix Type	Normal Helix
Diameter x Depth	3xD
Point Angle	140\u00b0
Cutting Direction	Right Hand
