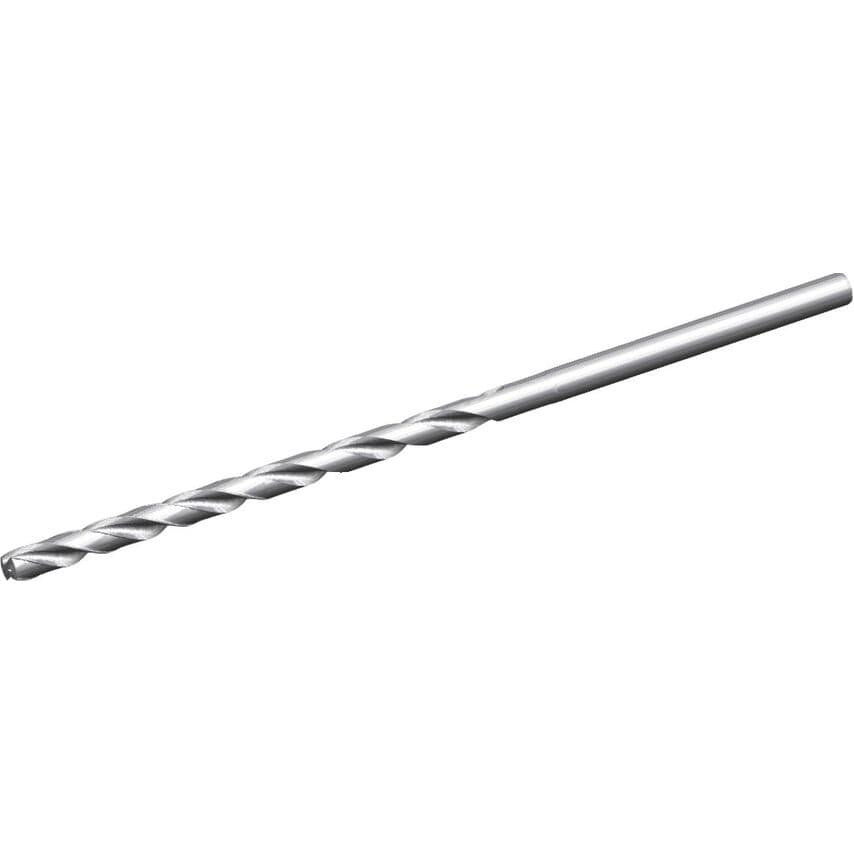

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills

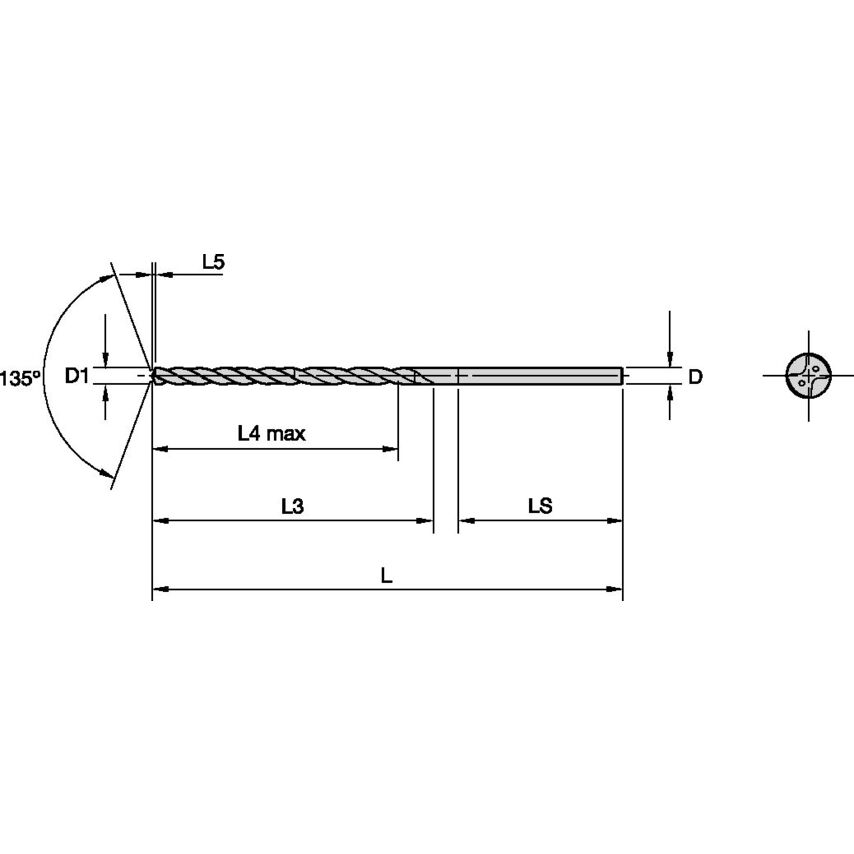

| Overall Length | 143mm | 143.0000mm |
| Drill Depth | 89mm | 89.0000mm |
| Primary Material | Non-Ferrous Materials |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| MFR Part No. | 3867754 |
| Helix Angle | 27.888 |
| Unit Measured | Metric |
| Number of Flutes | 2 |
| Flute Construction | Helical Flute |
| Drill Diameter | 5.5000mm |
| Functional Length | 141.9800mm |
| Coolant Diameter | 0.7000mm (0.0787in) |
| Flute Length | 102mm | 102.0000mm |
| Drill Point | 1.02mm |
| Coolant Supplied | Yes |
| Drill Diameter Tolerance | -0.012000 to 0.000000mm |
| Finish/Coating | Uncoated |
| Hand Preference | Right |
| Coolant Delivery | Off-center Axial Coolant |
| Assembly Length | 114.98mm |
| Material | Carbide |
| Adapter Type | Cylindrical |
| Adapter Style | Straight-Cylindrical |
| Helix Type | Right Hand Helix/Flute |
| Clamping Length | 36mm |
| Shank Length | 36.0000mm |
