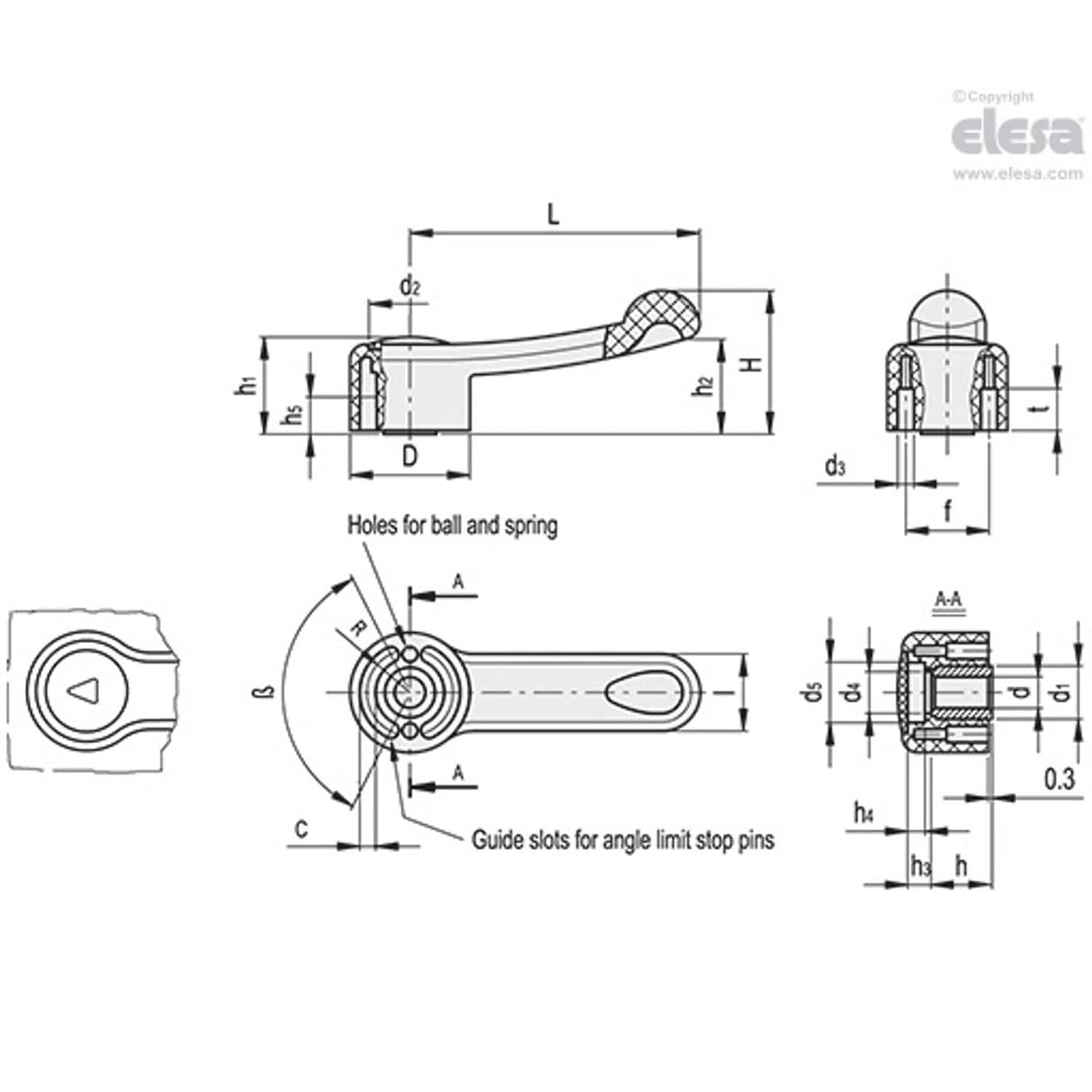

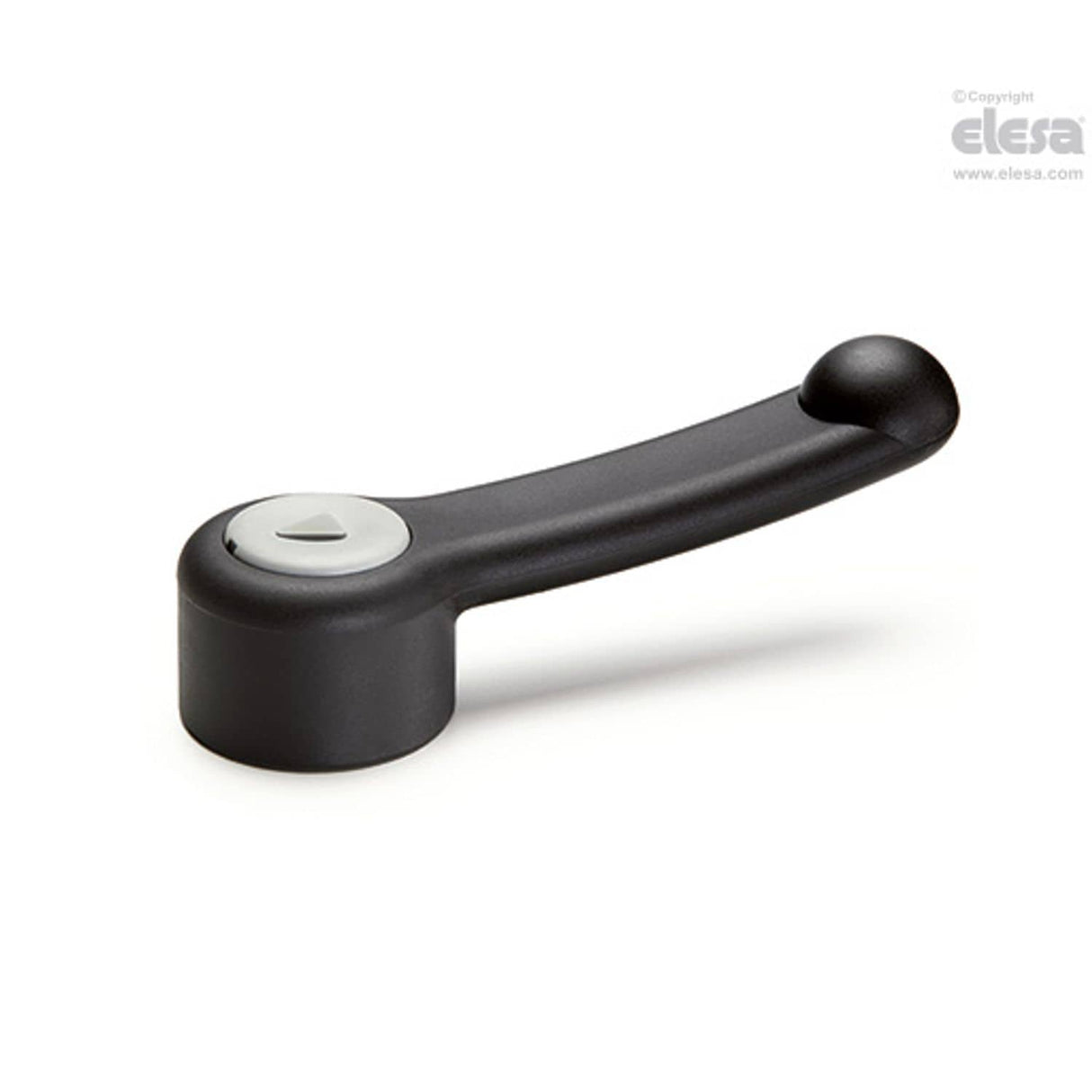

ELC. Control levers, arranged for clicking operation, technopolymer, AISI 303 stainless steel boss, cap in grey colour For product drawing and dimensions refer to pdf Item data sheet.
| L | 85 |
| d1 | 18 |
| d5 | 20 |
| h1 | 27 |
| d4 | 13.5 |
| R | 13.8 |
| H | 41 |
| MFR Part No. | ELC.85-SST-8-FC3 |
| h | 17.5 |
| d(H7) | 8 |
| h5 | 10 |
| D | 37 |
| l | 23 |
| t | 12.5 |
| f | 26 |
| c | 4.3 |
| d3 | 5 |
| h4 | 5 |
| d2 | 26 |
| Weight | 63g |
| h2 | 27 |
| Diameter | 37mm |
| Colour | Grey |
| h3 | 7.5 |
