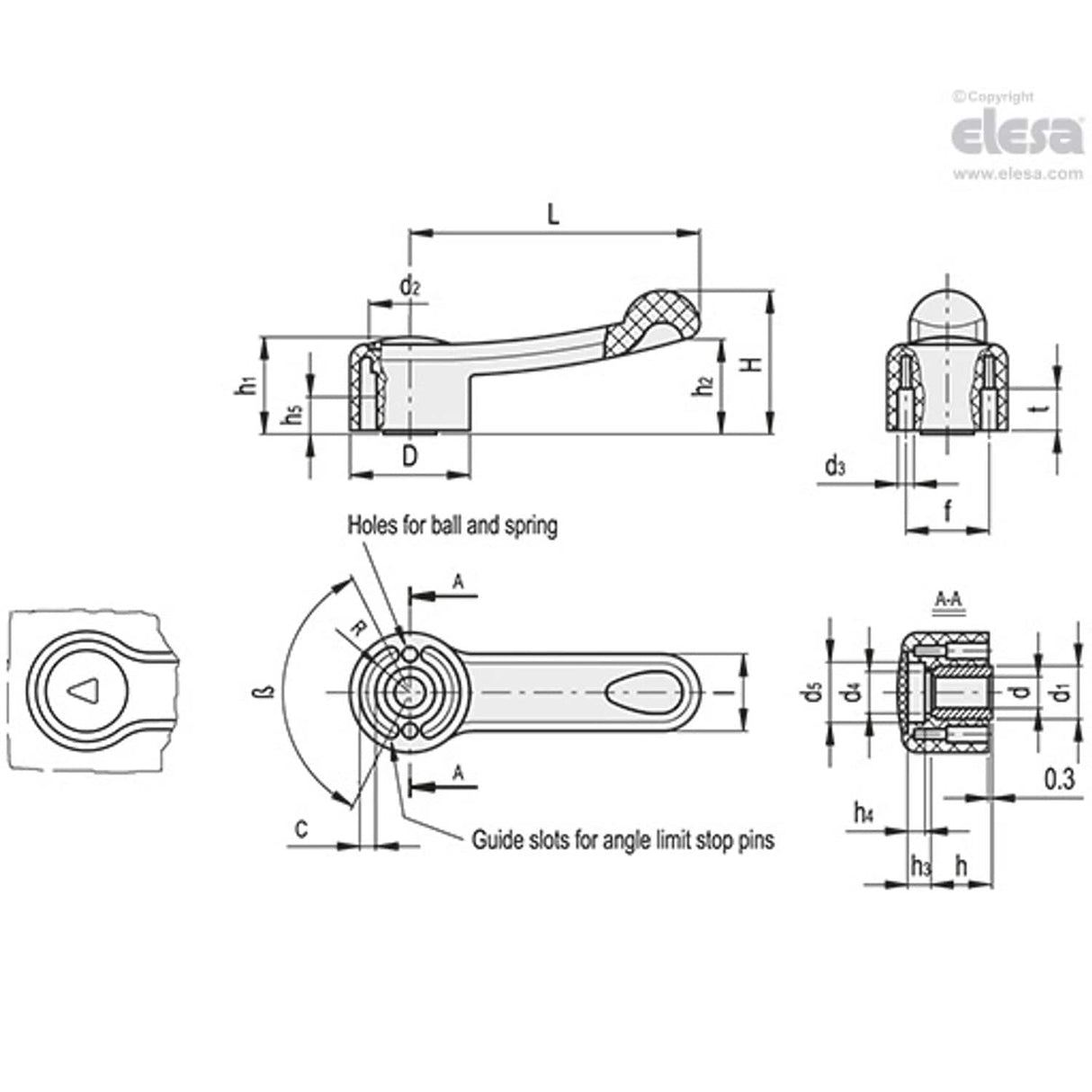

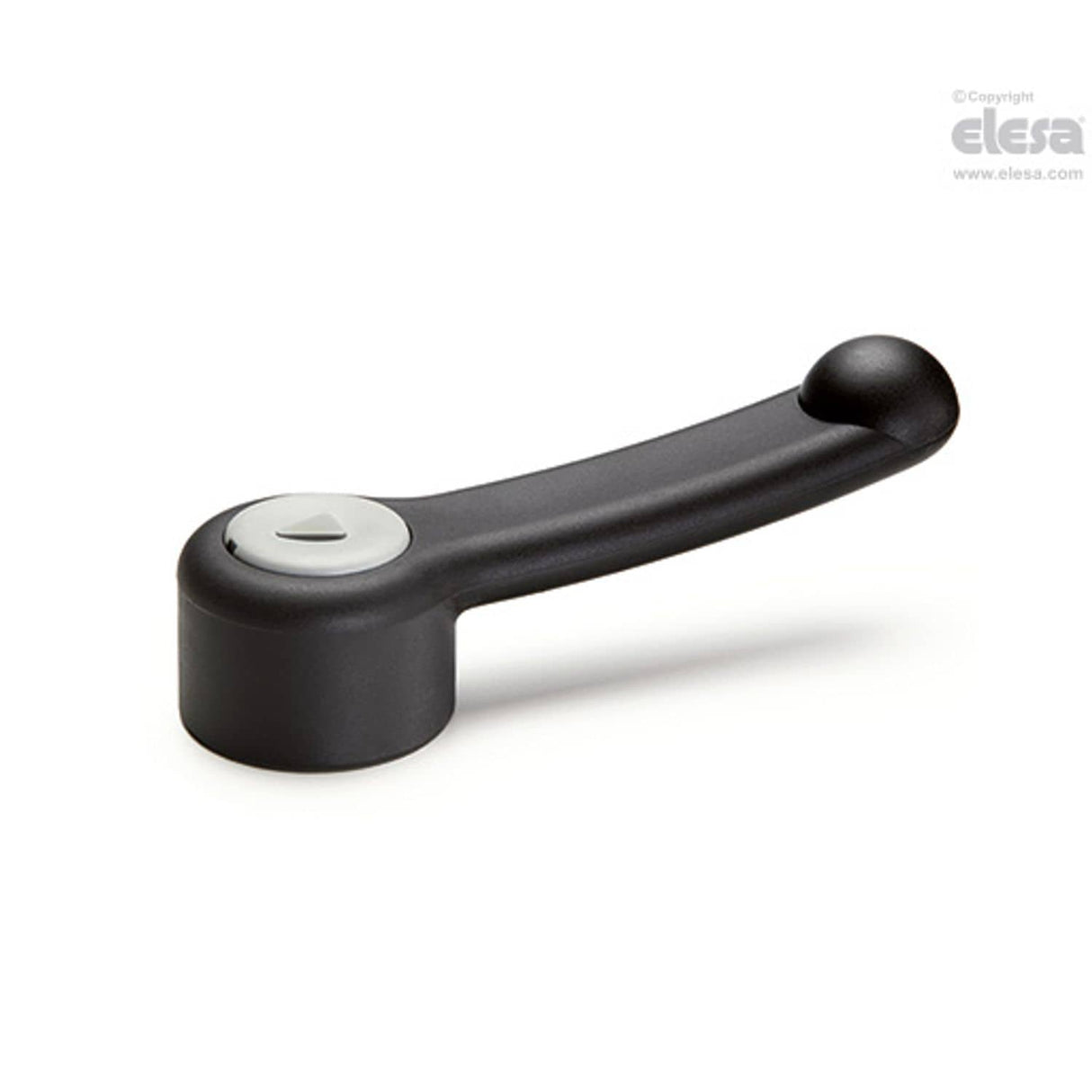

ELC. Control levers, arranged for clicking operation, technopolymer, AISI 303 stainless steel boss, cap in grey colour For product drawing and dimensions refer to pdf Item data sheet.
| R | 17.5 |
| Weight | 114g |
| D | 46 |
| Colour | Grey |
| Diameter | 46mm |
| d5 | 25.5 |
| d1 | 22 |
| h | 22 |
| d4 | 17 |
| h3 | 10 |
| f | 32 |
| d3 | 6 |
| h1 | 35 |
| d2 | 31.5 |
| l | 29 |
| d(H7) | 12 |
| H | 54 |
| MFR Part No. | ELC.110-SST-12-FC3 |
| c | 6.5 |
| h2 | 36 |
| t | 15.5 |
| L | 110 |
| h5 | 10 |
| h4 | 8 |
