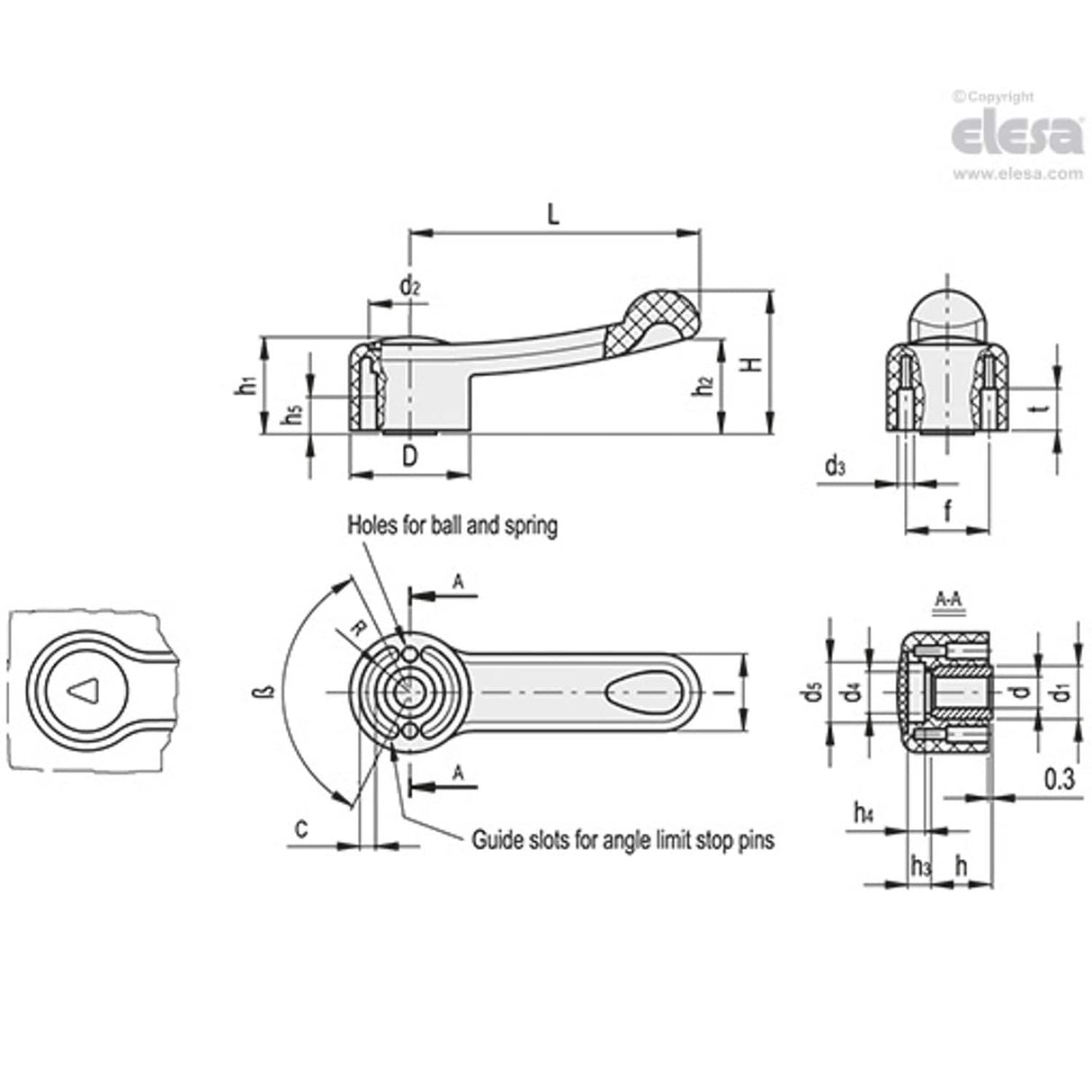

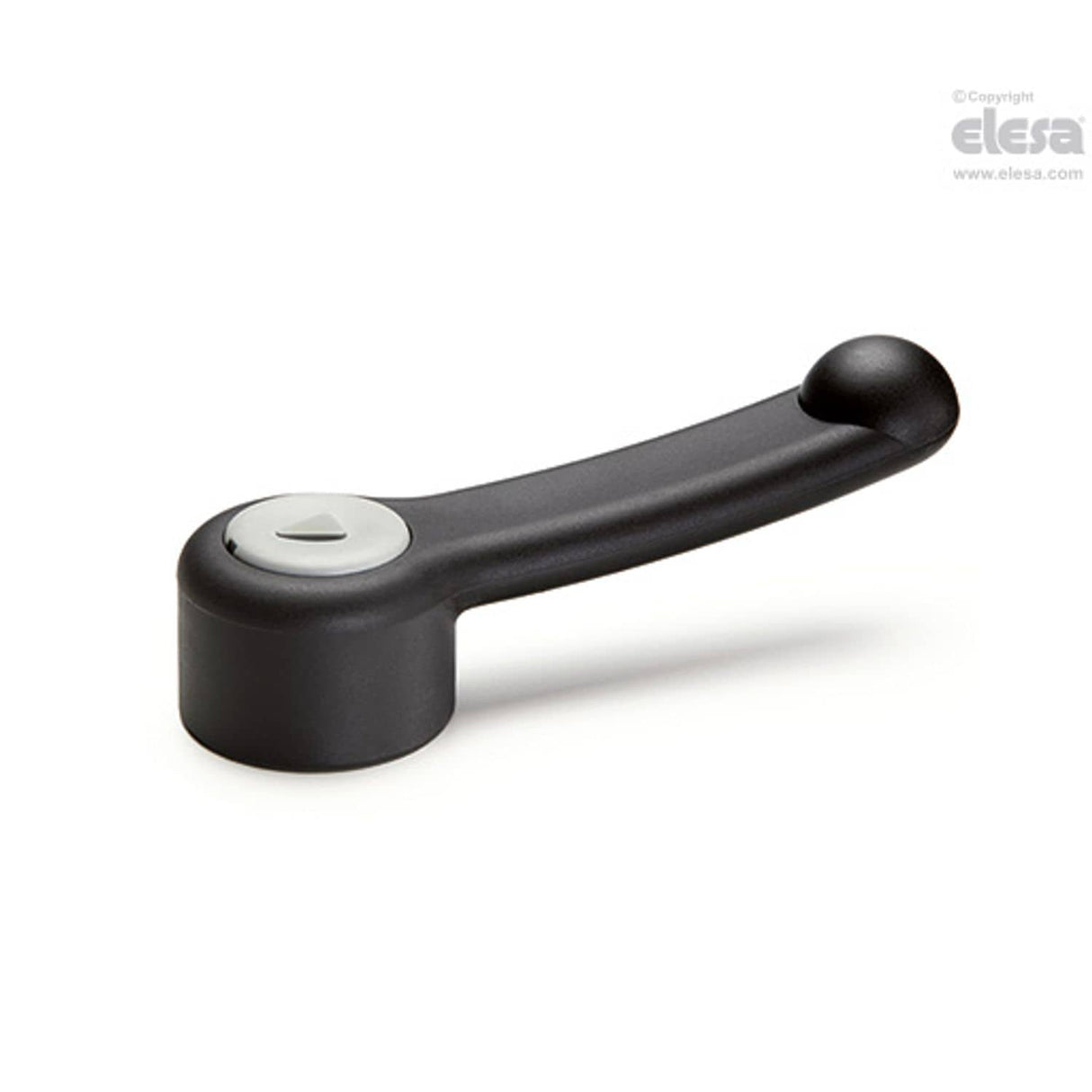

ELC. Control levers, arranged for clicking operation, technopolymer, AISI 303 stainless steel boss, cap in grey colour For product drawing and dimensions refer to pdf Item data sheet.
| L | 140 |
| d4 | 21 |
| d3 | 8 |
| Diameter | 54mm |
| h | 27 |
| Colour | Grey |
| H | 60 |
| R | 20.2 |
| t | 16 |
| d1 | 26 |
| h4 | 6 |
| h1 | 38 |
| Weight | 202g |
| d2 | 36 |
| D | 54 |
| h3 | 8.5 |
| d(H7) | 14 |
| c | 7 |
| h2 | 38 |
| d5 | 31 |
| l | 34 |
| h5 | 10 |
| MFR Part No. | ELC.140-SST-14-FC3 |
| f | 39 |
