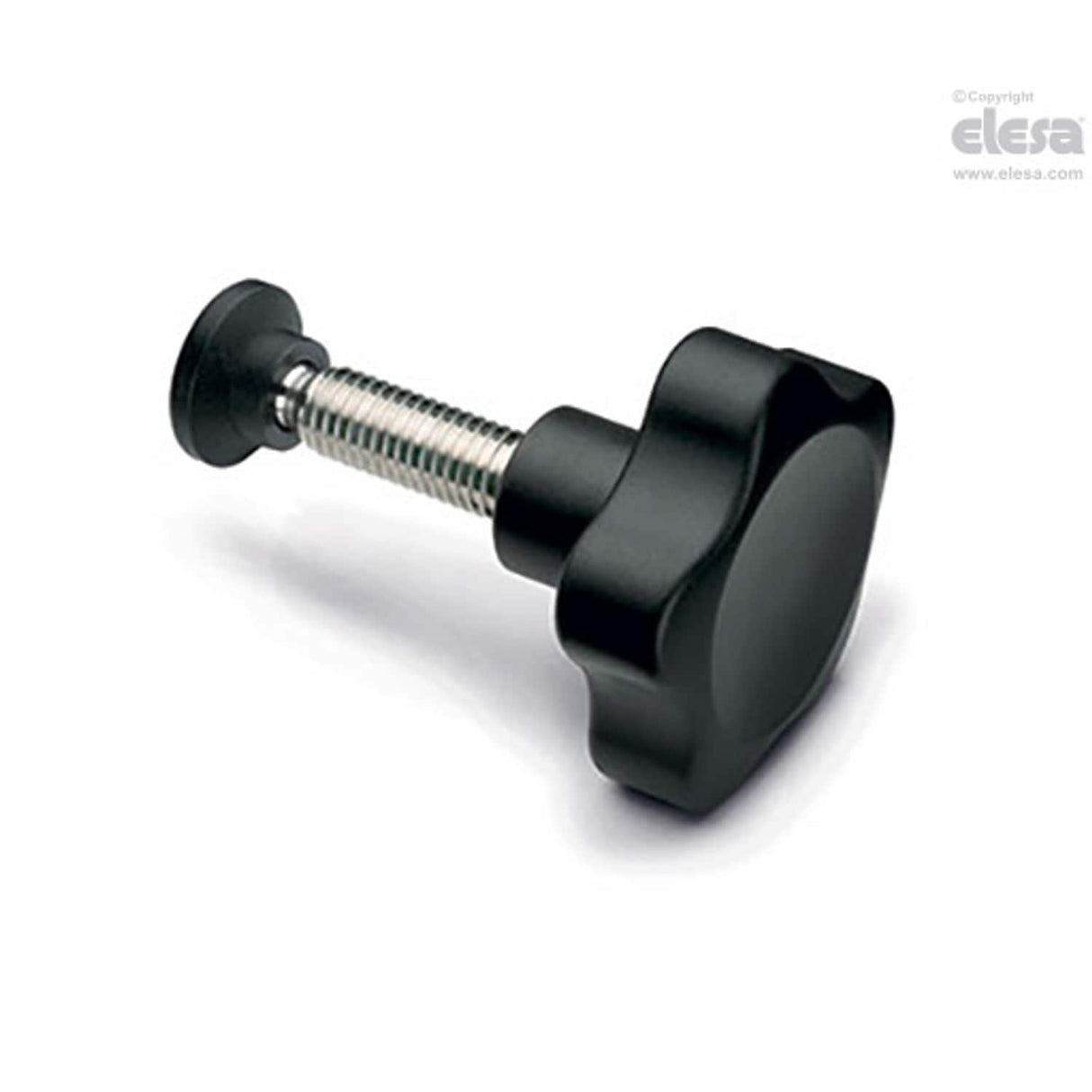

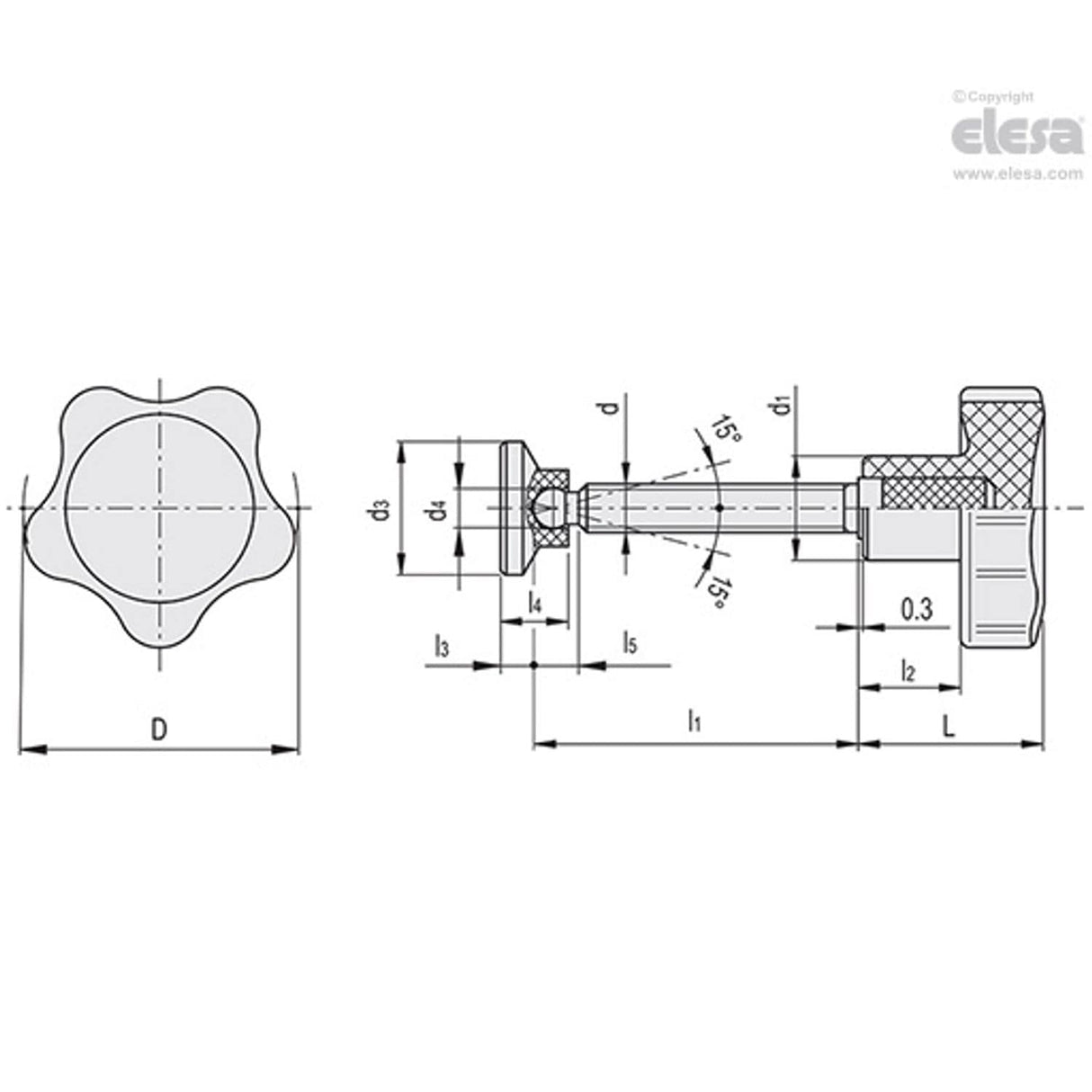

VC.692-SST-p-SV Lobe knobs with locking thrust pad, Technopolymer For product drawing and dimensions refer to pdf Item data sheet.
| MFR Part No. | VC.692/32 SST-p-M6x35-SV15 |
| Diameter | 32mm |
| l3 | 3.5 |
| D | 32 |
| L | 22.5 |
| l1 | 35 |
| d1 | 14 |
| d(6g) | M6 |
| d3 | 15 |
| l4 | 7.5 |
| l2 | 12.5 |
| l5 | 5 |
| d4 | 4.5 |
| Weight | 21g |
