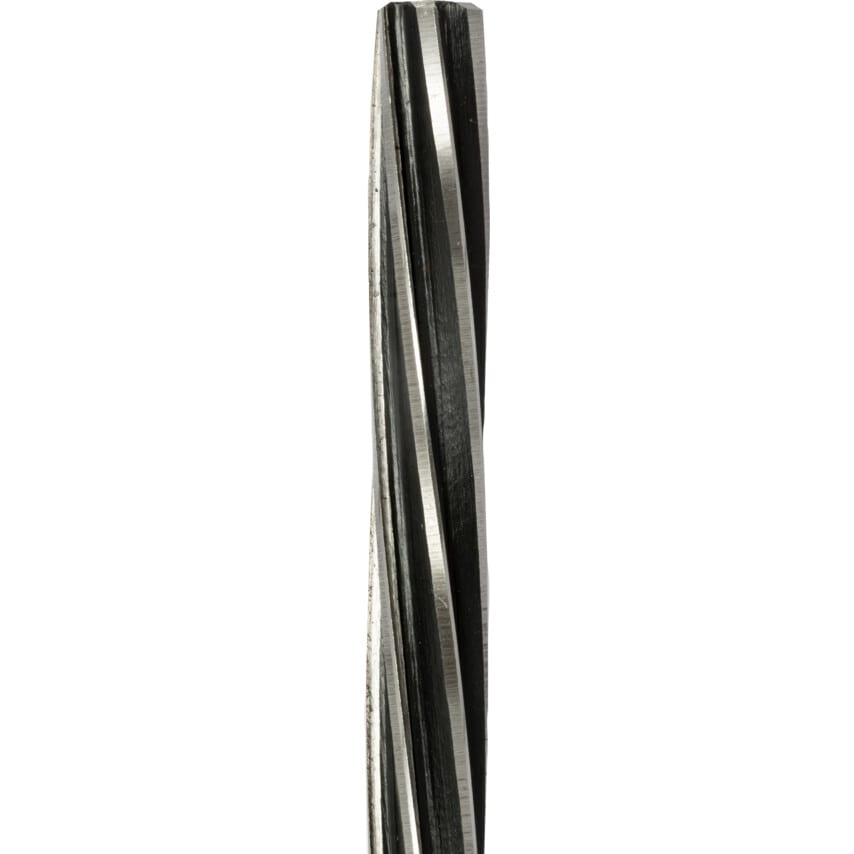

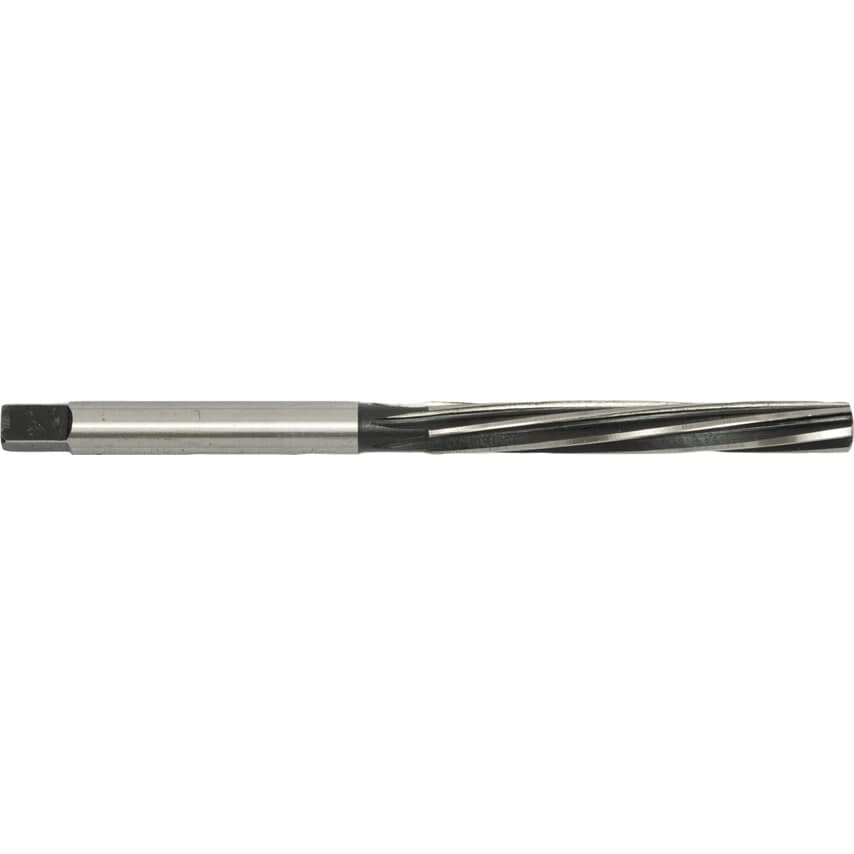

Used to produce a close tolerance surface finish by hand in almost any environment i.e. on site or in a workshop. The HSS straight shank parallel hand reamers are manufactured from hardy high speed steel for effective durability and cutting performance.
Feratures and Benefits
HSS construction for increased durability and prolonged tool lifespan
Produces a close tolerance surface finish
Notes
Manufactured to BS 328 : Part 4 : 1990 and DIN 206B.
Right handed cutting direction
Diameter: ~ up to 3.00. Tolerance: +0.008, -0.007.
Diameter: Over 3.00 ~ up to 6.00. Tolerance: +0.010, -0.005.
Diameter: Over 6.00 ~ up to 10.00. Tolerance: +0.012, -0.006.
Diameter: Over 10.00 ~ up to 18.00. Tolerance: +0.015, -0.008.
Diameter: Over 18.00 ~ up to 30.00. Tolerance: +0.017, -0.009.
Diameter: Over 30.00 ~ up to 50.00. Tolerance: +0.021, -0.012.
| Flute Length | 47mm |
| Cutting Direction | Right Hand |
| Diameter Tolerance | +0.010 to -0.005 |
| Overall Length | 93mm |
| Reamer Diameter | 6mm |
| Standards Met | BS 328-4 | DIN 206B |
| Reamer Type | Fixed |
| Number of Flutes | 6 |
| Flute Type | Left Hand Spiral |
| Material | HSS |
| Shank Type | Straight |
