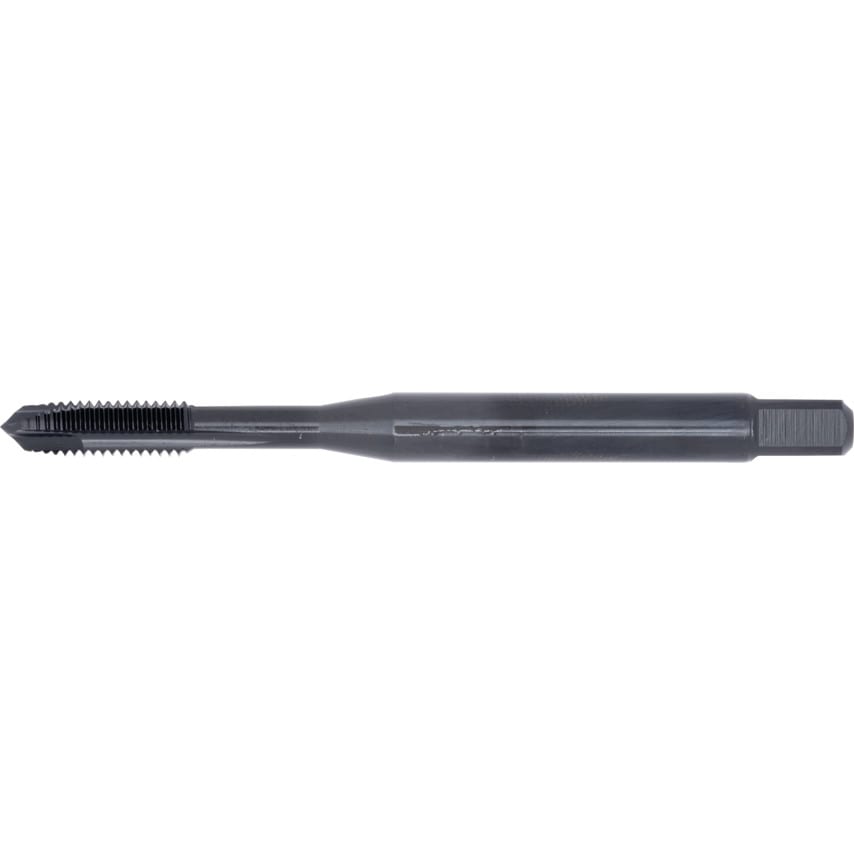

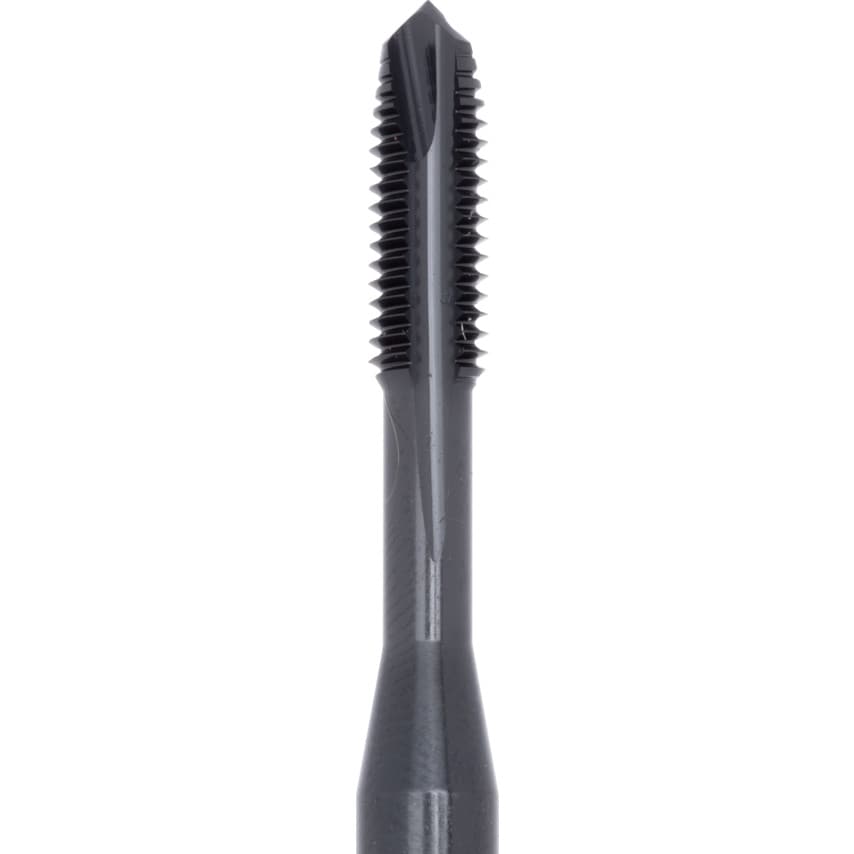

EP01 taps feature a steam tempered HSS with a black oxide coating suitable for use on steel, stainless steel and cast iron. Multi-application machine taps offering superb performance in a wide range of materials. Features and Benefits Spiral point designed for through holes Steam tempered HSS for increased rigidity and tool strength Black oxide coating for improved heat and wear resistanceTypical Applications Steel Stainless steel Cast ironStandards Manufactured to DIN 371 < 10.00mm and DIN 376 > 12.00mm
| Dimensions Standard | DIN 371 |
| Thread Standard | Metric Coarse |
| Number of Flutes | 3 |
| Pitch | 0.80 |
| Tap Type | Spiral Point |
| Tapping Depth | 25.0mm |
| Thread Direction | Right Hand |
| Class of Fit | 6H |
| Thread Length | 13.0mm |
| Ring Colour | No Coloured Ring |
| Series | EP016H |
| Product Type | Machine Taps |
| Overall Length | 70.0mm |
| MFR Part No. | EP01M5 |
| Finish/Coating | Steam Tempered |
| Thread Size | M5 |
| Shank Diameter | 6.0mm |
| Material | Cobalt High Speed Steel |
| Square Width | 4.9mm |
