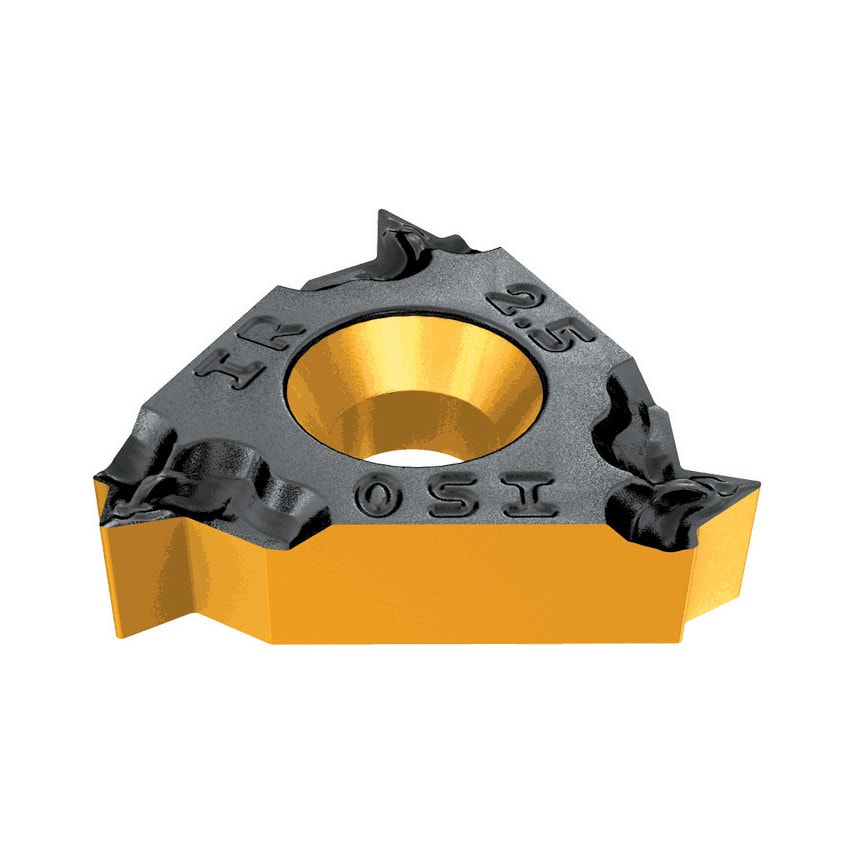

22IR 5.00 ISO Threading Insert Grade IC908

IR/L Metric Internal Threading Inserts IR/L - ground periphery and rake IRB - with a chipformer and peripherally ground IRM - with a chipformer Grade IC908 (P15-P30, M20-M30, K20-K30) PVD coated. Suitable for low to medium speed. IC908 high toughness for interrupted cuts. Excellent notch wear and build up edge resistance.

Manufacturer Grade	IC908
Insert Type	Laydown
Insert Length	22mm
Side to Cutting Tip	2.3mm
Thread Standard	ISO metric
Cutting Direction	Right Hand
ISO Category Grade	K | M | P
Material Application	Cast Iron | Stainless Steels | Steels
Inscribed Circle	12.7in
Thread Profile Type	Full Profile
Finish/Coating	TiAlN
Material	Carbide
Threading Location	Internal
Thread Pitch	5
ISO Cut	K20 to K40 | M20 to M30 | P15 to P30
ISO Designation	22IR 5.00 ISO
Insert Size	22
Thread Height Difference	1.6mm
Number of Cutting Points	3
