CNMG Turning Inserts
80 Rhombic Insert
Insert Grade KC850
(M25-M45)(P25-P45). A tri-phase coating on an extra strong, cobalt-enriched substrate. For heavy cutting of low,medium, and high carbon steels, as well as medium hardness alloy and tool steels. Excellent thermal and mechanical shock resistance makes this grade ideally suited for difficult interrupted cuts.
Chipbreaker: P. Application - Medium

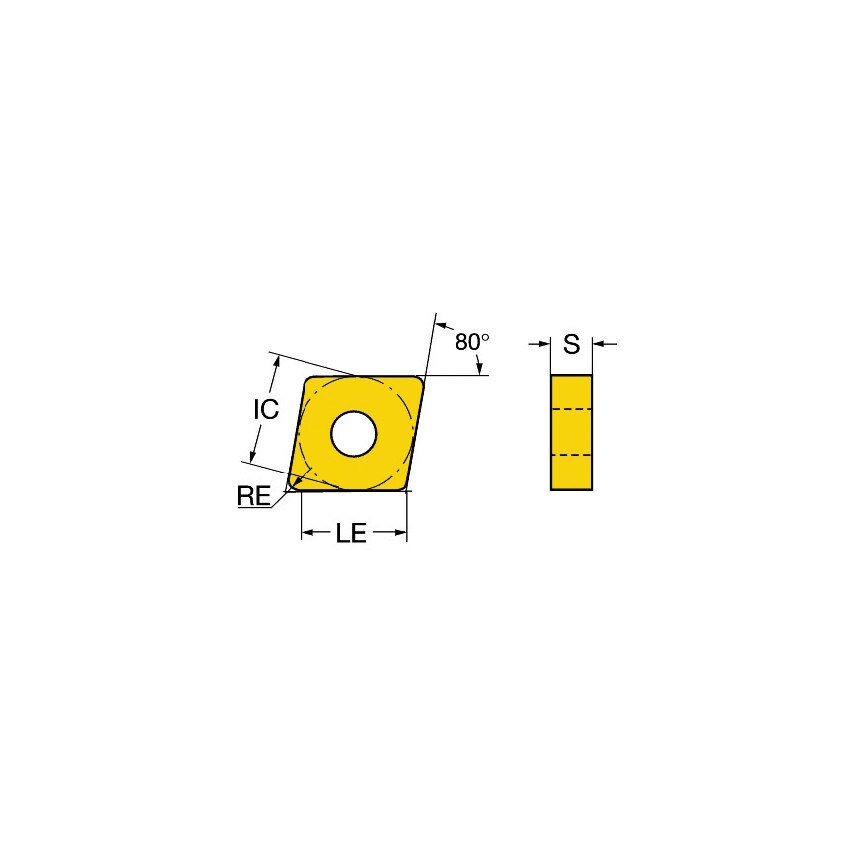

| Inscribed Circle | 12.7mm |
| Manufacturer Grade | KC850 |
| Finish/Coating | TiC/TiCN/TiN |
| Shape | 80\u00b0 Rhombic |
| Material | Carbide |
| Product Type | Turning Inserts |
| ISO Designation | CNMG 120408K |
| ISO Cut | M25 to M45 |
| Insert Style | CNMG |
| Corner Radius | 0.8 |
| Cutting Direction | Neutral |
| Clearance Angle | 0\u00b0 |
| Cutting Edge Length | 12.9mm |
| Pack Quantity | 1 |
| ISO Category Grade | M |
| Material Application | Stainless Steels |
| ISO Category | M | P |
| Insert Size | 120408 |
| MFR Part No. | 1160167 |
| Thickness | 4.76mm |
