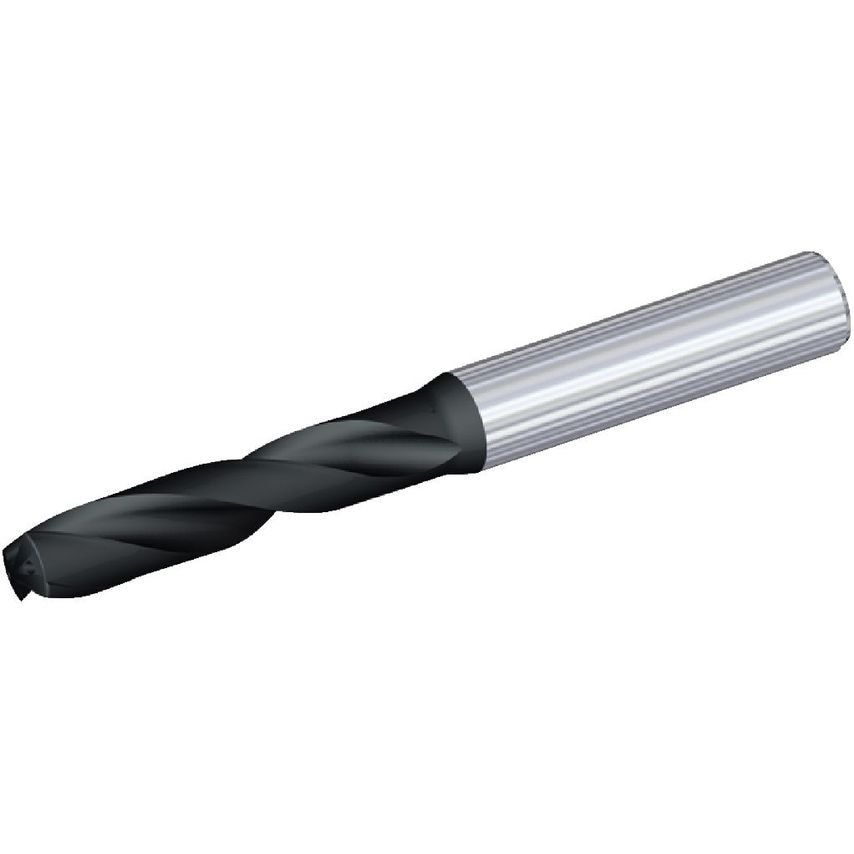

Y-TECH Drills Difficult-to-Machine Materials Through CoolantHigh-Performance Solid Carbide Drills
| Assembly Length | 113.08mm |
| Coolant Diameter | 2.4000mm (0.0315in) |
| MFR Part No. | 3640808 |
| Helix Angle | 29.523 |
| Unit Measured | Metric |
| Material | Carbide |
| Clamping Length | 50mm |
| Functional Length | 163.0800mm |
| Adapter Style | Straight-Cylindrical |
| Drill Depth | 85mm | 85.0000mm |
| Primary Material | Stainless Steel |
| Drill Diameter | 21.0000mm |
| Finish/Coating | AlTiN |
| Flute Length | 112mm | 112.0000mm |
| Drill Diameter Tolerance | 0.008000 to 0.029000mm |
| Hand Preference | Right |
| Overall Length | 167mm | 167.0000mm |
| Number of Flutes | 2 |
| Coolant Delivery | Concentric Axial Coolant;Off-center Axial Coolant |
| Coolant Supplied | Yes |
| Helix Type | Right Hand Helix/Flute |
| Shank Length | 50.0000mm |
| Adapter Type | Cylindrical |
| Adapter / Shank / Bore Diameter | 20.0000mm |
| Flute Construction | Helical Flute |
| Drill Point | 3.92mm |
