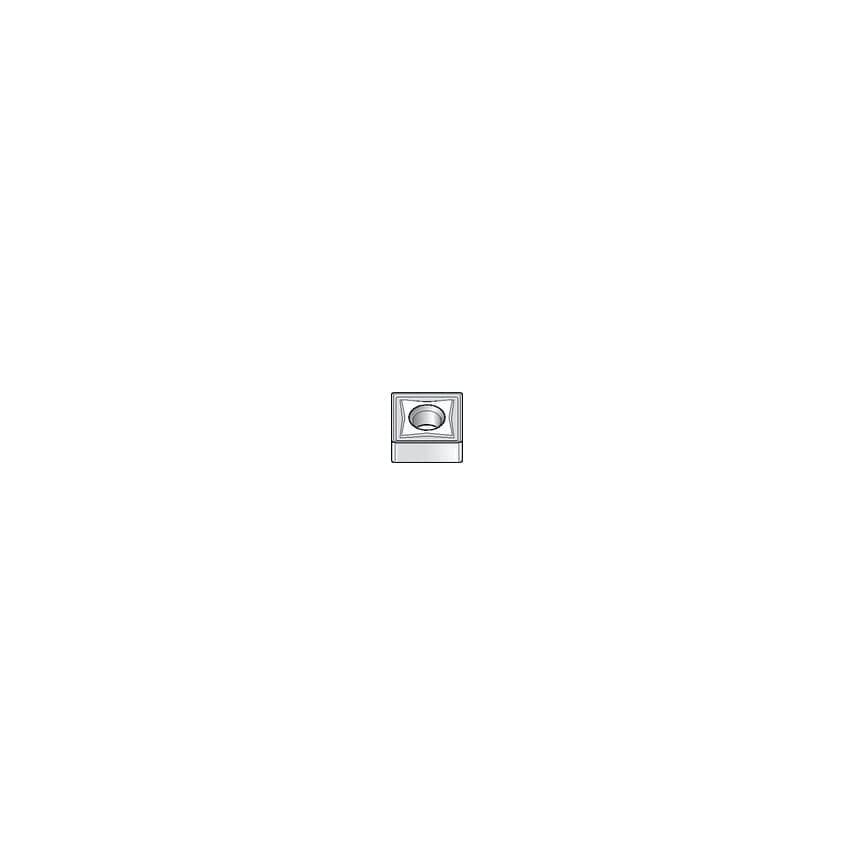

SNMG Turning Inserts
Square Insert
Insert Grade KC850
(M25-M45)(P25-P45). A tri-phase coating on an extra strong, cobalt-enriched substrate. For heavy cutting of low,medium, and high carbon steels, as well as medium hardness alloy and tool steels. Excellent thermal and mechanical shock resistance makes this grade ideally suited for difficult interrupted cuts.
| Thickness | 4.76mm |
| Manufacturer Grade | KC850 |
| Insert Size | 120408 |
| Shape | Square |
| Cutting Edge Length | 12.7mm |
| Clearance Angle | 0\u00b0 |
| Product Type | Turning Inserts |
| Finish/Coating | TiC/TiCN/TiN |
| Pack Quantity | 1 |
| MFR Part No. | 1160254 |
| Insert Style | SNMG |
| Inscribed Circle | 12.7mm |
| ISO Cut | M25 to M45 |
| ISO Category | M | P |
| Material Application | Stainless Steels |
| Corner Radius | 0.8 |
| Cutting Direction | Neutral |
| Material | Carbide |
| ISO Category Grade | M |
| ISO Designation | SNMG 120408 |
