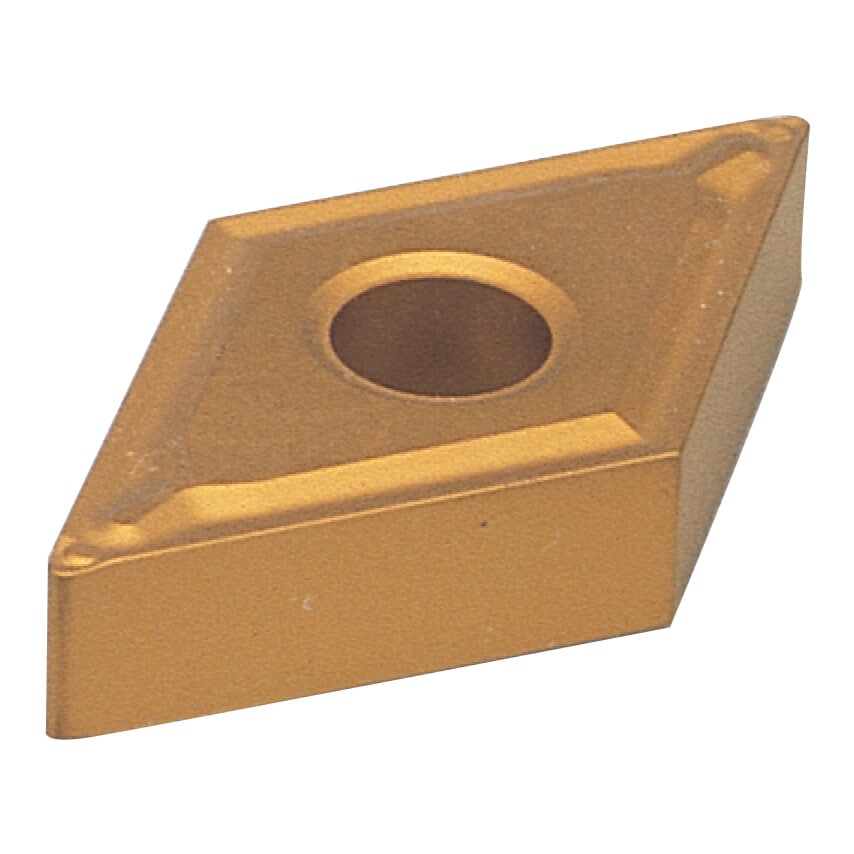

DNMG Turning Inserts
55 Rhombic Insert
MC7015 - ISO M05 - M15 CVD coated grade for high efficiency turning of austenitic stainless steels. Excellent wear resistance in high speed cutting conditions. TiCN and micro grain Al2O3 coating delivers balanced wear and chipping resistance. Specially engineered carbide substrate provides excellent resistance to plastic deformation. Specifically designed for 300 series stainless steel applications.
| Pack Quantity | 1 |
| Thickness | 4.76mm |
| Insert Size | 150408 |
| ISO Category | M |
| ISO Cut | M05 to M15 |
| Material | Carbide |
| Chipbreaker | MM |
| Material Application | Stainless Steels |
| MFR Part No. | 90031481 |
| Insert Style | DNMG |
| Corner Radius | 0.8 |
| Cutting Edge Length | 15mm |
| ISO Designation | DNMG 150408-MM |
| Shape | 55\u00b0 Rhombic |
| Clearance Angle | 0\u00b0 |
| Inscribed Circle | 12.7mm |
| ISO Category Grade | M |
| Cutting Direction | Neutral |
| Finish/Coating | Al2O3+TiCN+TiC |
| Product Type | Inserts |
| Manufacturer Grade | MC7015 |
