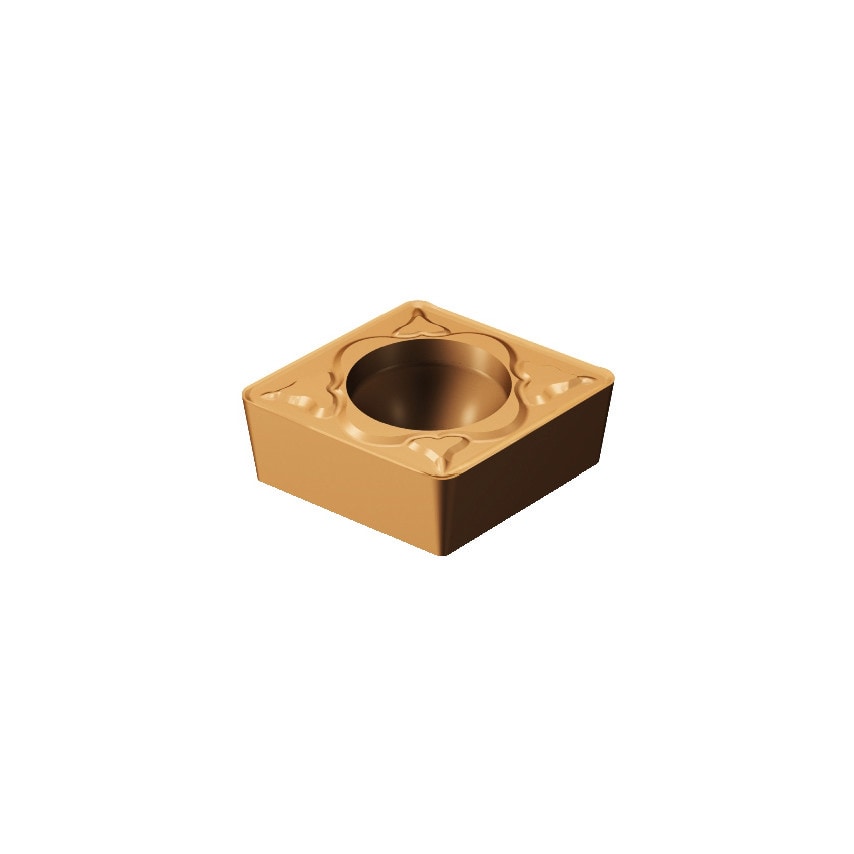

CCMT Turning Inserts
CoroTurn107 Turning Inserts for external and internal machining of small and slender components.
80 Rhombic Insert
Insert Grade 1125
(P25)(M25)(N25)(S25) PVD (Ti,Al)N+(Al,Cr)2O3 coated grade for use on Steel,Stainless Steel,Non-ferrous material,Heat Resistant Super Alloys
| Chipbreaker | MM |
| MFR Part No. | 12342783 |
| Material Application | Nonferrous Metals | Nonferrous Metals | Stainless Steels | Steels |
| ISO Category Grade | M | N | P | S |
| Shape | 80\u00b0 Rhombic |
| ISO Cut | M25 | N25 | P25 | S25 |
| Pack Quantity | 1 |
| Insert Style | CCMT |
| Cutting Direction | Neutral |
| Thickness | 2.38mm |
| Insert Size | 060204 |
| Finish/Coating | TiAlN+AlCr2O3 |
| Cutting Edge Length | 6.5mm |
| Inscribed Circle | 6.35mm |
| Product Type | Turning Inserts |
| Clearance Angle | 7\u00b0 |
| Corner Radius | 0.4 |
| Manufacturer Grade | 1125 |
| ISO Category | M | N | P | S |
| ISO Designation | CCMT 060204-MM |
| Material | Carbide |
