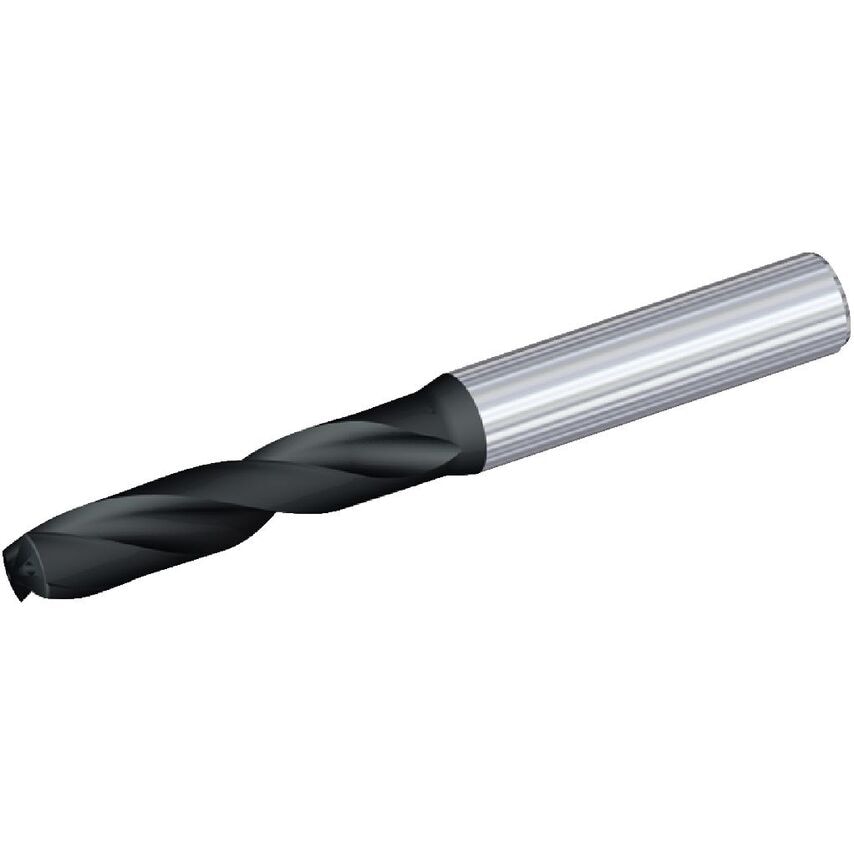

Y-TECH Drills Difficult-to-Machine Materials Through CoolantHigh-Performance Solid Carbide Drills

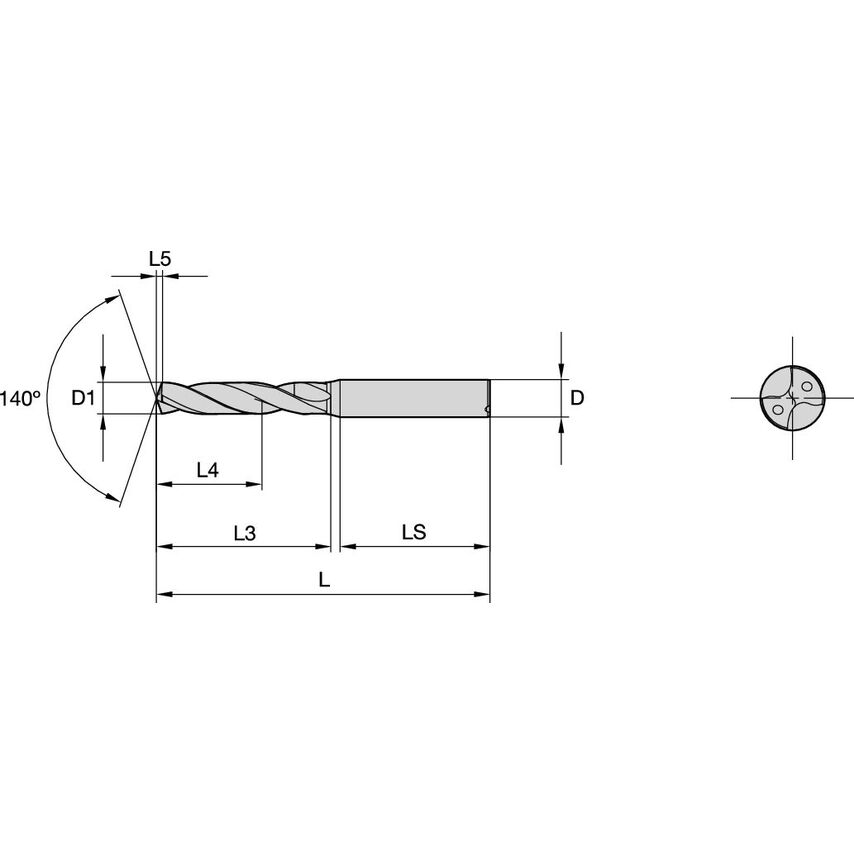

| Drill Point | 1.58mm |
| Material | Carbide |
| Drill Diameter | 8.2000mm |
| Coolant Supplied | Yes |
| Primary Material | Stainless Steel |
| Hand Preference | Right |
| Unit Measured | Metric |
| Number of Flutes | 2 |
| Functional Length | 101.4200mm |
| Adapter Type | Cylindrical |
| Overall Length | 103mm | 103.0000mm |
| Flute Length | 61mm | 61.0000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Helix Type | Right Hand Helix/Flute |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Drill Depth | 49mm | 49.0000mm |
| Assembly Length | 61.42mm |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Adapter Style | Straight-Cylindrical |
| MFR Part No. | 3755835 |
| Clamping Length | 40mm |
| Flute Construction | Helical Flute |
| Shank Length | 40.0000mm |
| Finish/Coating | AlTiN |
