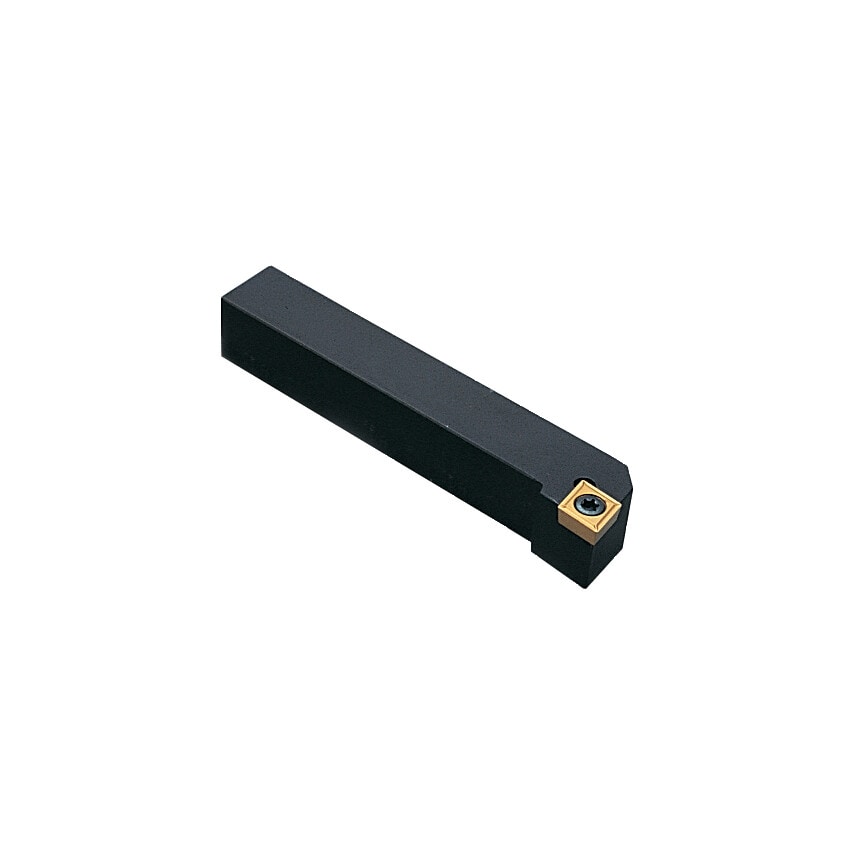

95 approach for 7 positive 80 rhombic inserts.

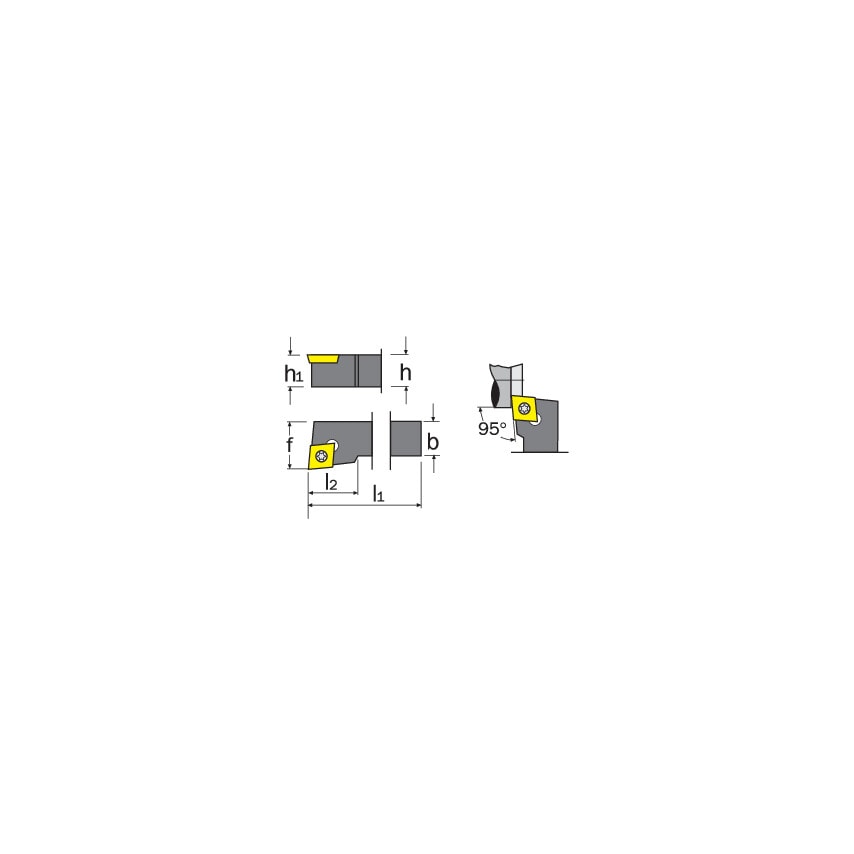

| ISO Designation | SDJCR 1010E07 |
| Insert Style | CC_T |
| Coolant Delivery | External |
| Shank Width (b) | 25mm |
| Approach Angle | 95\u00b0 |
| Head Length (l2) | 25mm |
| Set Type | Individual Toolholder |
| Cutting Height (h1) | 25mm |
| Overall Length (l1) | 150mm |
| Toolholder Style | SDJC |
| Clearance Angle | 7\u00b0 |
| Cutting Direction | Right Hand |
| Insert Inscribed Circle | 12.7mm |
| Shank Material | Steel |
| MFR Part No. | SCLCL2525M12 |
| Shank Style | Offset |
| Insert Cutting Edge Length | 12mm |
| Insert Holding Type | Screw-On |
| Insert Size | 1204 |
| Shank Height (h) | 25mm |
| Neck Length | 25mm |
| Side to Cutting Tip (f) | 32mm |
| Insert Shape | 55\u00b0 Rhombic |
