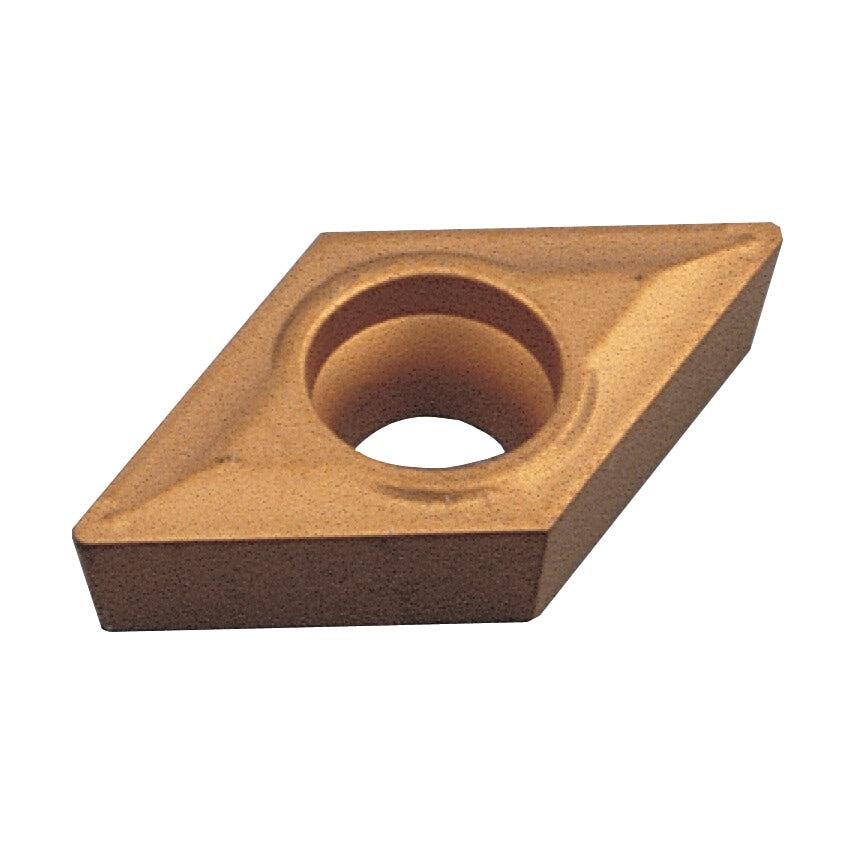

62.5 approach for 7 positive 55 rhombic inserts.
| MFR Part No. | SDNCN1010E07 |
| Coolant Delivery | External |

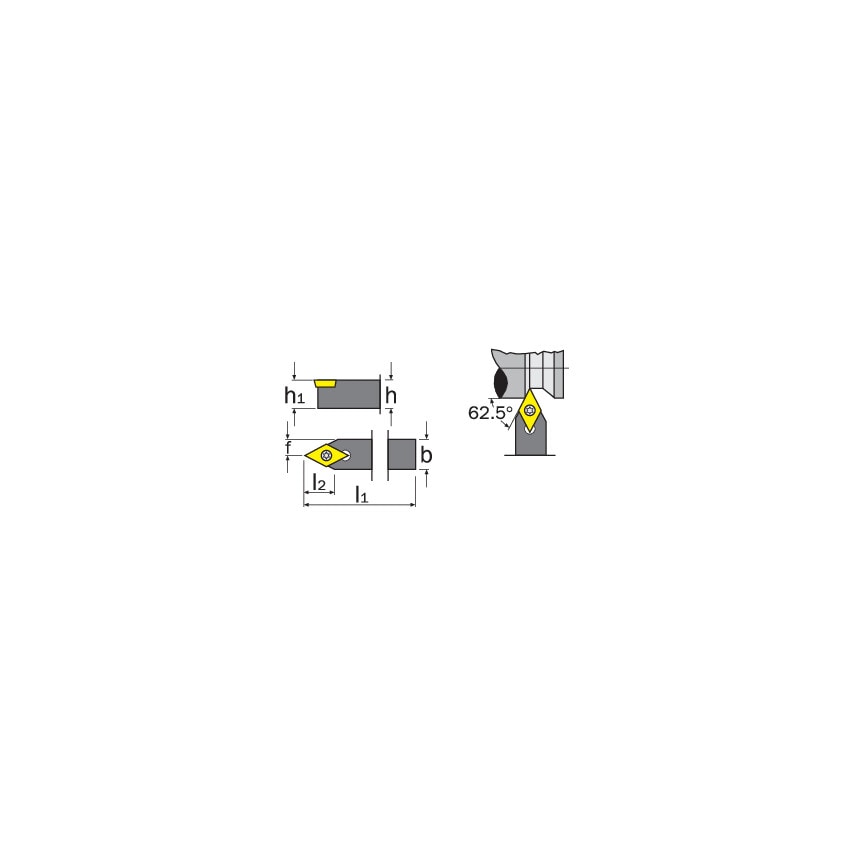

| Side to Cutting Tip (f) | 5mm |
| Set Type | Individual Toolholder |
| Neck Length | 16mm |
| Insert Inscribed Circle | 6.35mm |
| ISO Designation | SDNCN 1212F07 |
| Toolholder Style | SDNC |
| Shank Height (h) | 10mm |
| Clearance Angle | 7\u00b0 |
| Approach Angle | 62.5\u00b0 |
| Head Length (l2) | 16mm |
| Insert Shape | 55\u00b0 Rhombic |
| Shank Style | Straight |
| Shank Material | Steel |
| Insert Cutting Edge Length | 7mm |
| Insert Style | DC_T |
| Shank Width (b) | 10mm |
| Overall Length (l1) | 70mm |
| Cutting Direction | Neutral |
| Cutting Height (h1) | 12mm |

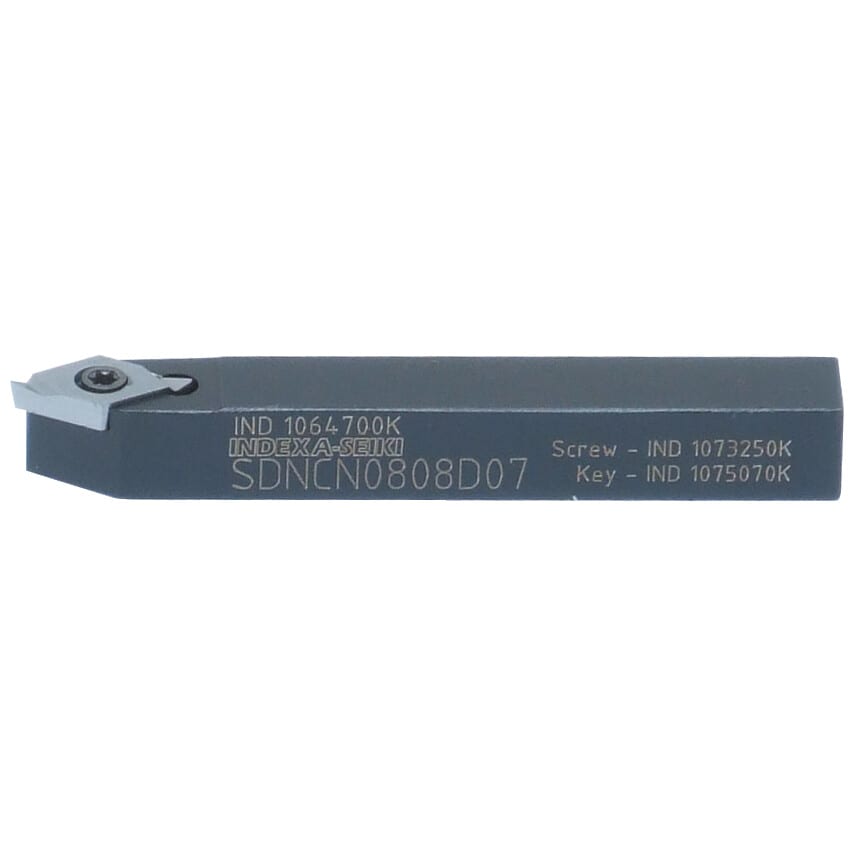

| Product Type | External Toolholder |
| Insert Size | 702 |
| Insert Holding Type | Screw-On |
