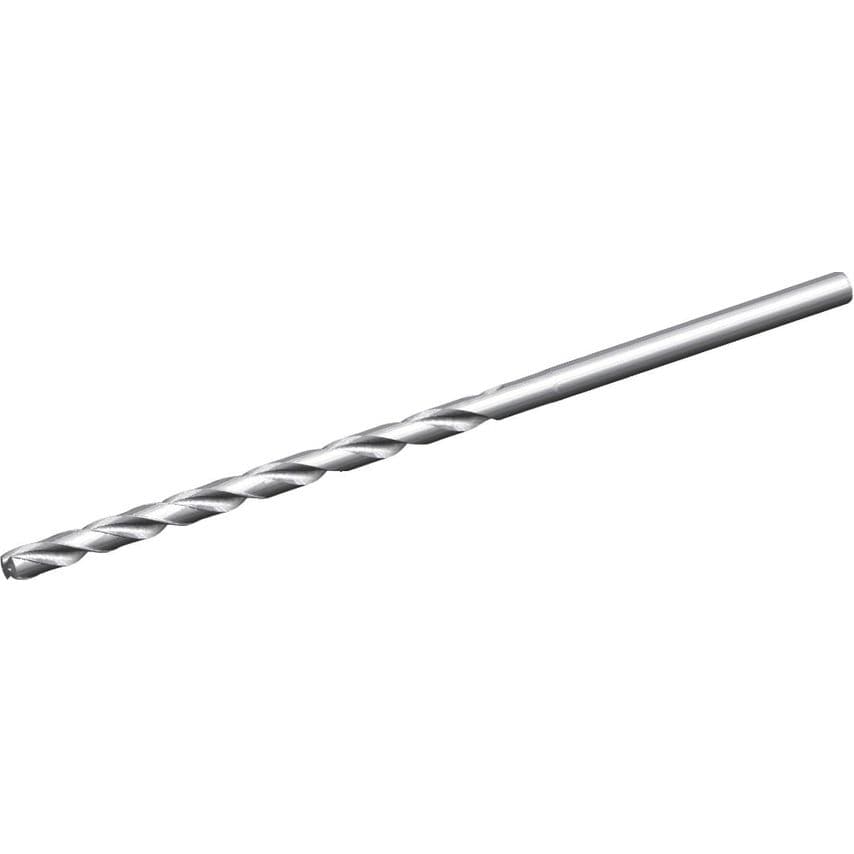

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Coolant Diameter | 1.4400mm (0.0882in) |
| Drill Diameter | 9.5000mm |
| Adapter Style | Straight-Cylindrical |
| Overall Length | 219mm | 219.0000mm |
| Unit Measured | Metric |
| Functional Length | 217.2500mm |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Number of Flutes | 2 |
| Helix Angle | 28.746 |
| Helix Type | Right Hand Helix/Flute |
| Coolant Supplied | Yes |
| Hand Preference | Right |
| Shank Length | 44.0000mm |
| Clamping Length | 40mm |
| Adapter Type | Cylindrical |
| Material | Carbide |
| Finish/Coating | Uncoated |
| Coolant Delivery | Off-center Axial Coolant |
| Flute Length | 170mm | 170.0000mm |
| Flute Construction | Helical Flute |
| Primary Material | Non-Ferrous Materials |
| Drill Point | 1.75mm |
| Drill Depth | 149mm | 149.0000mm |
| Assembly Length | 180.725mm |
| MFR Part No. | 3867768 |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
