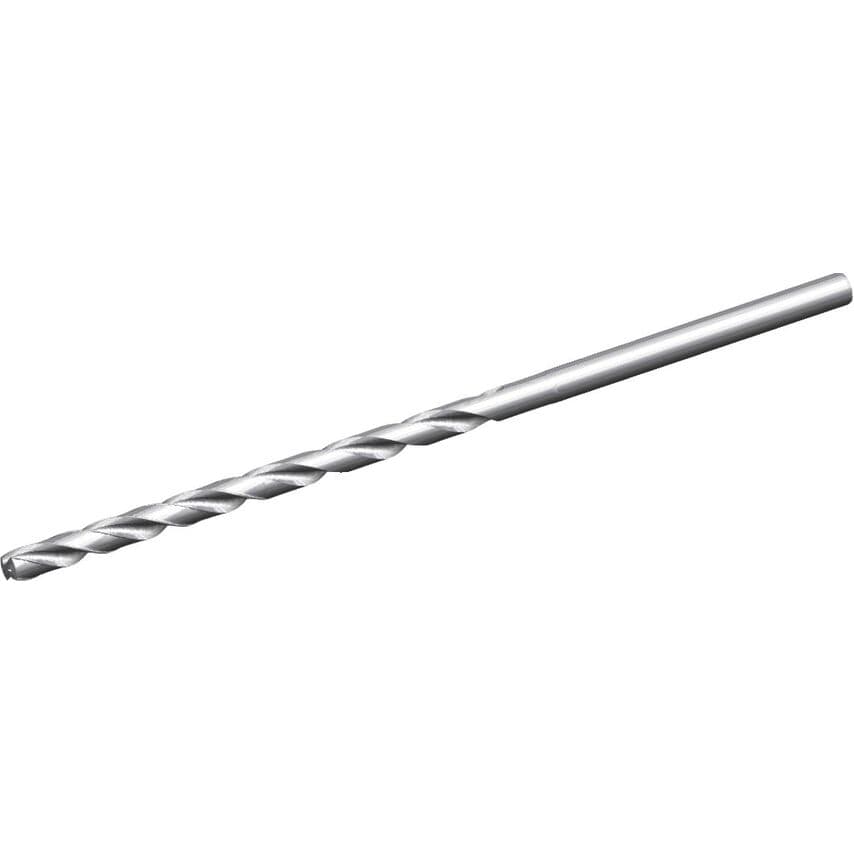

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Coolant Delivery | Off-center Axial Coolant |
| Drill Diameter | 9.0000mm |
| MFR Part No. | 3867767 |
| Flute Construction | Helical Flute |
| Primary Material | Non-Ferrous Materials |
| Helix Angle | 30.001 |
| Adapter Style | Straight-Cylindrical |
| Assembly Length | 161.815mm |
| Material | Carbide |
| Adapter / Shank / Bore Diameter | 9.0000mm |
| Clamping Length | 36.525mm |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
| Finish/Coating | Uncoated |
| Helix Type | Right Hand Helix/Flute |
| Coolant Supplied | Yes |
| Coolant Diameter | 1.1300mm (0.0335in) |
| Functional Length | 198.3400mm |
| Hand Preference | Right |
| Number of Flutes | 2 |
| Drill Depth | 135mm | 135.0000mm |
| Flute Length | 155mm | 155.0000mm |
| Overall Length | 200mm | 200.0000mm |
| Unit Measured | Metric |
| Drill Point | 1.66mm |
| Adapter Type | Cylindrical |
| Shank Length | 42.0000mm |
