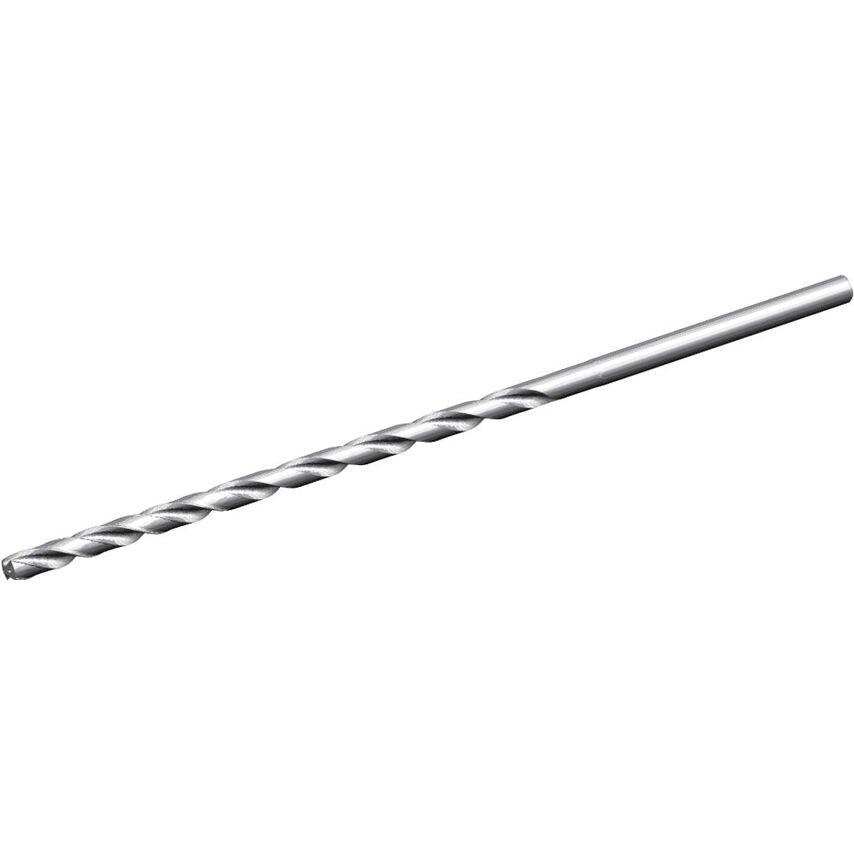

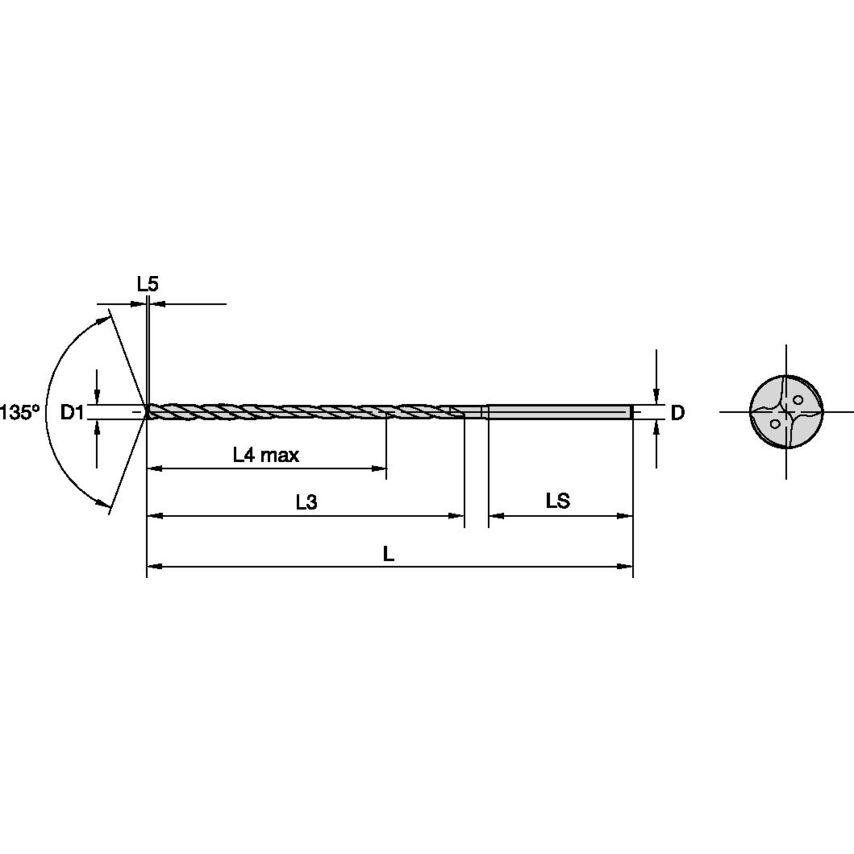

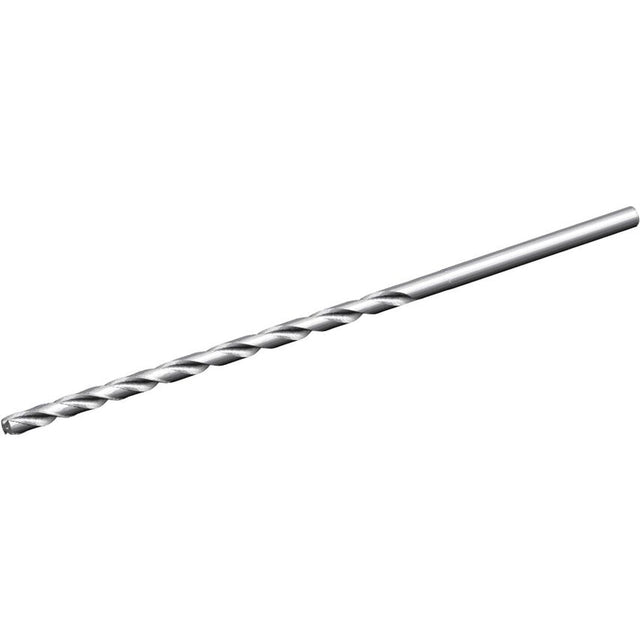

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Adapter / Shank / Bore Diameter | 7.0000mm |
| Clamping Length | 18mm |
| Drill Depth | 137mm | 137.0000mm |
| Finish/Coating | Uncoated |
| Helix Angle | 28.196 |
| Number of Flutes | 2 |
| Adapter Type | Cylindrical |
| Shank Length | 38.0000mm |
| Unit Measured | Metric |
| Material | Carbide |
| Coolant Diameter | 0.8500mm (0.0220in) |
| Drill Point | 1.2mm |
| MFR Part No. | 3867814 |
| Assembly Length | 157.8mm |
| Overall Length | 197mm | 197.0000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Flute Length | 152mm | 152.0000mm |
| Drill Diameter | 6.5000mm |
| Hand Preference | Right |
| Adapter Style | Straight-Cylindrical |
| Flute Construction | Helical Flute |
| Primary Material | Non-Ferrous Materials |
| Coolant Supplied | Yes |
| Helix Type | Right Hand Helix/Flute |
| Functional Length | 195.8000mm |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
