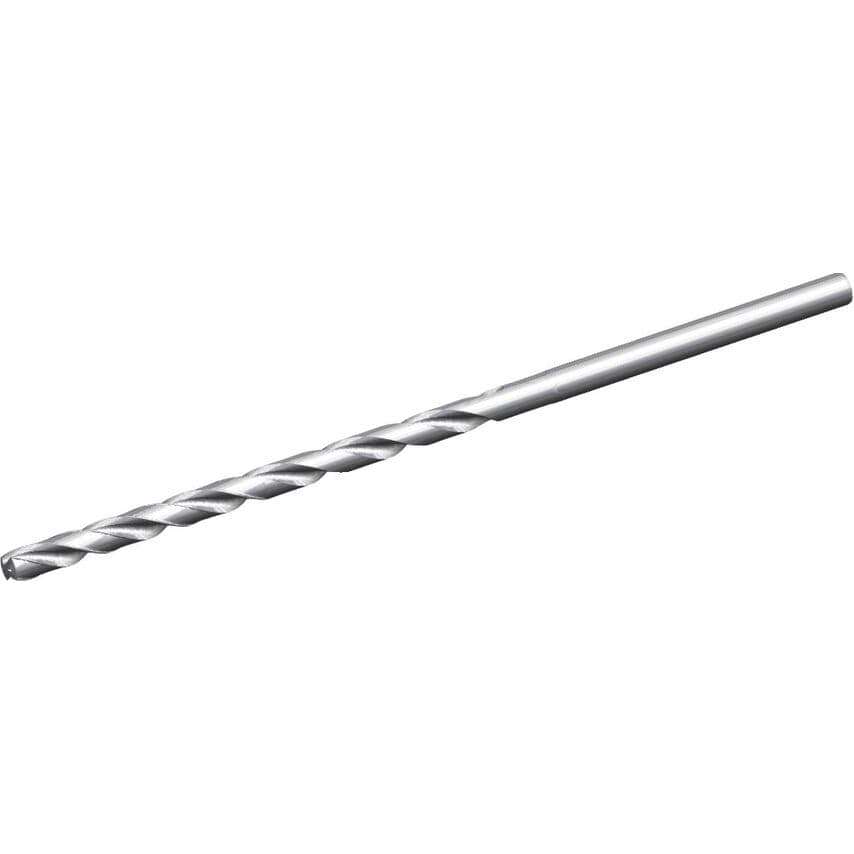

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Functional Length | 236.0600mm |
| Adapter / Shank / Bore Diameter | 11.0000mm |
| Shank Length | 46.0000mm |
| Adapter Type | Cylindrical |
| Finish/Coating | Uncoated |
| Number of Flutes | 2 |
| Flute Length | 187mm | 187.0000mm |
| Flute Construction | Helical Flute |
| Overall Length | 238mm | 238.0000mm |
| Helix Angle | 29.628 |
| Assembly Length | 199.535mm |
| Coolant Diameter | 1.6000mm (0.0220in) |
| Adapter Style | Straight-Cylindrical |
| Helix Type | Right Hand Helix/Flute |
| Coolant Delivery | Off-center Axial Coolant |
| Hand Preference | Right |
| Clamping Length | 36.525mm |
| MFR Part No. | 3891662 |
| Drill Diameter | 10.5000mm |
| Drill Point | 1.94mm |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Primary Material | Non-Ferrous Materials |
| Coolant Supplied | Yes |
| Unit Measured | Metric |
| Material | Carbide |
| Drill Depth | 164mm | 164.0000mm |
