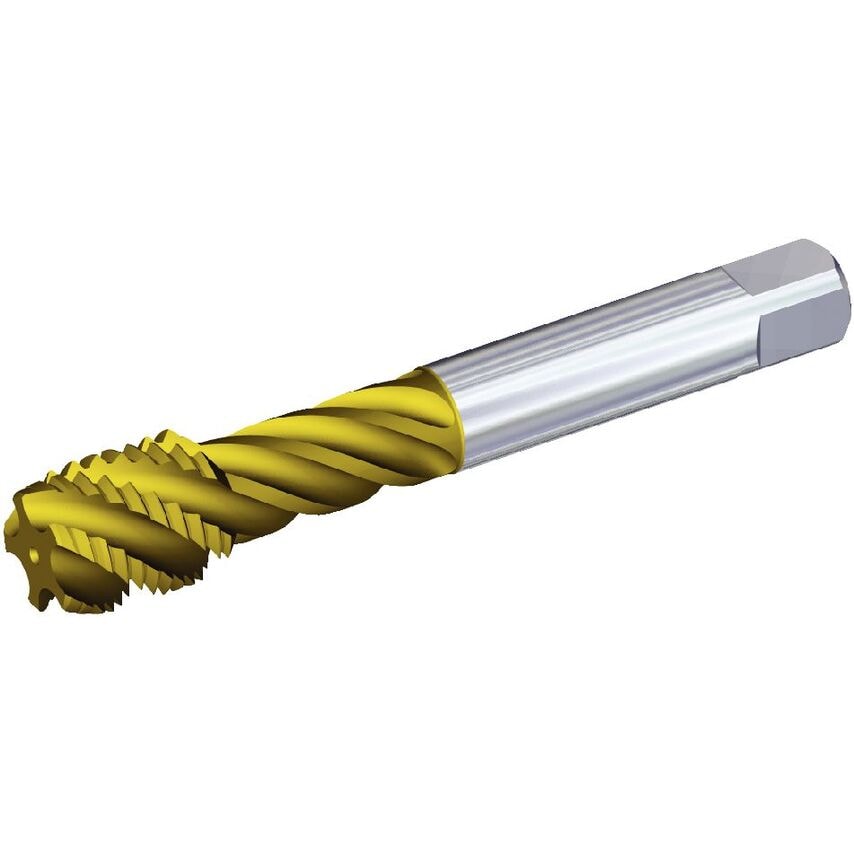

T630 - DIN 371, 374, and 376 - Form C Semi-Bottoming Chamfer - Metric - For Steel and Stainless Steel
| Thread Diameter | 3mm |
| Hand Preference | Right |
| MFR Part No. | 3868825 |
| Adapter Type Machine Side | Cylindrical |
| Cutting Tool Material | Hss-E-Pm |
| Neck Length | 10mm | 10.0000mm |
| Thread Length | 8.0000mm |
| Unit Measured | Metric |
| Tap Design | S - HSS |
| Tap Application | 2 - Blind Hole |
| Overall Length | 56.0000mm | 56mm |
| Number of Flutes | 3 |
| Thread Pitch | 0.5mm |
| Thread Pitch Style | Metric |
