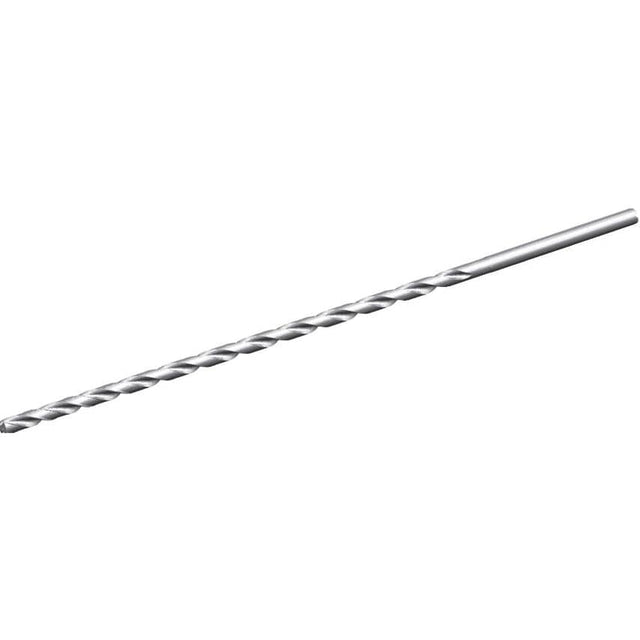

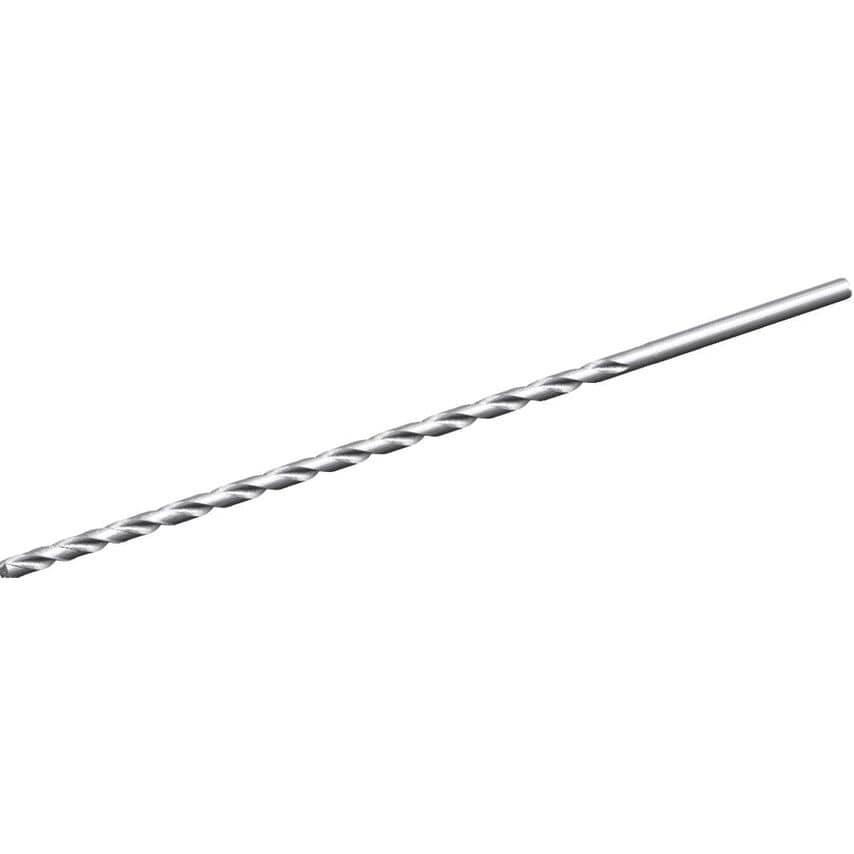

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Helix Type | Right Hand Helix/Flute |
| Clamping Length | 13.5mm |
| Drill Diameter Tolerance | -0.012000 to 0.000000mm |
| Overall Length | 199mm | 199.0000mm |
| Unit Measured | Metric |
| Shank Length | 34.0000mm |
| MFR Part No. | 3867873 |
| Material | Carbide |
| Coolant Supplied | Yes |
| Flute Construction | Helical Flute |
| Number of Flutes | 2 |
| Flute Length | 162mm | 162.0000mm |
| Adapter Style | Straight-Cylindrical |
| Assembly Length | 164.077mm |
| Primary Material | Non-Ferrous Materials |
| Drill Depth | 150mm | 150.0000mm |
| Functional Length | 198.0770mm |
| Drill Point | 0.923mm |
| Drill Diameter | 5.0000mm |
| Adapter Type | Cylindrical |
| Coolant Diameter | 0.4900mm (0.0472in) |
| Helix Angle | 29.997 |
| Adapter / Shank / Bore Diameter | 5.0000mm |
| Hand Preference | Right |
| Finish/Coating | Uncoated |
| Coolant Delivery | Off-center Axial Coolant |
