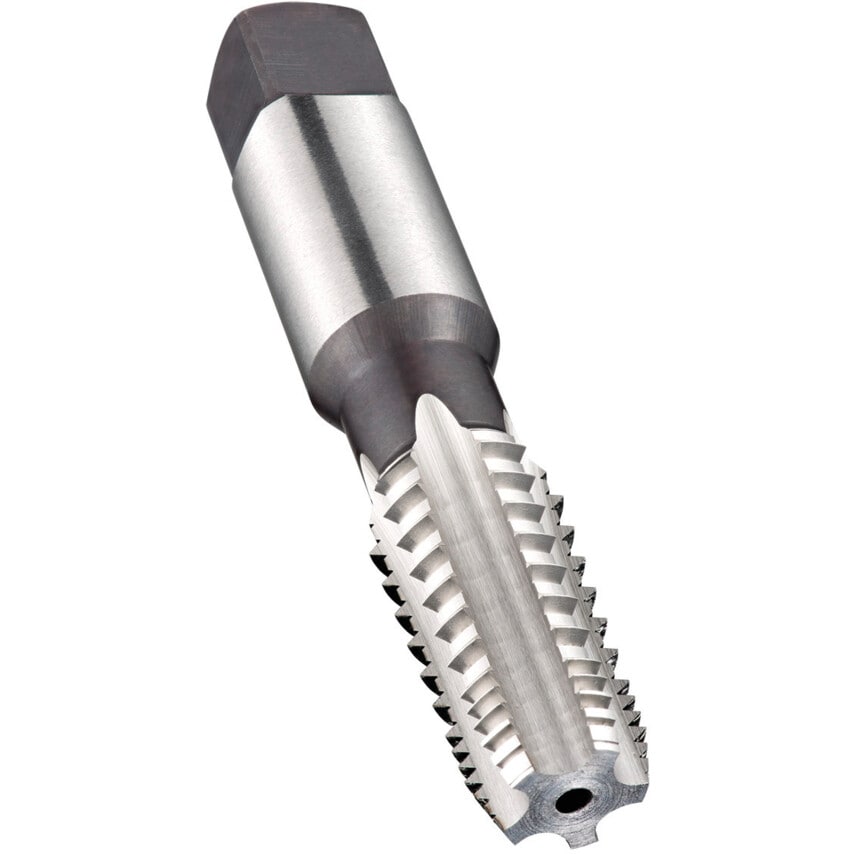

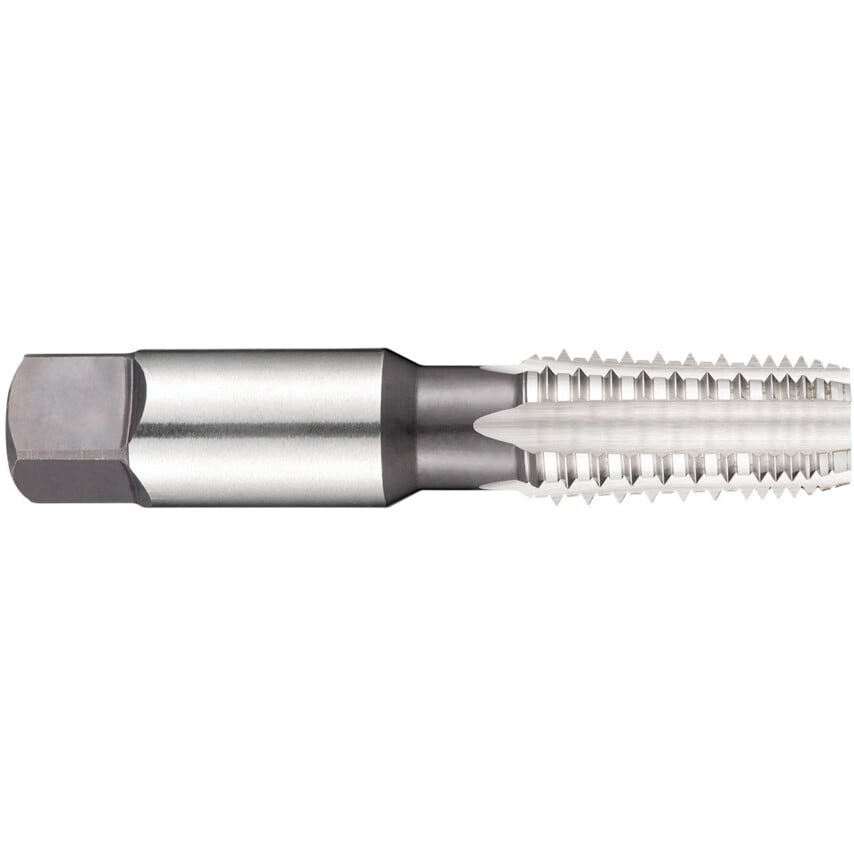

Series E711 HSS Straight Flute Tap - Interrupted Thread - NPT - Inch
Interrupted thread design for chip evacuation.
Removal of every other thread allows more coolant deeper into the hole .
Helps to eliminate torn threads and re-cutting of chips.
Ideal for use in soft, ductile materials or those producing
long, continuous chips.
Manfactured to ANSIB94.9
| Tap Type | Interrupted Thread |
| ISO Category | K | N | P |
| Thread Direction | Right Hand |
| Overall Length | 70.0mm |
| Shank Diameter | 11.1mm |
| Material | HSS |
| Finish/Coating | Bright |
| Thread Length | 19mm |
| Series | E711 |
| Square Width | 8.3mm |
| Chamfer | Plug |
| Class of Fit | Normal |
| Number of Flutes | 5 |
| Thread Size | 1/8in |
| Teeth per Inch | 27 |
| MFR Part No. | 5977664 |
| Dimensions Standard | ANSI B94.9 |
| Thread Standard | NPT |
