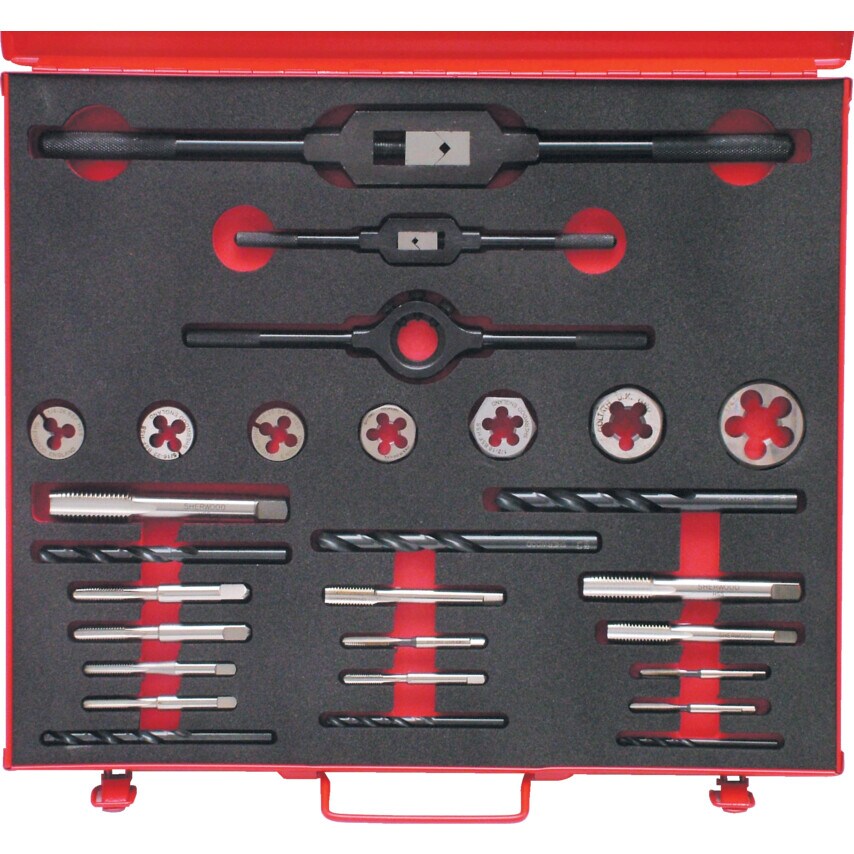

UNC Threading Set No.10 - 3/4 UNC:
HSSGT Straight Flute Taps
Taper: No. 10 x 24, 1/4 x 20, 5/16 x 18, 3/8 x 16.
Second: 7/16 x 14, 1/2 x 13, 5/8 x 11, 3/4 x 10.
Plug: No. 10 x 24, 1/4 x 20, 5/16 x 18, 3/8 x 16.
Bar Type Tap Wrenches: 1/16 - 1/4 and 1/4 - 3/4.
Tapping Drills to suit: HSS S/S. 3.90, 5.10, 6.60, 8.00, 9.40, 10.80mm
HSS 1 O/D Dies: 1/4 x 20, 5/16 x 18, 3/8 x 16.
Diestock: 1 O/D.
HSS Die Nuts: 7/16 x 14, 1/2 x 13, 5/8 x 11, 3/4 x 10.
| Tap Type | Straight Flute |
| Kit Type | Tap |
| Thread Direction | Right Hand |
| Tap Finish/Coating | Uncoated |
| Thread Size Range | #10 to 3/4 |
| Includes | (2) Bar Type Tap Wrenches |
| 1/16\u201d - 1/4\u201d | (3) HSS Dies | 1/4\u201d-20 |
| 3/8\u201d-16 | (4) HSS Die Nuts | 7/16\u201d-14 |
| 3/4\u201d-10 | (4) Straight Flute Taper Plug | #10-24 |
| 3/8\u201d-16 | (4) Straight Flute Taper Second | 7/16\-14 |
| 3/4\-10 | (4) Straight Flute Taper Taps | #10-24 |
| 3/8\u201d-16 | (6) HSS Jobber Drills | 3.90mm |
| 10.80mm | Carrying Cases | Die Stock | 1\u201d O/D |
| Number of Dies | 7 |
| Number of Taps | 12 |
| Chamfer | Plug | Second | Taper |
| Thread Standard | UNC |
| Number of Pieces | 28 |
| Smallest Thread Size | #10 |
| Largest Thread Size | 3/4\ |
| Tap Wrench Type | Straight-Handle Bar |
| Die Hex Width | 1.01mm | 1.10mm | 1.30mm | 1.48mm |
| Tap Dimensions Standard | BS 328/DIN 338N | BS1127 | DIN 225 | DIN 1814 | ISO 529 |
| Die Type | Hex Die Nut | Round Die |
| Tap Material | High Speed Steel |
