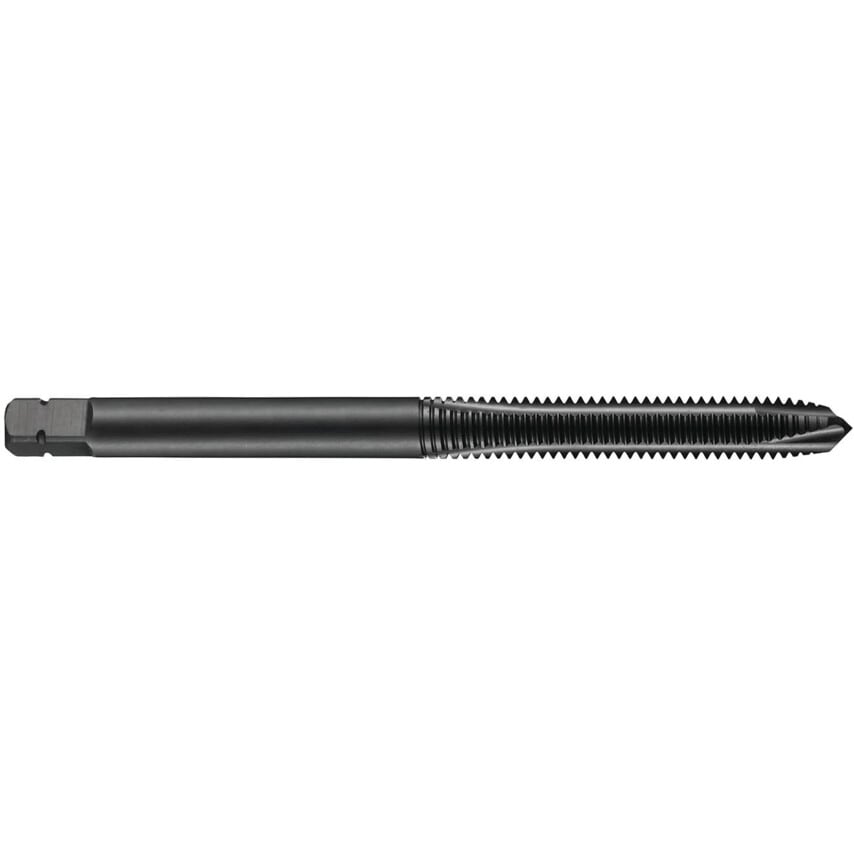

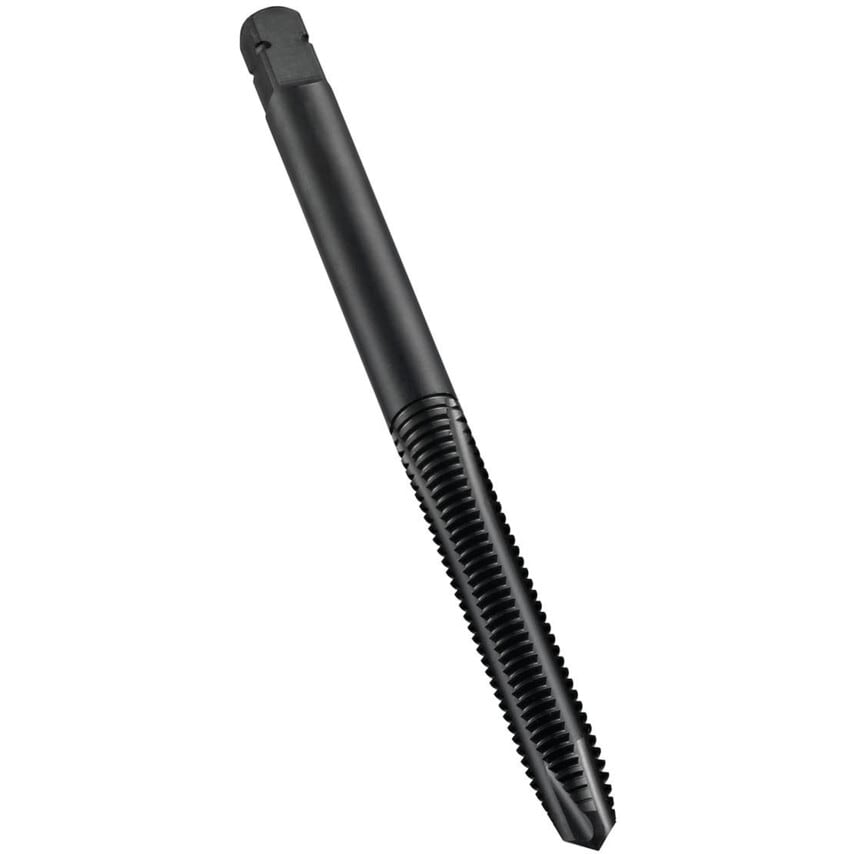

Series E534 HSS Spiral Point Taps - BSW
Steam tempered finish spiral point machine taps.
Through hole. Chamfer No.B. Medium thread.
Right hand cut. 2.5xD.
Manufactured to ISO529.
| Dimensions Standard | ISO 529 |
| Series | E534 |
| Square Width | 4.0mm |
| Thread Standard | BSW |
| Material | HSS |
| Shank Diameter | 5.0mm |
| Number of Flutes | 3 |
| Teeth per Inch | 24 |
| Thread Size | Mar-16in |
| Thread Direction | Right Hand |
| Thread Length | 11.0mm |
| Overall Length | 58.0mm |
| Material Grade | M2 |
| MFR Part No. | E5343/16 |
| Finish/Coating | Steam Tempered |
| Tap Type | Spiral Point |
| Pitch | 24 |
| Helix Angle | Medium |
