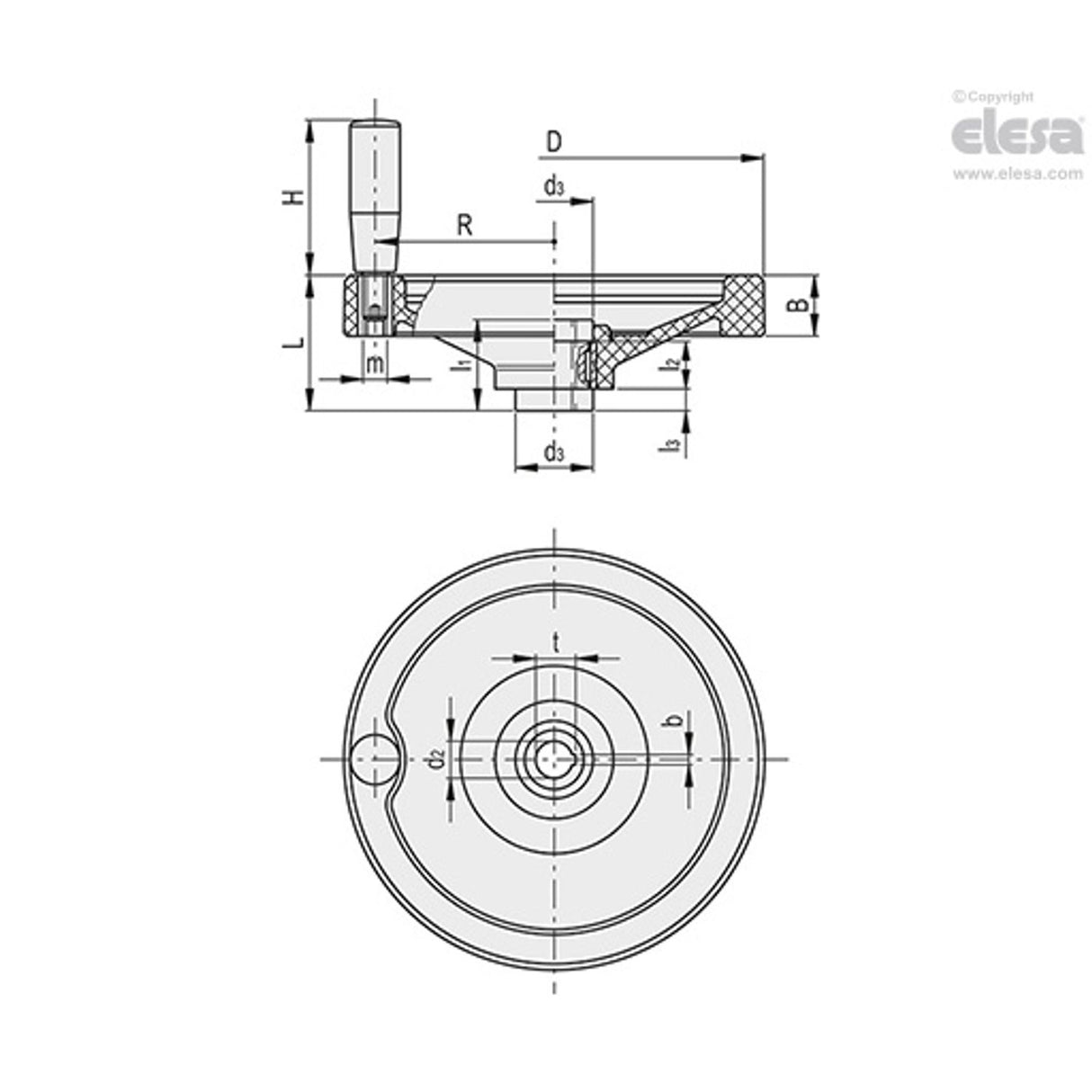

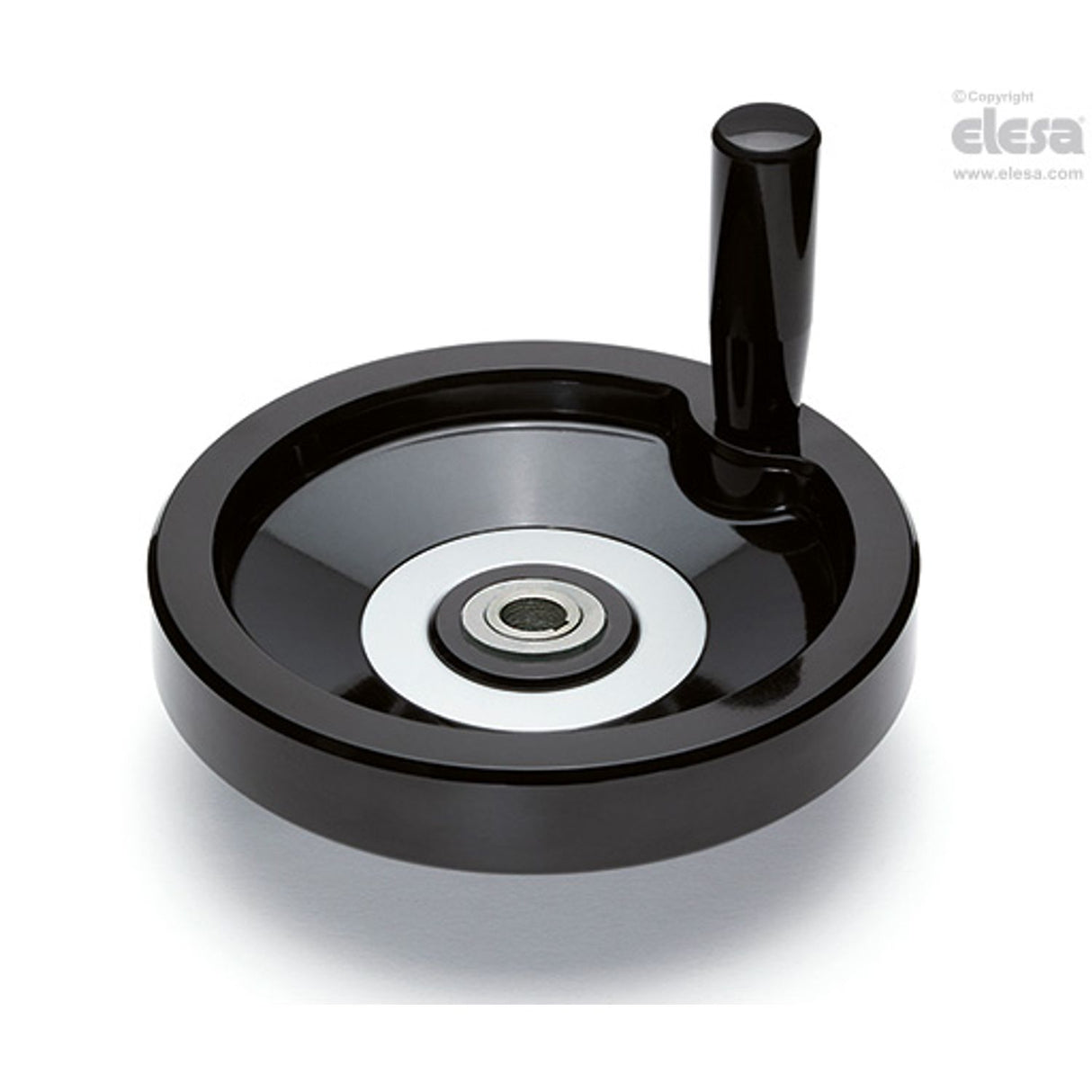

VDN.FP+I+ST Safety solid handwheels, Duroplast For product drawing and dimensions refer to pdf Item data sheet.
| w min | 4 |
| b | 6 |
| Diameter | 249mm |
| L | 82 |
| D | 249 |
| t | 23.7 |
| m | M10 |
| l1 | 54 |
| MFR Part No. | VDN.250 FP+I+ST22 |
| d4 max | 30 |
| d2 H7 | 22 |
| R | 106 |
| H | 90 |
| d3 | 46 |
| d6 | 41 -0.05 |
| B | 36 |
| Weight | 2138g |
| l3 | 13 |
