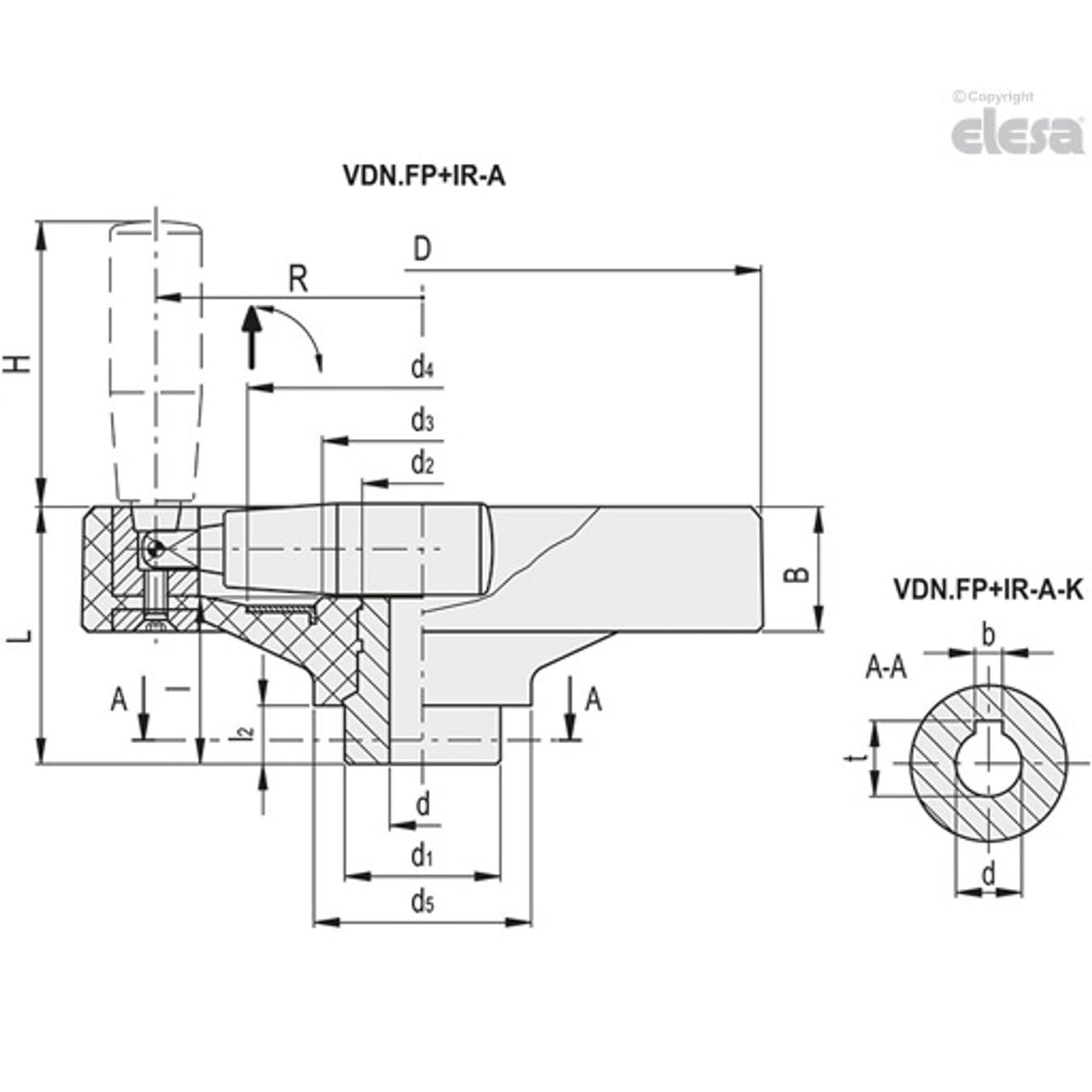

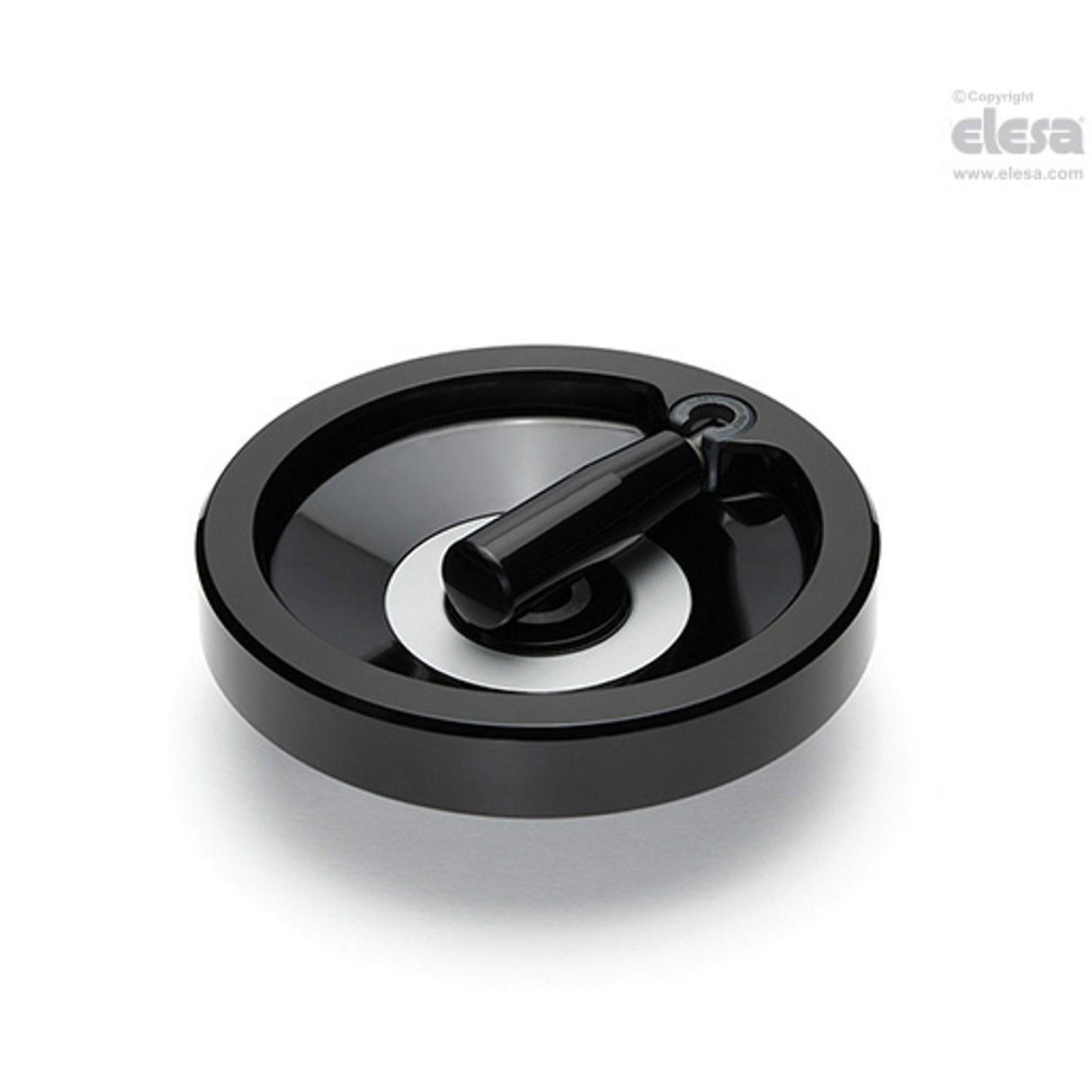

VDN.FP Solid handwheels, Duroplast, steel hub, Fold-away handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| Weight | 2975g |
| B | 36 |
| d5 | 82 |
| L# | 35J |
| d(H7) | 26 |
| d4 | 148 |
| H | 90 |
| l | 56 |
| d2 | 58 |
| MFR Part No. | VDN.300 FP+IR-A26 |
| l2 | 18 |
| D | 301 |
| C# | 1100Nm |
| L | 87 |
| d1 | 58 |
| R | 124 |
| d3 | 94 |
| Diameter | 301mm |
