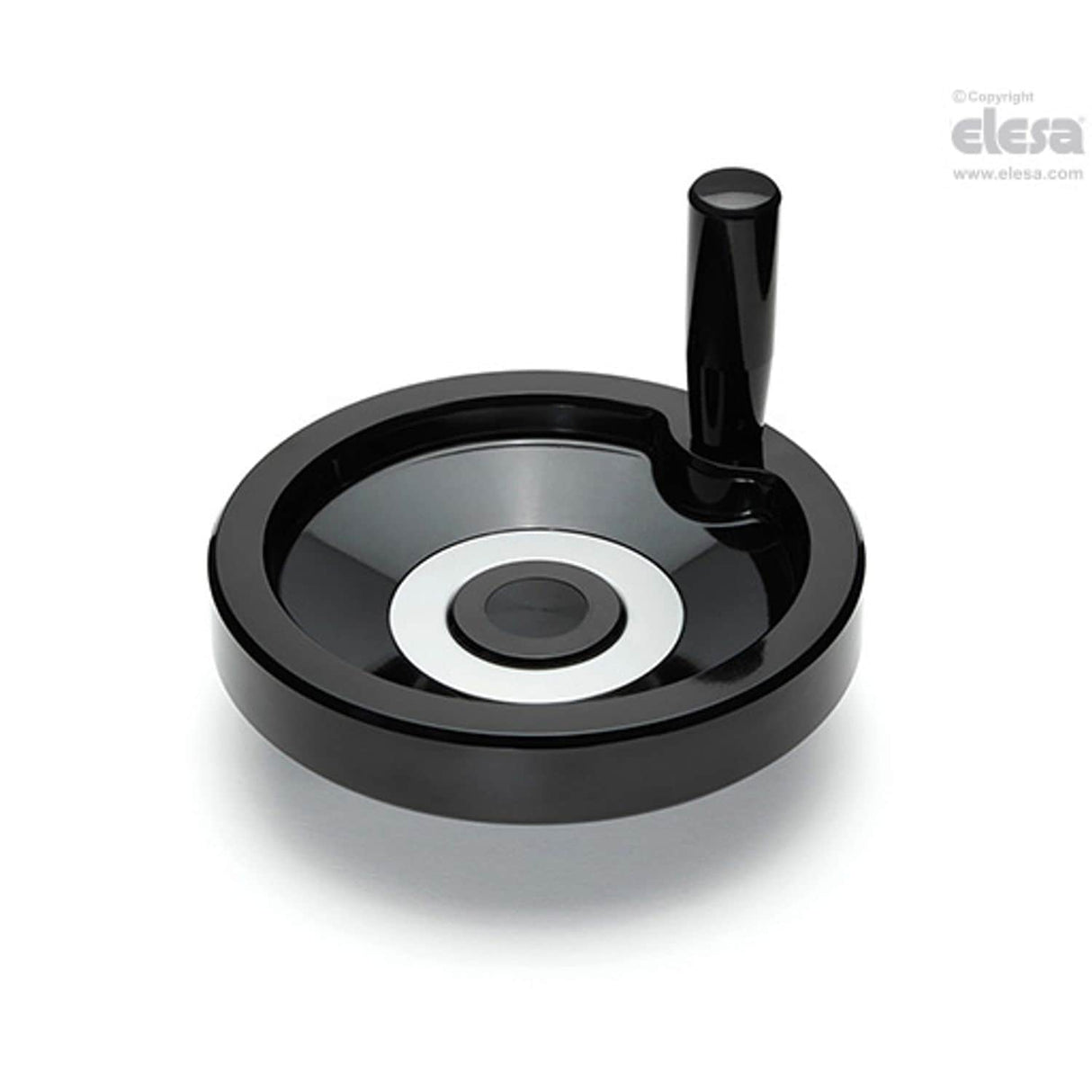

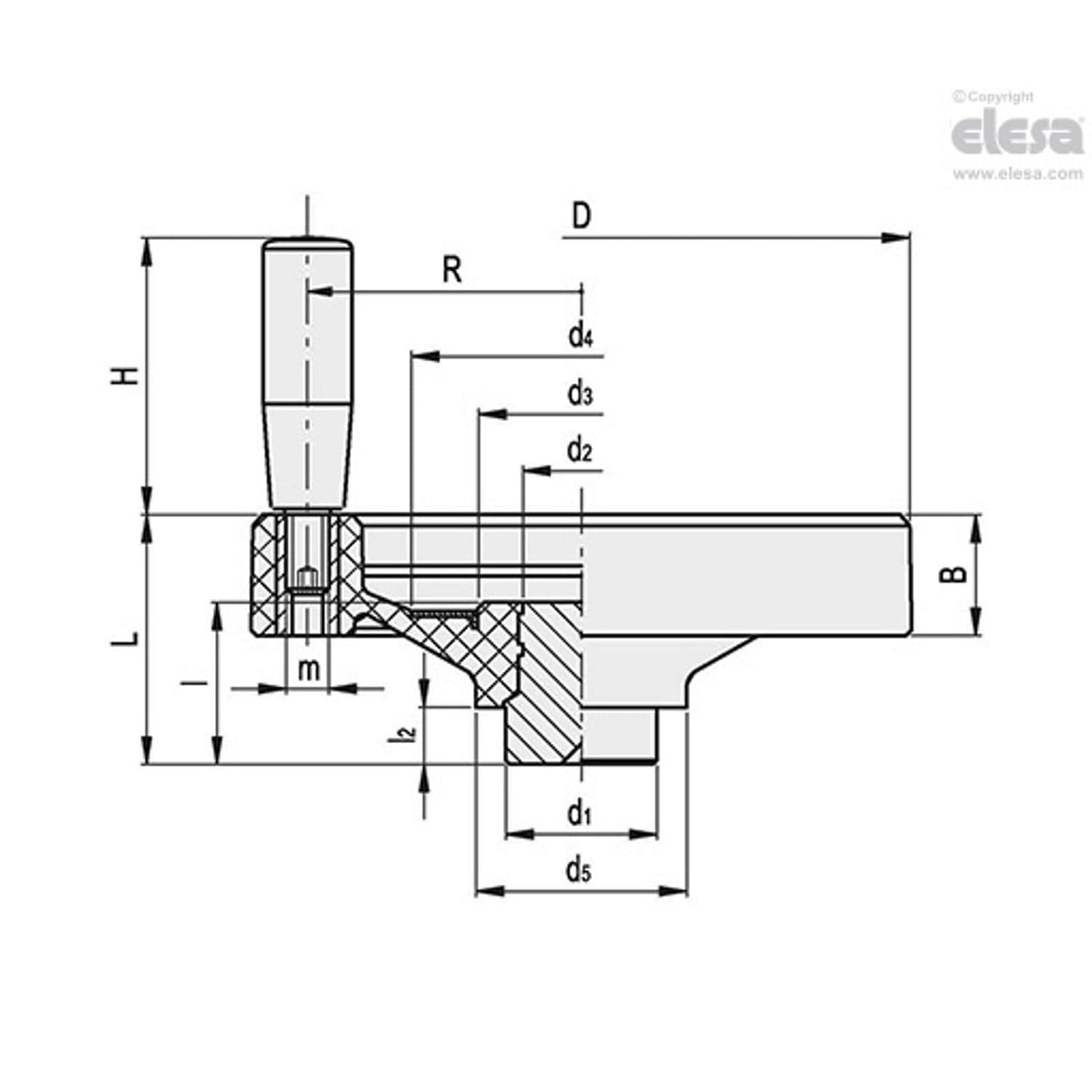

VDN.FP Solid handwheels, Duroplast, steel hub, Revolving handle, solid hub For product drawing and dimensions refer to pdf Item data sheet.
| B | 38 |
| l2 | 18 |
| H | 102 |
| L | 92 |
| l | 56 |
| Weight | 4388g |
| Diameter | 350mm |
| m | M10 |
| L# | 36J |
| d3 | 94 |
| d1 | 58 |
| d4 | 148 |
| R | 157 |
| MFR Part No. | VDN.350 FP+I |
| d2 | 58 |
| C# | 1200Nm |
| d5 | 90 |
| D | 350 |
