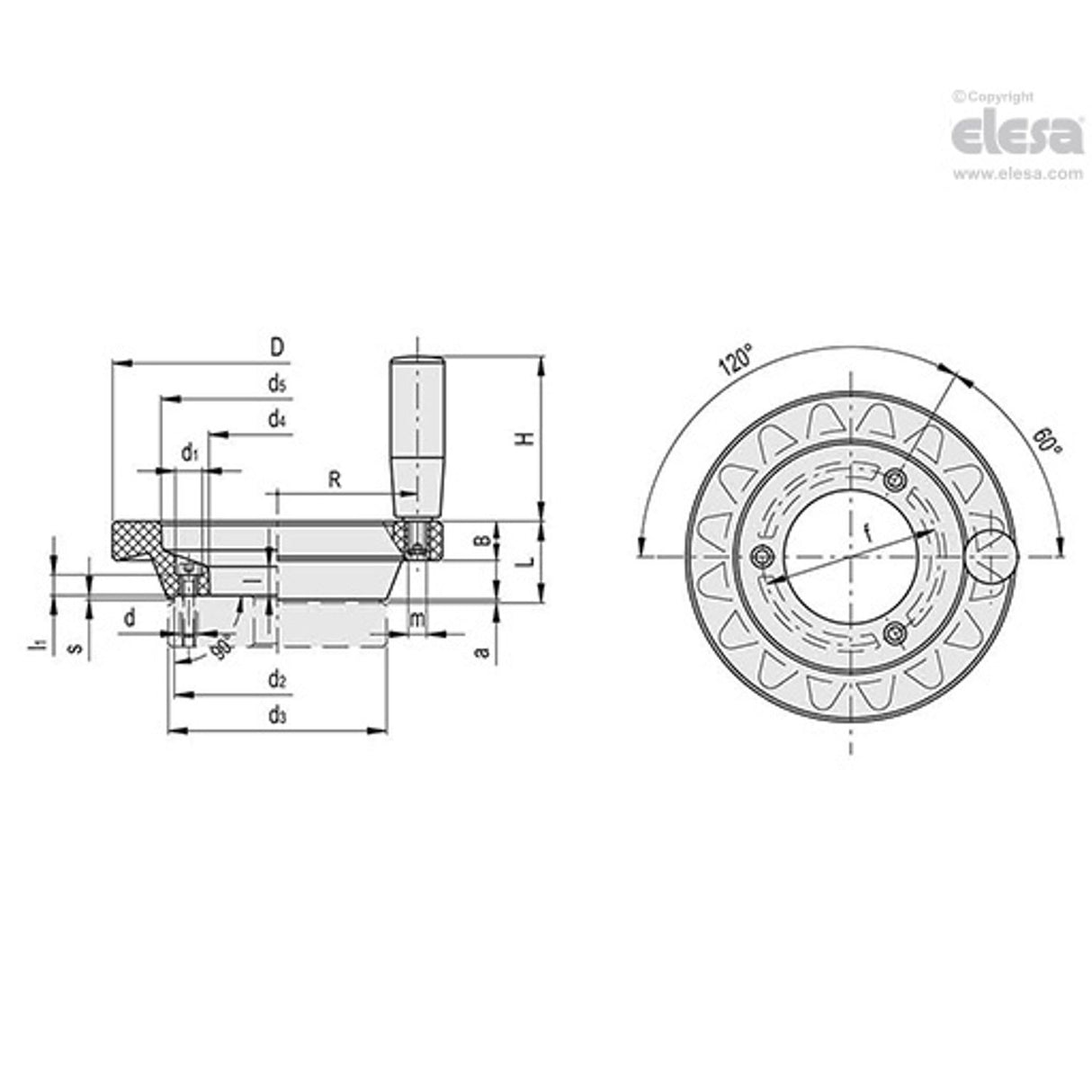

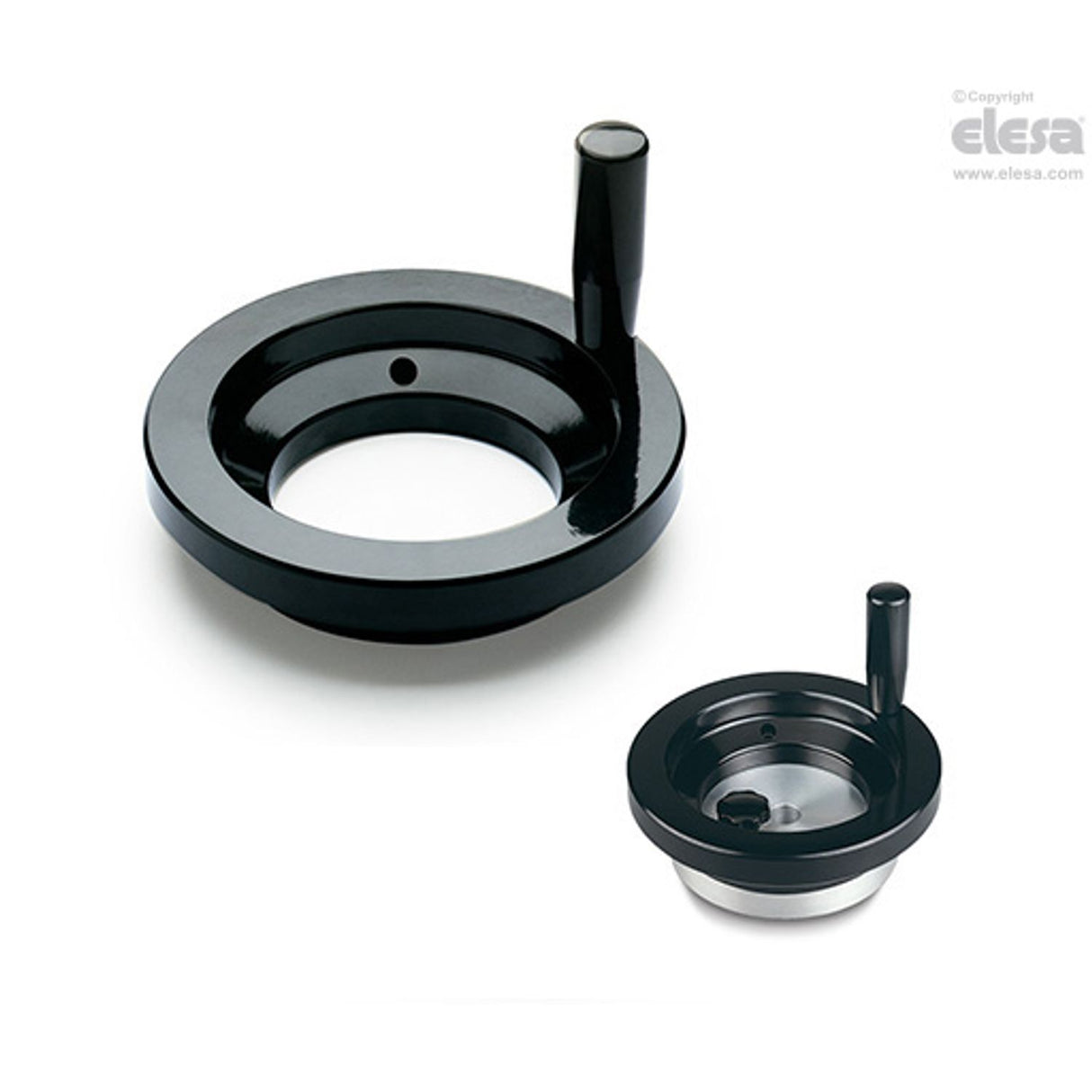

VDA+I Handwheels for metal flanges, Duroplast For product drawing and dimensions refer to pdf Item data sheet.
| Weight | 533g |
| d1 | 10.5 |
| d5 | 110 |
| D | 160 |
| MFR Part No. | VDA.160+I |
| Diameter | 160mm |
| L | 38 |
| f | 86 |
| a | 0.5 |
| H | 80 |
| d2 +0.2 | 100 |
| R | 68 |
| s-0.2 | 2 |
| d | 6.5 |
| l1 | 10 |
| m | M8 |
| l | 16 |
| B | 19 |
| d3 | 106 |
| d4 | 65 |
