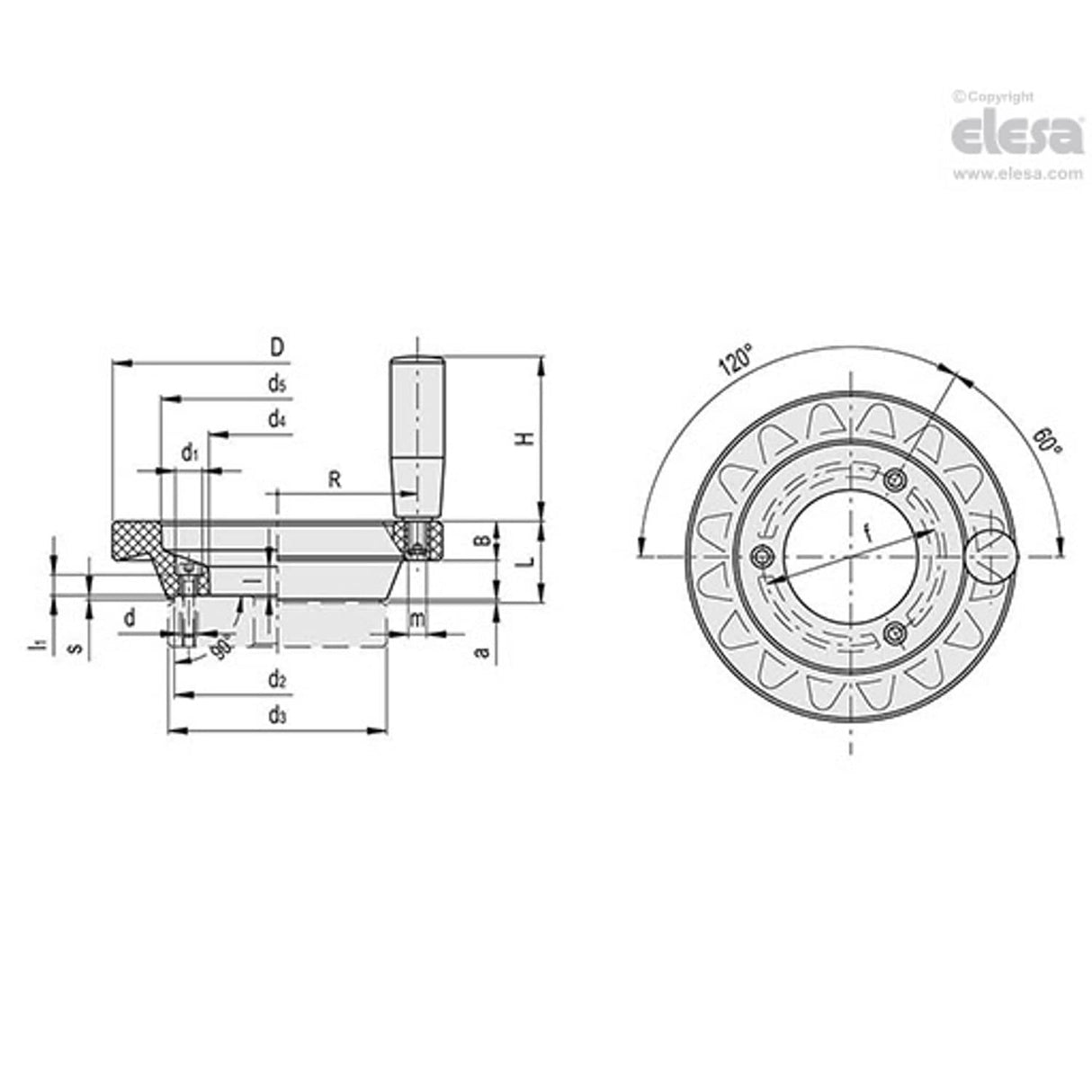

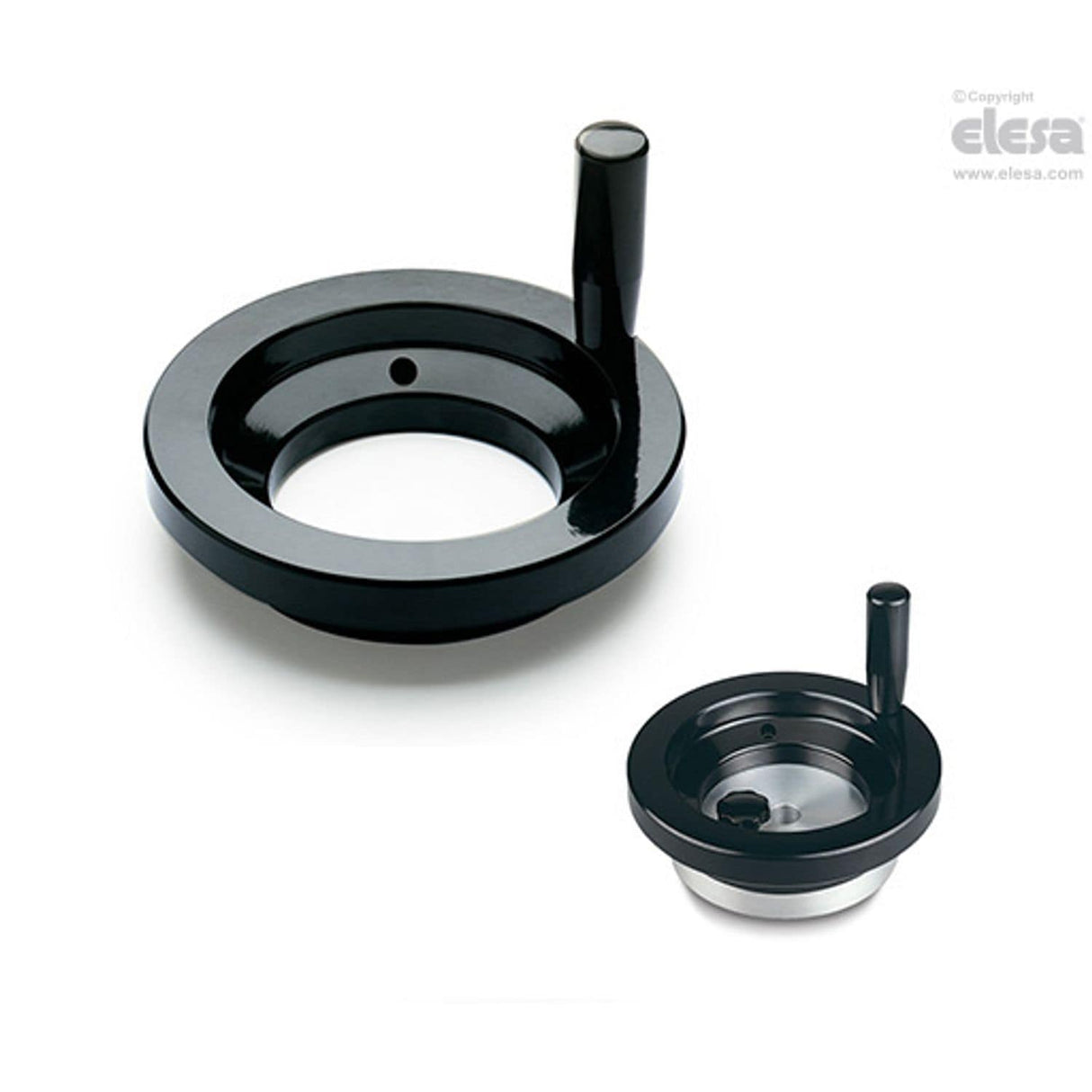

VDA+I Handwheels for metal flanges, Duroplast For product drawing and dimensions refer to pdf Item data sheet.
| f | 127 |
| d4 | 108 |
| H | 90 |
| d5 | 147 |
| d3 | 152 |
| R | 87 |
| d2 +0.2 | 142.5 |
| l | 16 |
| Weight | 874g |
| Diameter | 200mm |
| D | 200 |
| s-0.2 | 2.5 |
| l1 | 13 |
| a | 0.5 |
| m | M10 |
| B | 24 |
| d | 6.5 |
| L | 48 |
| MFR Part No. | VDA.200+I |
| d1 | 10.5 |
